Raybestos

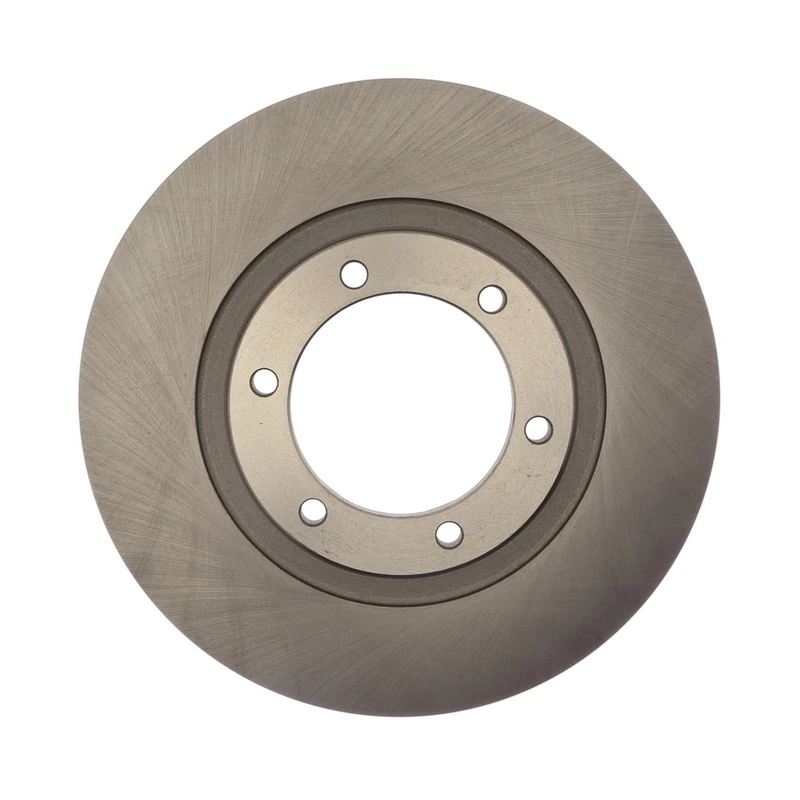

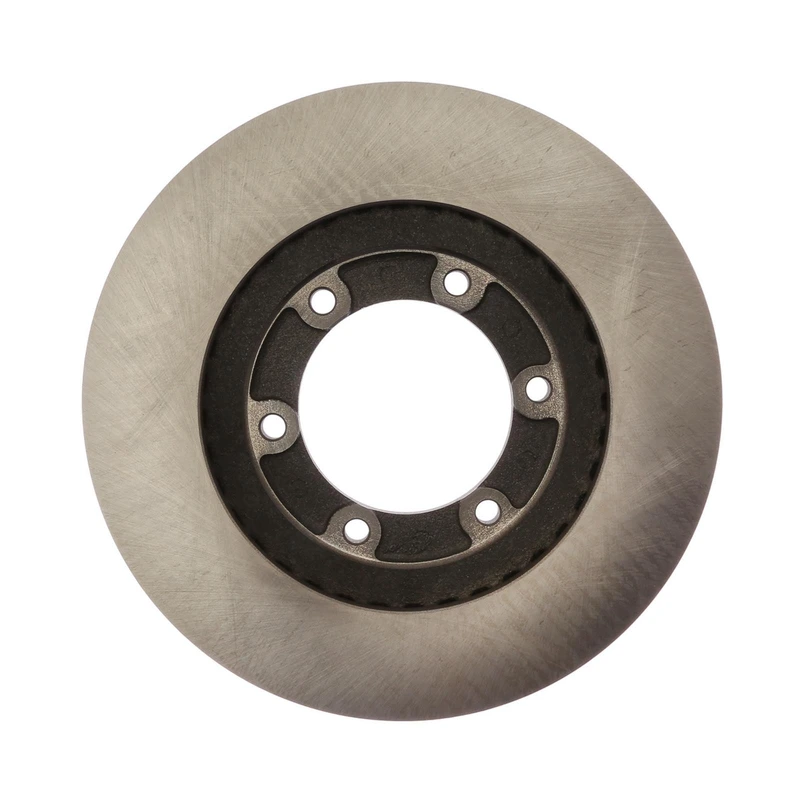

Raybestos 96091R Brake Rotor Front Side

Part # 96091R
Item # 1000RAUC
$62.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.663
Center Hole Diameter (mm)
93.05
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.787
Discard Thickness (mm)
20
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.567
Mounting Bolt Hole Circle Diameter (mm)
116
Mounting Bolt Hole Diameter (in)
0.402
Mounting Bolt Hole Diameter (mm)
10.2
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
0.865
Nominal Thickness (mm)
21.95
Outside Diameter (in)
10.7
Outside Diameter (mm)
271.8
Overall Height (in)
0.97
Overall Height (mm)
24.65
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
3246, 3-246 - ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
BR3246, BR-3246 - DURAGO, DURA CORP, KAVO PARTS
5145, 514.5 - PILENGA, CASTING NUMBERS
UC863325X - OEM PART NUMBER, MAZDA
12145032, 121.45032 - CENTRIC PARTS, CTEK
12645032SR, 126.45032SR - STOPTECH, CENTRIC PARTS
12645032CSL, 126.45032CSL - STOPTECH, CENTRIC PARTS
BD61787 - WAGNER BRAKE, BRAKEBEST
12645032CSR, 126.45032CSR - STOPTECH, CENTRIC PARTS
12645032SL, 126.45032SL - STOPTECH, CENTRIC PARTS
141695, 14-1695 - BENDIX, ADVANCE AUTO PARTS
96091, 9-6091 - RAYBESTOS BRAKES, BRAKEBEST
8914032, 89-14032 - DELTA, AMERICAN REMANUFACTURED
61787, 61-787 - PARTS MASTER, AUTOXTRA
5261787, 52-61787 - GUARDIAN, WAGNER BRAKE
78914032, 789-14032 - DELTA, AMERICAN REMANUFACTURED
96091R - RAYBESTOS BRAKES, BRAKEBEST
12145302, 121.45302 - CENTRIC PARTS
AX3246 - AUTOXTRA
3246DG - AUTOZONE
96091RGS - BRAKEBEST
GR850 - GIRLING
BR1641 - MIDAS
8096091 - AUTOXTRA
JBR541 - AUTOSPECIALTY
78888 - AUTOPAR
P61787 - PARTS MASTER
51802 - GREN
RB648 - DELPHI
210464C, 210464-C - CASTING NUMBERS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Mazda
1987 - 1993MazdaB2600
