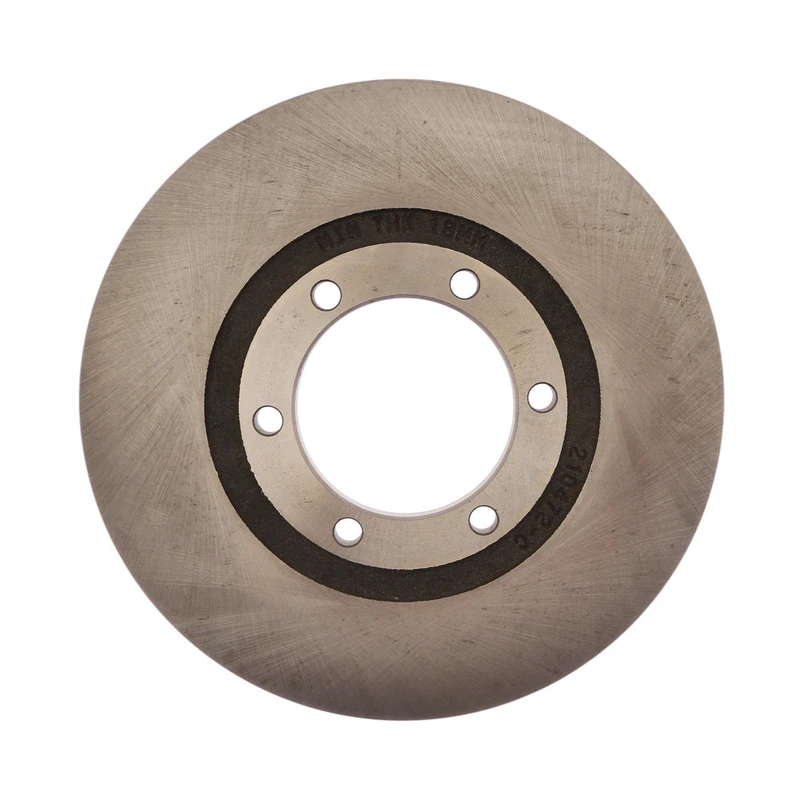

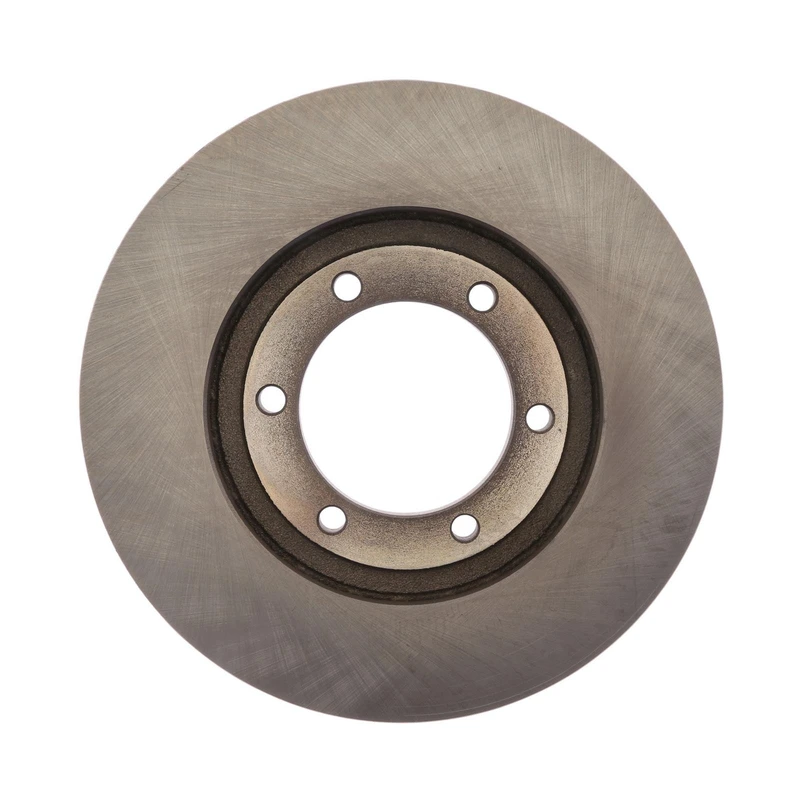

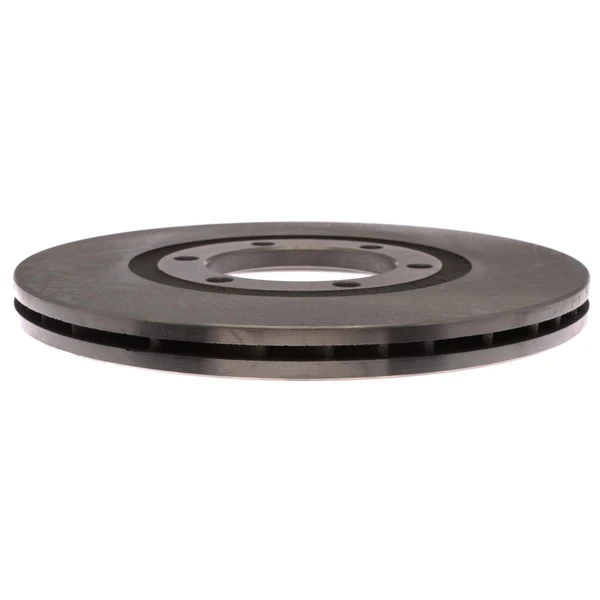

Raybestos 96013R Brake Rotor Front Side
Part # 96013R
Item # 1000R538
$41.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 3.388
- Center Hole Diameter (mm)
- 86.05
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 0.709
- Discard Thickness (mm)
- 18
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.25
- Mounting Bolt Hole Circle Diameter (mm)
- 107.95
- Mounting Bolt Hole Diameter (in)
- 4.25
- Mounting Bolt Hole Diameter (mm)
- 107.95
- Mounting Bolt Hole Quantity
- 6
- Nominal Thickness (in)
- 0.785
- Nominal Thickness (mm)
- 19.95
- Outside Diameter (in)
- 10.08
- Outside Diameter (mm)
- 256.05
- Overall Height (in)
- 0.785
- Overall Height (mm)
- 19.95
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Solid
- Stud/Lug Hole Quantity
- 6
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
3140, 314.0 - DURALAST, ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
31401, 31-401 - DURALAST, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, CASTING NUMBERS, GREN, AIMCO, MIGHTY DISTRIBUTING SYSTEM
442358 - WINHERE, NISSAN, PERFECT STOP
UB3933251A, UB39-33-251A - OEM PART NUMBER, MAZDA, DAYTON WALTHER
UB3933251, UB39- 33- 251, UB39-33-251 - OEM PART NUMBER, MAZDA, IMC
60820 - PARTS MASTER, FADE FREE, AUTOXTRA
BD60820 - WAGNER BRAKE, BRAKEBEST
96013R - RAYBESTOS BRAKES, BRAKEBEST
BR3140 - DURAGO, DURA CORP
12645017CSL, 126.45017CSL - STOPTECH, CENTRIC PARTS
78914017, 789-14017 - DELTA, AMERICAN REMANUFACTURED
8914017, 89-14017 - DELTA, AMERICAN REMANUFACTURED
YH141438 - CARQUEST, ADVANCE AUTO PARTS
12145017, 121.45017 - CENTRIC PARTS, CTEK
12645017SR, 126.45017SR - STOPTECH, CENTRIC PARTS
12745017L, 127.45017L - STOPTECH, CENTRIC PARTS
12645017SL, 126.45017SL - STOPTECH, CENTRIC PARTS
SB96013 - WAGNER BRAKE, SILENT STOP
96013, 9-6013 - RAYBESTOS BRAKES, BRAKEBEST
R74250, R74 250 - QUALITEE INTERNATIONAL, TRUSTAR
50202, 50-202 - PAGID RACING, GREN
12745017R, 127.45017R - STOPTECH, CENTRIC PARTS
S08333251B, S083-33-251B - OEM PART NUMBER, MAZDA
MA824, MA-824 - EUROROTOR, ULTRA BRAKE
S08333251, S083-33-251 - OEM PART NUMBER, MAZDA
12645017CSR, 126.45017CSR - STOPTECH, CENTRIC PARTS
96013RGS - RAYBESTOS BRAKES, BRAKEBEST
5260820, 52-60820 - GUARDIAN, WAGNER BRAKE
34010883 - BOSCH, BRAKEBEST
141438, 14-1438, 141-438 - BENDIX, ADVANCE AUTO PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Mazda
| 1987 - 1993 | Mazda | B2200 |
| 1987 - 1993 | Mazda | B2600 |
| 1986 - 1987 | Mazda | B2000 |
