Raybestos

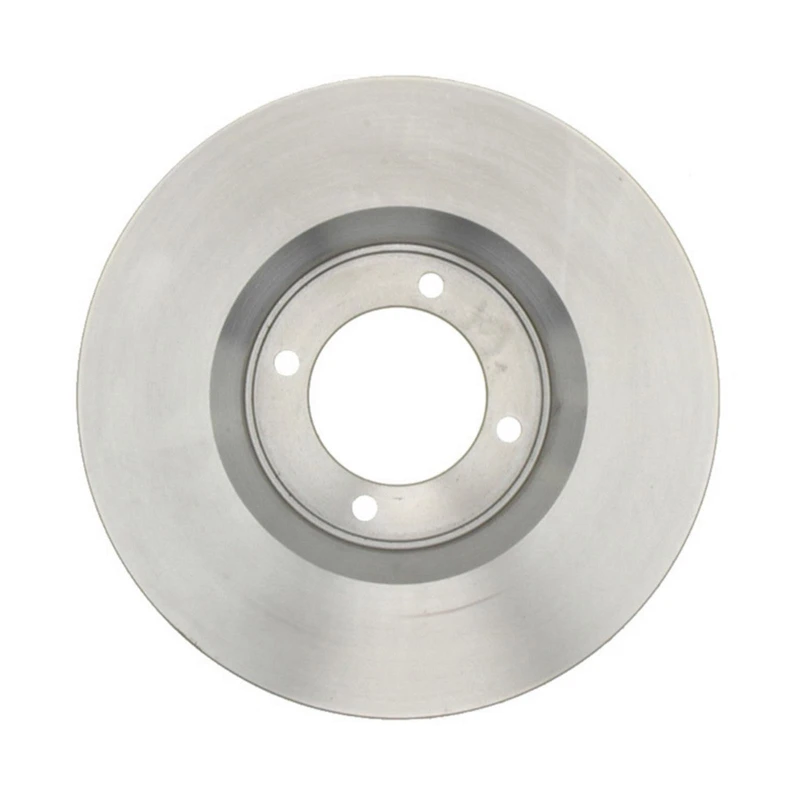

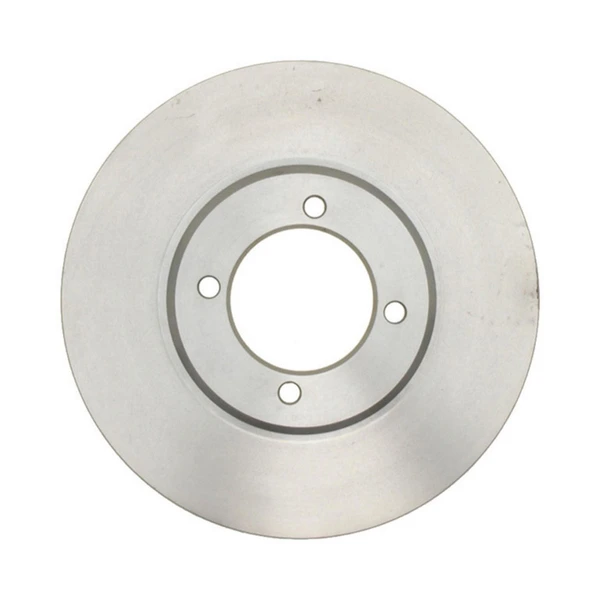

Raybestos 9248R Brake Rotor Front Side

Part # 9248R
Item # 100183Z6
$68.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Center Hole Diameter (in)
2.992
Center Hole Diameter (mm)
76
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.453
Discard Thickness (mm)
11.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.937
Mounting Bolt Hole Circle Diameter (mm)
100
Mounting Bolt Hole Diameter (in)
0.411
Mounting Bolt Hole Diameter (mm)
10.45
Mounting Bolt Hole Quantity
4
Nominal Thickness (in)
0.492
Nominal Thickness (mm)
12.5
Outside Diameter (in)
10.475
Outside Diameter (mm)
266.05
Overall Height (in)
1.65
Overall Height (mm)
41.9
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
4
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
3117, 31-17 - ROCKHILL, QUALITY BRAND, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
12144010, 121.44010 - CANADIAN TIRE, AUTOZONE, CENTRIC PARTS, CTEK
9248 - CENTURY, RAYBESTOS BRAKES, BRAKEBEST
1601513 - BAP GEON, ITM ENGINE COMPONENTS
60511 - PARTS MASTER, AUTOXTRA
25024, 2-5024 - BREMBO, AUTOPAR
D7090 - EBC BRAKES, DAYTON WALTHER
12144009, 121.44009 - CENTRIC PARTS, CTEK
9248R - RAYBESTOS BRAKES, BRAKEBEST
141108, 14-1108 - BENDIX, ADVANCE AUTO PARTS
BD60511 - WAGNER BRAKE, BRAKEBEST
BR3117 - DURAGO, DURA CORP
TR8 - SANYO, MOUNTAIN OFFROAD ENTERPRISES
11257 - FRATELLI POLETTI, TEKNOMAC
10401, 104-01 - GREN, LEMFORDER
YH141108 - ADVANCE AUTO PARTS
12044009, 120.44009 - CENTRIC PARTS
90005, 900-05 - NORRBIT
107170, 107.170 - UNIVERSAL
W70150, W70-150 - WORLDPARTS
479080 - TRUSTAR
4351222030 - TOYOTA
4350229015 - TOYOTA
R69 - CERTIFIED DIVISION
TY021P - INTERBRAKES
JBR148 - AUTOSPECIALTY
JBR144 - AUTOSPECIALTY
TO603 - EUROROTOR
0855690, 085-5690 - AXXIS
14857 - KELSEY HAYES

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Toyota
1971 - 1971ToyotaCrown
1972 - 1972ToyotaCorona
1972 - 1972ToyotaCorona
1972 - 1976ToyotaMark II
1974 - 1974ToyotaCorona
1975 - 1982ToyotaCorona
1978 - 1980ToyotaCressida
