Raybestos

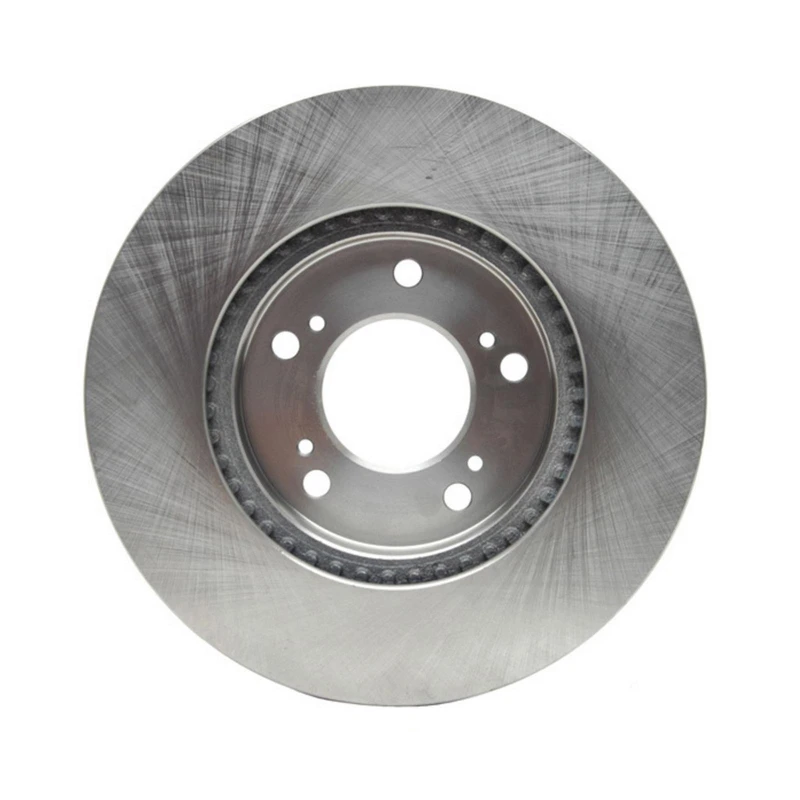

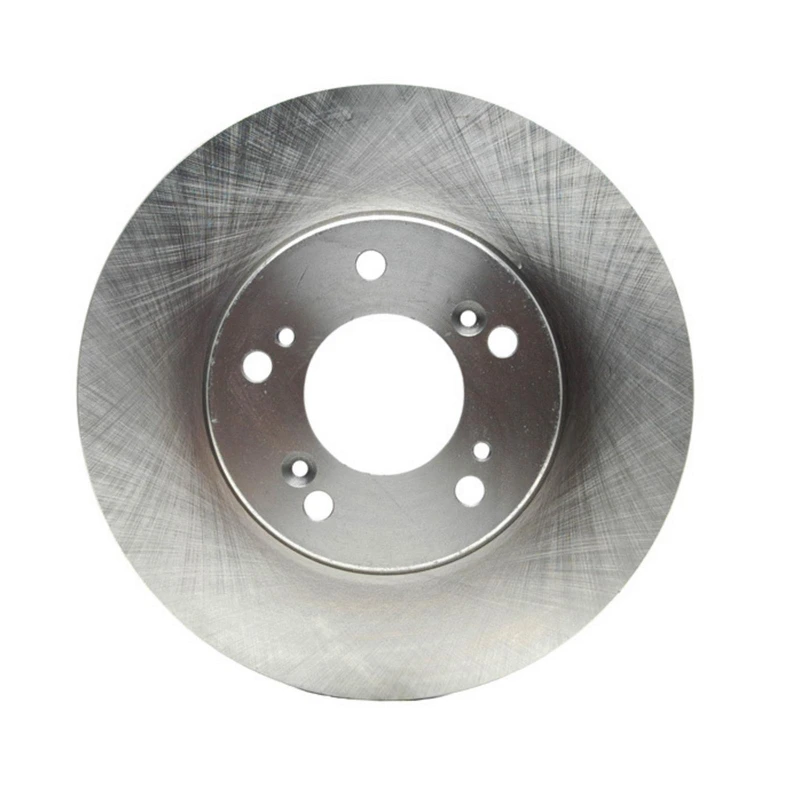

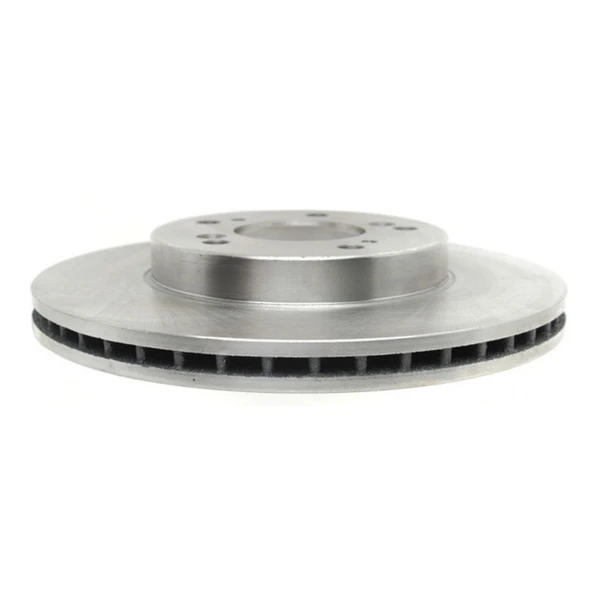

Raybestos 9177R Brake Rotor Front Side

Part # 9177R
Item # 1000RDQ1
$51.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.76
Center Hole Diameter (mm)
70.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.827
Discard Thickness (mm)
21
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.5
Mounting Bolt Hole Diameter (mm)
12.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.905
Nominal Thickness (mm)
23
Outside Diameter (in)
11.08
Outside Diameter (mm)
281.45
Overall Height (in)
1.85
Overall Height (mm)
47
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
9177R
080-2433
083-2433
083-2719
083-2734
09.6893.10
115960
120.40026
120.40026CRY
121.40026
125.40026
125219
125518
126.40026CSL
126.40026CSR
126.40026SL
126.40026SR
127.40026CL
127.40026CR
127.40026L
127.40026R
128.40026CL
128.40026CR
128.40026L
128.40026R
14-3296
141513
1601010
210514-C
227.40026L

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Acura
Honda
Isuzu
1991 - 1992AcuraLegend
1993 - 1993AcuraLegend
1993 - 1995AcuraLegend
1993 - 1995AcuraLegend
1995 - 1995AcuraLegend
1996 - 1998AcuraRL
1996 - 1998AcuraTL
1997 - 1998AcuraIntegra
2000 - 2001AcuraIntegra
1995 - 1998HondaOdyssey
1997 - 2001HondaCR-V
1997 - 2001HondaPrelude
1996 - 1999IsuzuOasis
