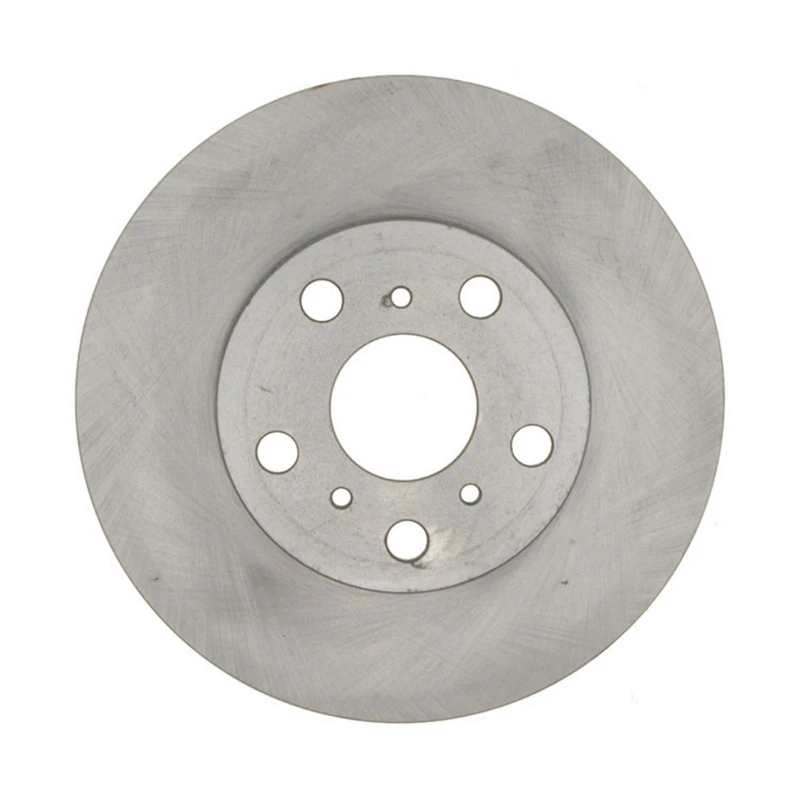

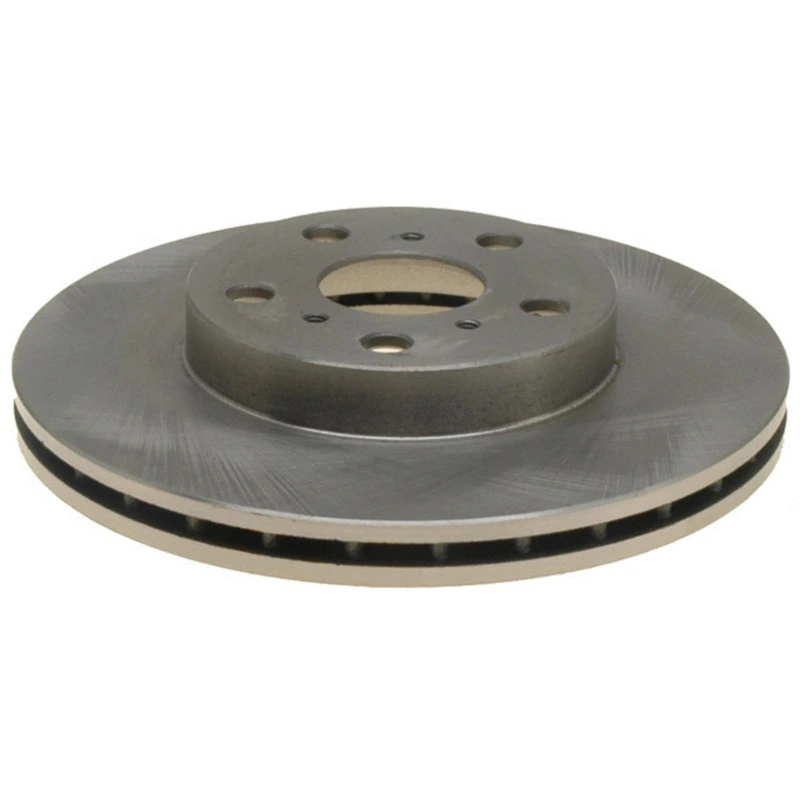

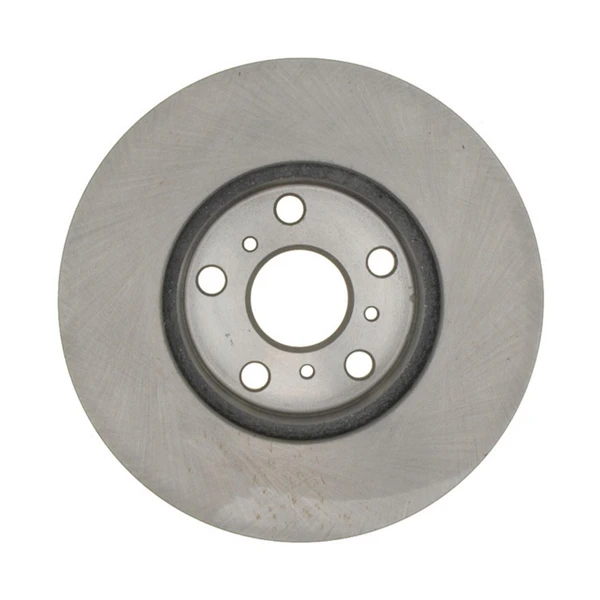

Raybestos 9166R Brake Rotor Front Side
Part # 9166R
Item # 1000REVC
$66.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 3.035
- Center Hole Diameter (mm)
- 77.1
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 0.787
- Discard Thickness (mm)
- 20
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.5
- Mounting Bolt Hole Circle Diameter (mm)
- 114.3
- Mounting Bolt Hole Diameter (in)
- 0.492
- Mounting Bolt Hole Diameter (mm)
- 12.5
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.865
- Nominal Thickness (mm)
- 21.95
- Outside Diameter (in)
- 10.86
- Outside Diameter (mm)
- 275.85
- Overall Height (in)
- 2.56
- Overall Height (mm)
- 65
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Solid
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
3194 - ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, BENDIX, QUALIS, STANDARD ROTORS AND DRUMS
FB0533251, FB05 33 251 - OEM PART NUMBER, MAZDA, IMC, DAYTON WALTHER
12145022, 121.45022 - CANADIAN TIRE, CENTRIC PARTS, WAGNER BRAKE, CTEK
BD60870 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
9166RGS - RAYBESTOS BRAKES, BRAKEBEST
60870 - PARTS MASTER, AUTOXTRA
12745022CR, 127.45022CR - STOPTECH, CENTRIC PARTS
78914022, 789-14022 - DELTA, AMERICAN REMANUFACTURED
141737, 141-737 - BENDIX, ADVANCE AUTO PARTS
12745022CL, 127.45022CL - STOPTECH, CENTRIC PARTS
9166R - RAYBESTOS BRAKES, BRAKEBEST
9166, 9-166 - RAYBESTOS BRAKES, BRAKEBEST
12645022SR, 126.45022SR - STOPTECH, CENTRIC PARTS
12645022SL, 126.45022SL - STOPTECH, CENTRIC PARTS
12745022R, 127.45022R - STOPTECH, CENTRIC PARTS
12645022CSL, 126.45022CSL - STOPTECH, CENTRIC PARTS
25362 - BREMBO, AUTOPAR
51302, 5-1302 - GREN, ULTRA BRAKE
12745022L, 127.45022L - STOPTECH, CENTRIC PARTS
12645022CSR, 126.45022CSR - STOPTECH, CENTRIC PARTS
8914022, 89-14022 - DELTA, AMERICAN REMANUFACTURED
BR3194 - DURAGO, DURA CORP
12845022R, 128.45022R - STOPTECH, CENTRIC PARTS
12845022CR, 128.45022CR - STOPTECH, CENTRIC PARTS
12845022L, 128.45022L - STOPTECH, CENTRIC PARTS
12845022CL, 128.45022CL - STOPTECH, CENTRIC PARTS
MZ481V - INTERBRAKES
BR1564 - MIDAS
BR1565 - MIDAS
JBR381 - AUTOSPECIALTY
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Mazda
| 1986 - 1988 | Mazda | RX-7 |
| 1989 - 1991 | Mazda | RX-7 |
