Raybestos

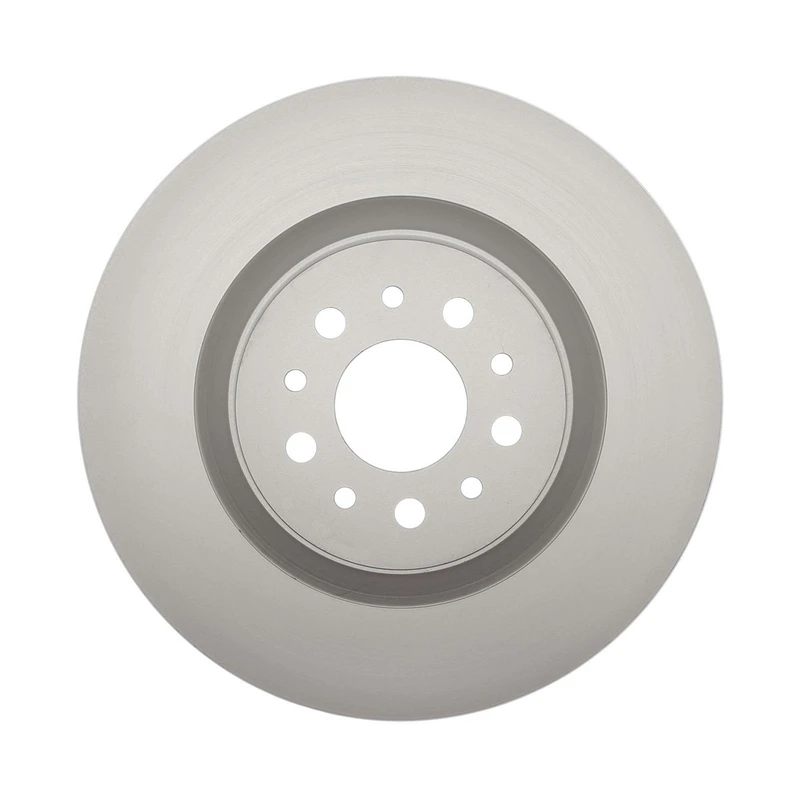

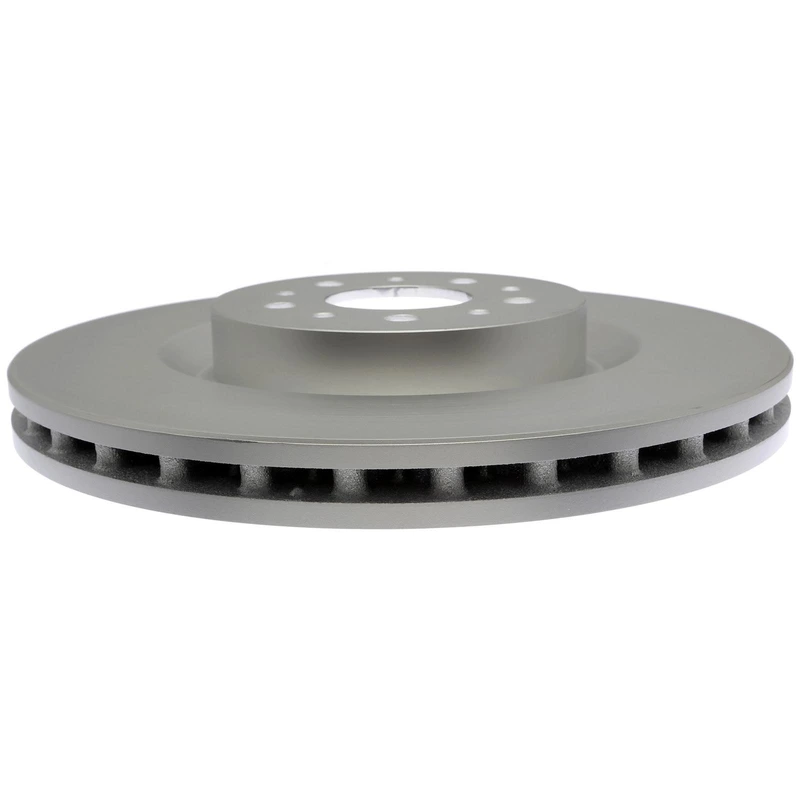

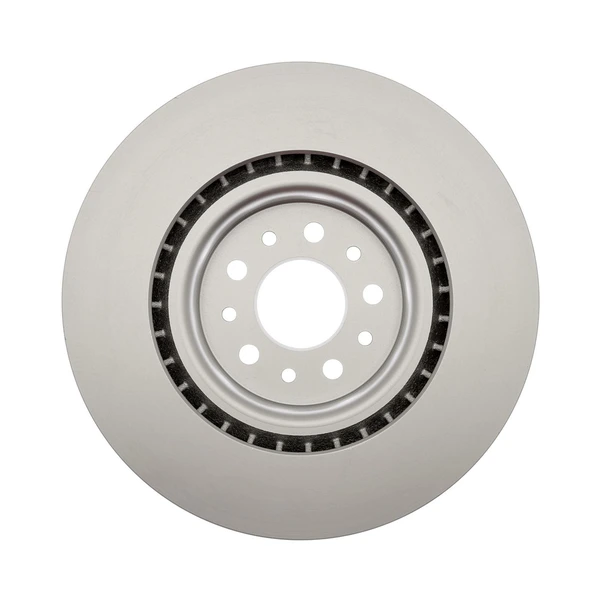

Raybestos 781950 Brake Rotor Front Side

Part # 781950
Item # 1000W8PQ
$105.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.32
Center Hole Diameter (mm)
58.95
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.004
Discard Thickness (mm)
25.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.61
Inside Diameter (mm)
193.3
Mounting Bolt Hole Circle Diameter (in)
3.858
Mounting Bolt Hole Circle Diameter (mm)
98
Mounting Bolt Hole Diameter (in)
0.517
Mounting Bolt Hole Diameter (mm)
13.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.102
Nominal Thickness (mm)
28
Outside Diameter (in)
12.008
Outside Diameter (mm)
305
Overall Height (in)
1.802
Overall Height (mm)
45.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
68276444AA, 68276 444AA - OEM PART NUMBER, CHRYSLER, MOPAR, RAM
12163090, 121.63090 - CANADIAN TIRE, CENTRIC PARTS, CTEK
43200 - CANADIAN TIRE, AUTOZONE, QUALIS
BR901612 - DURAGO, DURA CORP
781950, 781.950 - RAYBESTOS BRAKES, BRAKEBEST
12863090R, 128.63090R - STOPTECH, CENTRIC PARTS
AX901612 - AUTO EXTRA, AUTOXTRA
12863090L, 128.63090L - STOPTECH, CENTRIC PARTS
12763090R, 127.63090R - STOPTECH, CENTRIC PARTS
12663090SL, 126.63090SL - STOPTECH, CENTRIC PARTS
YH528665P - CARQUEST, ADVANCE AUTO PARTS
12763090L, 127.63090L - STOPTECH, CENTRIC PARTS
12063090, 120.63090 - STOPTECH, CENTRIC PARTS
12663090SR, 126.63090SR - STOPTECH, CENTRIC PARTS
781950R - RAYBESTOS BRAKES, BRAKEBEST
R1612 - NEWTEK AUTOMOTIVE USA
BD180754E - WAGNER BRAKE
60040049, 600-40049 - DYNAMIC
72144 - AUTOZONE
72144DG - AUTOZONE
14630002, 14-630002, 146.30002 - PROMAX
AR8390EVC - POWERSTOP
32063090, 320.63090 - CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Ram
2015 - 2022RamProMaster City
