Raybestos

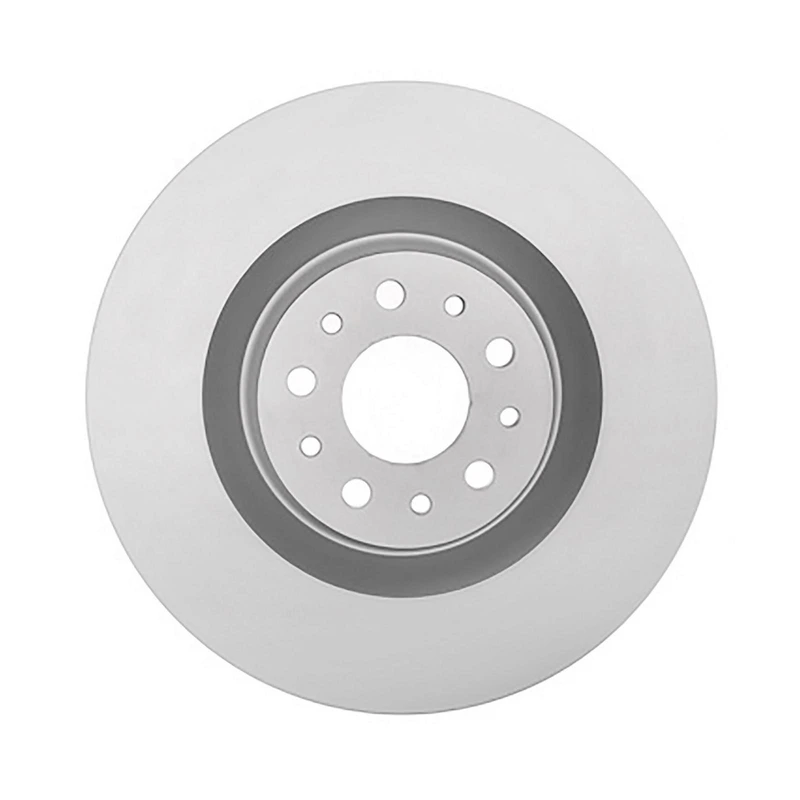

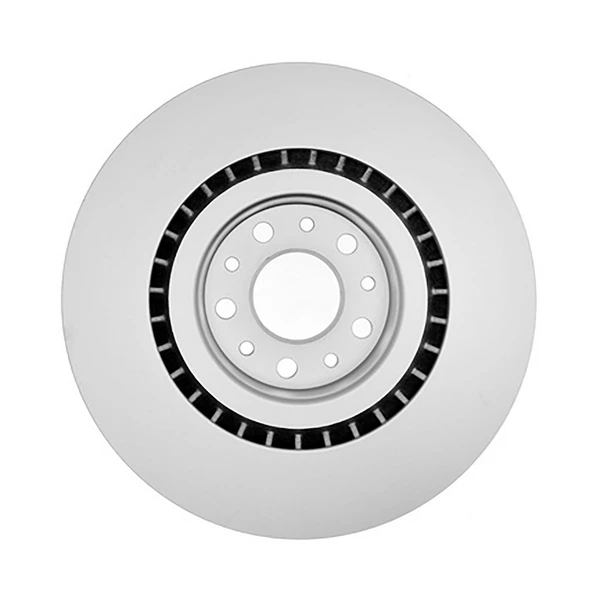

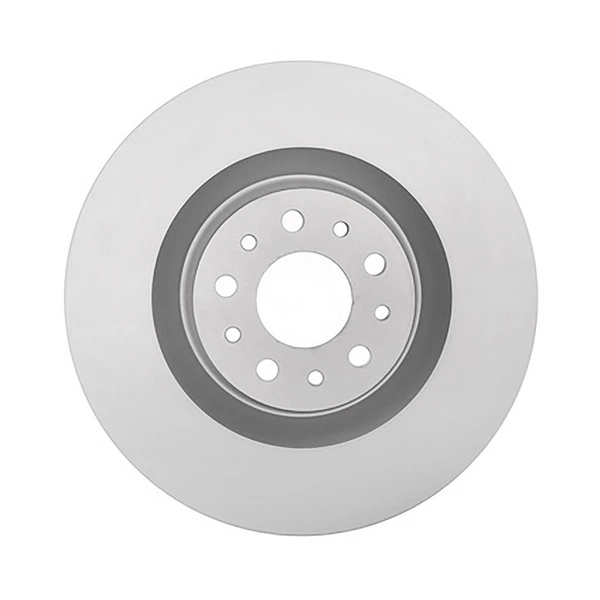

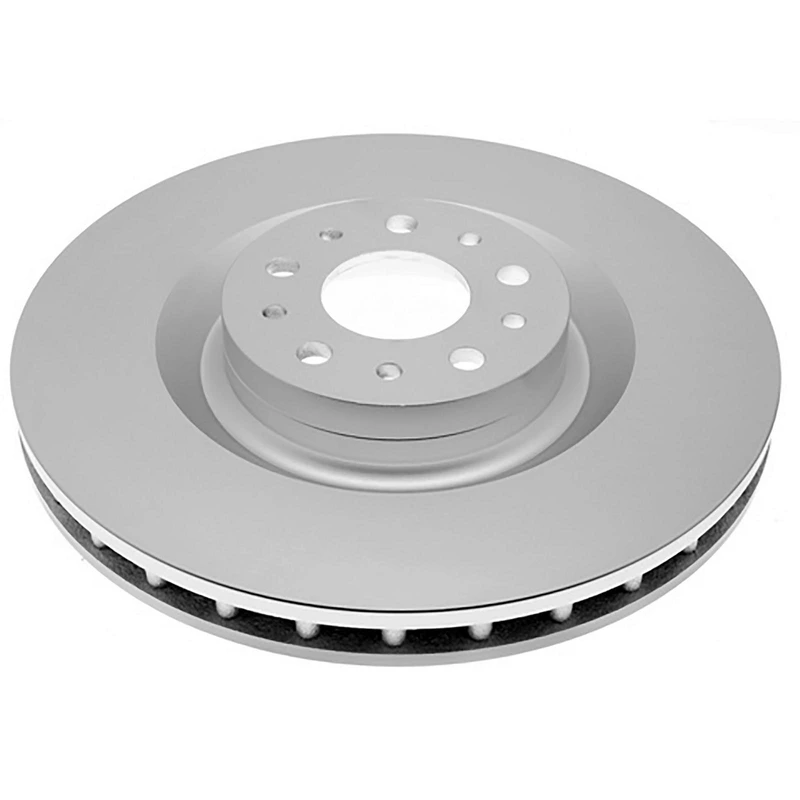

Raybestos 781770FZN Brake Rotor Front Side

Part # 781770FZN
Item # 1000VXY8
$85.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.323
Center Hole Diameter (mm)
59
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.004
Discard Thickness (mm)
25.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.598
Inside Diameter (mm)
193
Mounting Bolt Hole Circle Diameter (in)
3.858
Mounting Bolt Hole Circle Diameter (mm)
98
Mounting Bolt Hole Diameter (in)
0.516
Mounting Bolt Hole Diameter (mm)
13.1
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.104
Nominal Thickness (mm)
28.05
Outside Diameter (in)
12.008
Outside Diameter (mm)
305
Overall Height (in)
1.801
Overall Height (mm)
45.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
68201086AA, 68201 086AA - OEM PART NUMBER, FIAT, MOPAR
12104006, 121.04006 - CANADIAN TIRE, CENTRIC PARTS, CTEK
BR901326 - DURAGO, DURA CORP
45637 - CANADIAN TIRE, QUALIS
51914663, 519 1466 3 - FERRARI, FIAT
12004006, 120.04006 - STOPTECH, CENTRIC PARTS
2901326 - UAP, GEOTECH
12804006R, 128.04006R - STOPTECH, CENTRIC PARTS
YH507592P - CARQUEST, ADVANCE AUTO PARTS
12804006L, 128.04006L - STOPTECH, CENTRIC PARTS
781770R - RAYBESTOS BRAKES, BRAKEBEST
781770FZN - RAYBESTOS BRAKES, BRAKEBEST
781770 - RAYBESTOS BRAKES, BRAKEBEST
12704006R, 127.04006R - STOPTECH, CENTRIC PARTS
72116DL - DURALAST, AUTOZONE
12604006SR, 126.04006SR - STOPTECH, CENTRIC PARTS
12704006L, 127.04006L - STOPTECH, CENTRIC PARTS
12604006SL, 126.04006SL - STOPTECH, CENTRIC PARTS
72116, 7-2116, 721-16 - AUTOZONE
14620000, 14-620000 - PROMAX
SDK6706 - NAPA
72116DG - AUTOZONE
YH507592C - ADVANCE AUTO PARTS
YH507592 - ADVANCE AUTO PARTS
32004006, 320.04006 - CENTRIC PARTS
EBR1425EVC - POWERSTOP
R1326 - NEWTEK AUTOMOTIVE USA
BD180804E - WAGNER BRAKE
921360RGS - BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Fiat
2014 - 2014Fiat500L
2014 - 2014Fiat500L
2014 - 2014Fiat500L
2014 - 2014Fiat500L
2015 - 2020Fiat500L
