Raybestos

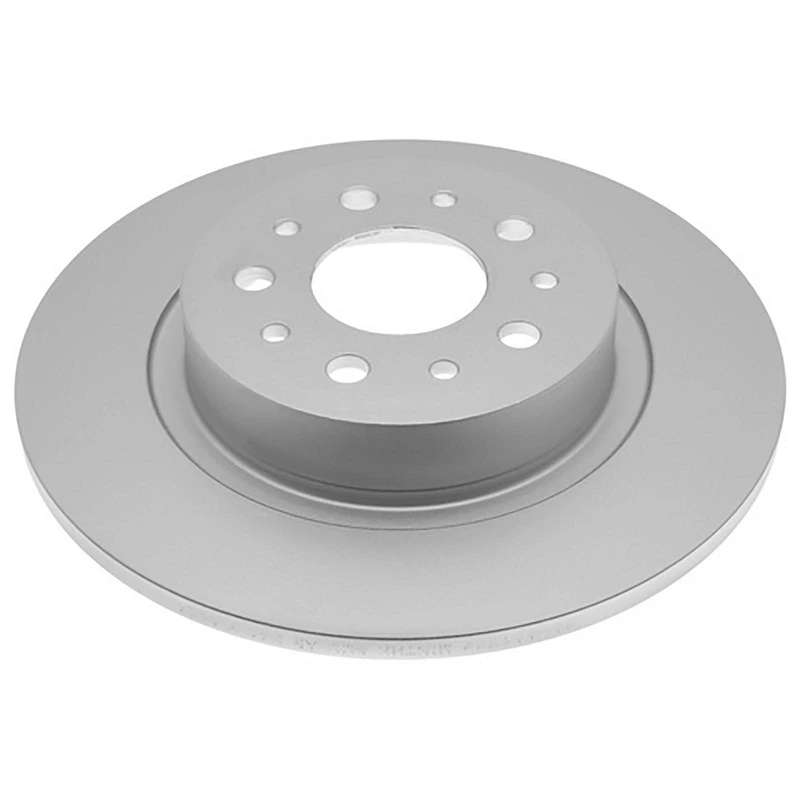

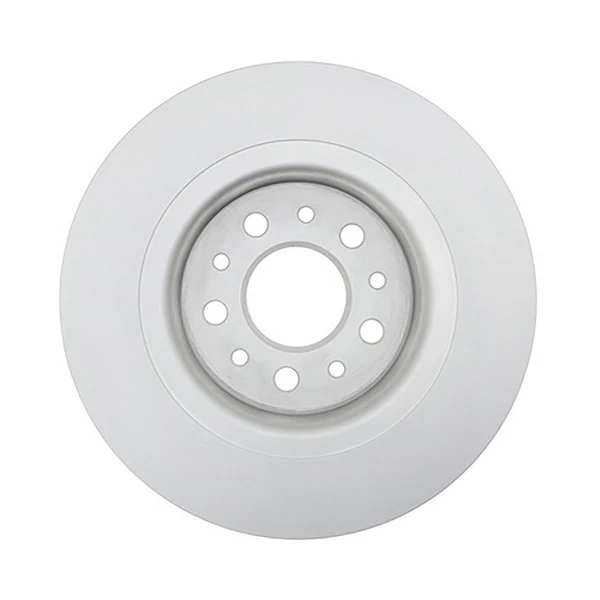

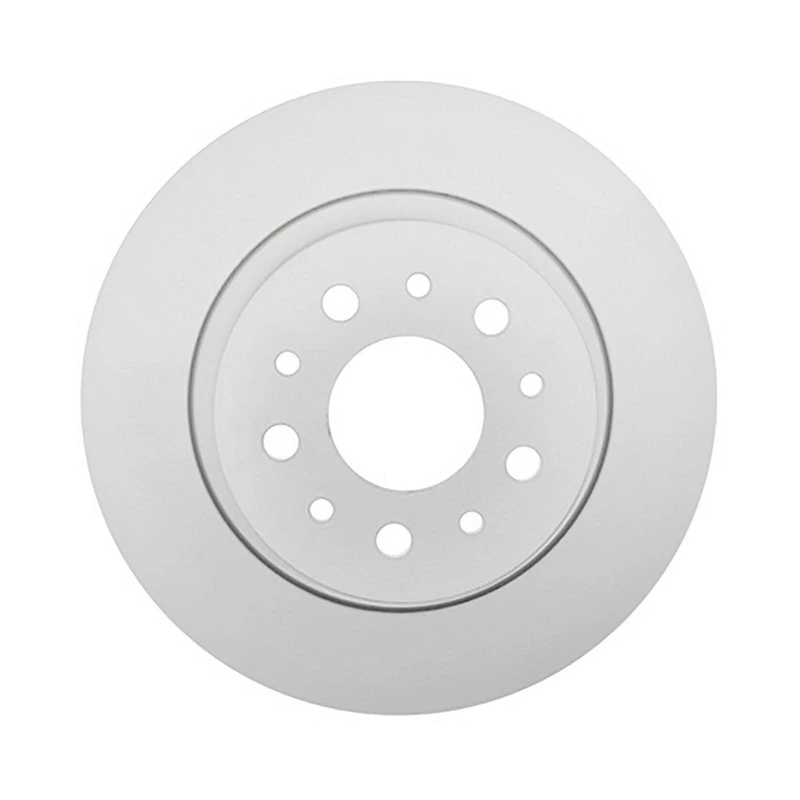

Raybestos 781769 Brake Rotor Rear Side

Part # 781769
Item # 1000VYE1
$53.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.324
Center Hole Diameter (mm)
59
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.315
Discard Thickness (mm)
8
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.87
Inside Diameter (mm)
174.5
Mounting Bolt Hole Circle Diameter (in)
3.858
Mounting Bolt Hole Circle Diameter (mm)
98
Mounting Bolt Hole Diameter (in)
0.516
Mounting Bolt Hole Diameter (mm)
13.1
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.394
Nominal Thickness (mm)
10
Outside Diameter (in)
10.394
Outside Diameter (mm)
264
Overall Height (in)
1.594
Overall Height (mm)
40.5
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
12104003, 121.04003 - CANADIAN TIRE, AUTOZONE, CENTRIC PARTS, CTEK
68201271AA - OEM PART NUMBER, FIAT, MOPAR
51914664, 519 1466 4 - OEM PART NUMBER, FERRARI, FIAT
BR901328 - DURAGO, DURA CORP
52026321, 520 2632 1 - FERRARI, FIAT
781769FZN - RAYBESTOS BRAKES, BRAKEBEST
2901328 - UAP, GEOTECH
781769 - RAYBESTOS BRAKES, BRAKEBEST
45636 - CANADIAN TIRE, QUALIS
12704003L, 127.04003L - STOPTECH, CENTRIC PARTS
12004003, 120.04003 - STOPTECH, CENTRIC PARTS
781769R - RAYBESTOS BRAKES, BRAKEBEST
YH507463P - CARQUEST, ADVANCE AUTO PARTS
12704003R, 127.04003R - STOPTECH, CENTRIC PARTS
12604003SR, 126.04003SR - STOPTECH, CENTRIC PARTS
12804003R, 128.04003R - STOPTECH, CENTRIC PARTS
12804003L, 128.04003L - STOPTECH, CENTRIC PARTS
YH507463 - CARQUEST, ADVANCE AUTO PARTS
12604003SL, 126.04003SL - STOPTECH, CENTRIC PARTS
BD180714E - WAGNER BRAKE
52026319 - FIAT
R1328 - NEWTEK AUTOMOTIVE USA
32004003, 320.04003 - CENTRIC PARTS
YH507463C - ADVANCE AUTO PARTS
EBR1423EVC - POWERSTOP
14620001, 14-620001 - PROMAX
912074RGS - BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Fiat
2014 - 2020Fiat500L
