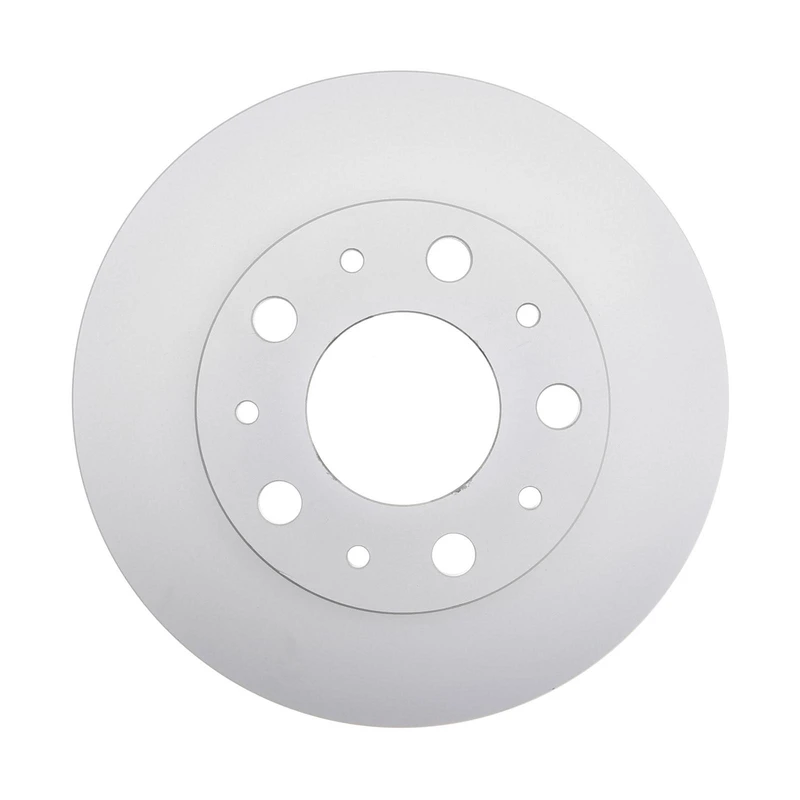

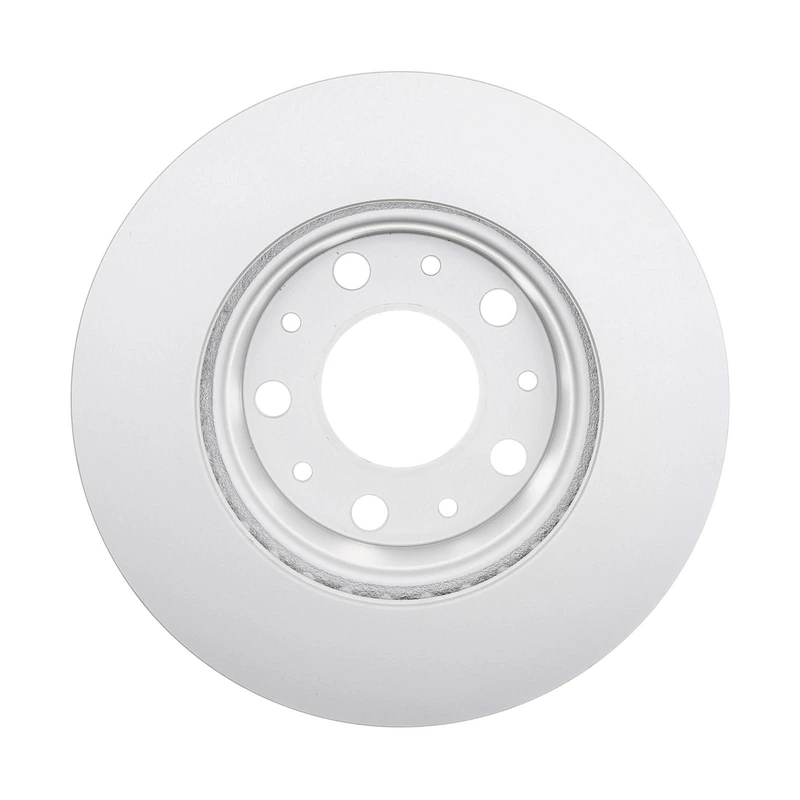

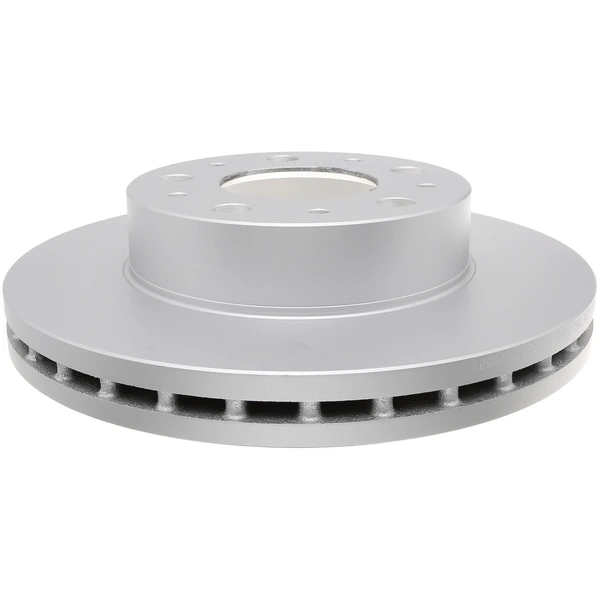

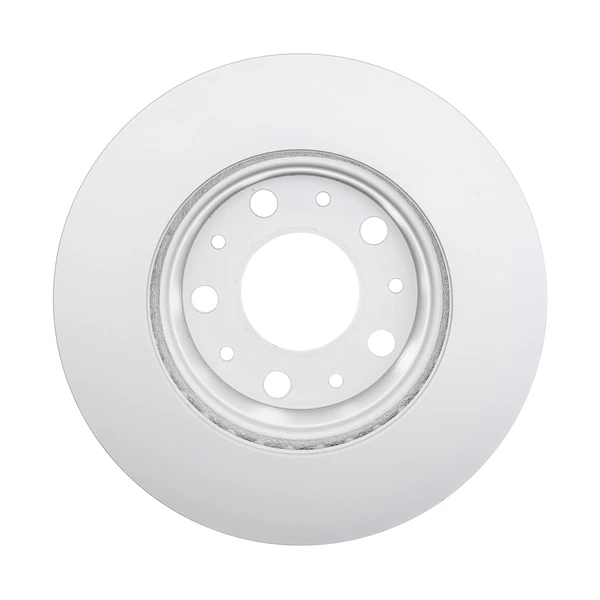

Raybestos 781766 Brake Rotor Front Side
Part # 781766
Item # 1000VYDT
$119.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 3.15
- Center Hole Diameter (mm)
- 80
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.181
- Discard Thickness (mm)
- 30
- Harmonize Code
- 8708.30.5030
- Inside Diameter (in)
- 7.193
- Inside Diameter (mm)
- 182.7
- Mounting Bolt Hole Circle Diameter (in)
- 5.11
- Mounting Bolt Hole Circle Diameter (mm)
- 129.8
- Mounting Bolt Hole Diameter (in)
- 0.695
- Mounting Bolt Hole Diameter (mm)
- 17.65
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.26
- Nominal Thickness (mm)
- 32
- Outside Diameter (in)
- 11.811
- Outside Diameter (mm)
- 300
- Overall Height (in)
- 1.141
- Overall Height (mm)
- 29
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- Surface Type
- Smooth
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
68195026AB - OEM PART NUMBER, CHRYSLER, RAM TRUCKS, MOPAR, RAM
68195026AA - OEM PART NUMBER, CHRYSLER, RAM TRUCKS, RAM
51957509, 519 5750 9, 519 57 509 - FERRARI, FIAT, CHRYSLER
68302369AB - OEM PART NUMBER, CHRYSLER, RAM
12167076, 121.67076 - CANADIAN TIRE, CENTRIC PARTS, CTEK
781766 - RAYBESTOS BRAKES, BRAKEBEST
32067076, 320.67076 - STOPTECH, CENTRIC PARTS
12067076, 120.67076 - STOPTECH, CENTRIC PARTS
YH516900P - CARQUEST, ADVANCE AUTO PARTS
43194 - CANADIAN TIRE, QUALIS
AX901276 - AUTO EXTRA, AUTOXTRA
781766FZN - RAYBESTOS BRAKES, BRAKEBEST
YH516900 - CARQUEST, ADVANCE AUTO PARTS
BR901276 - DURAGO, DURA CORP
1612435480, 16 124 354 80 - PEUGEOT, CITROEN
72118DL - DURALAST, AUTOZONE
781766R - RAYBESTOS BRAKES, BRAKEBEST
12167076CRY, 121.67076CRY - STOPTECH, CENTRIC PARTS
BD180702E - WAGNER BRAKE
32067076F, 320.67076F - CENTRIC PARTS
72118, 7-2118 - AUTOZONE
721693RGS - BRAKEBEST
R1276 - NEWTEK AUTOMOTIVE USA
14630000, 14-630000 - PROMAX
AR8393EVC - POWERSTOP
60040114, 600-40114 - DYNAMIC
YH516900C - ADVANCE AUTO PARTS
72118DG - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Fiat
Peugeot
Ram
| 2014 - 2024 | Ram | ProMaster 3500 |
| 2011 - 2017 | Fiat | Ducato |
| 2009 - 2010 | Peugeot | Manager |
| 2014 - 2024 | Ram | ProMaster 1500 |
| 2014 - 2024 | Ram | ProMaster 2500 |
| 2011 - 2015 | Peugeot | Manager |
