Raybestos

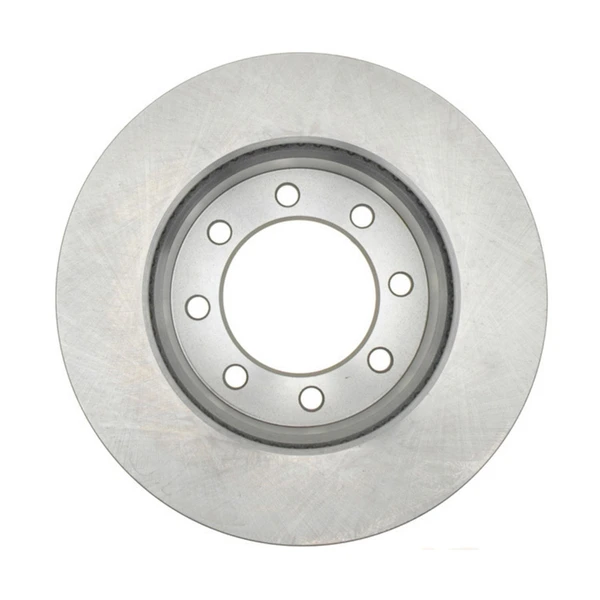

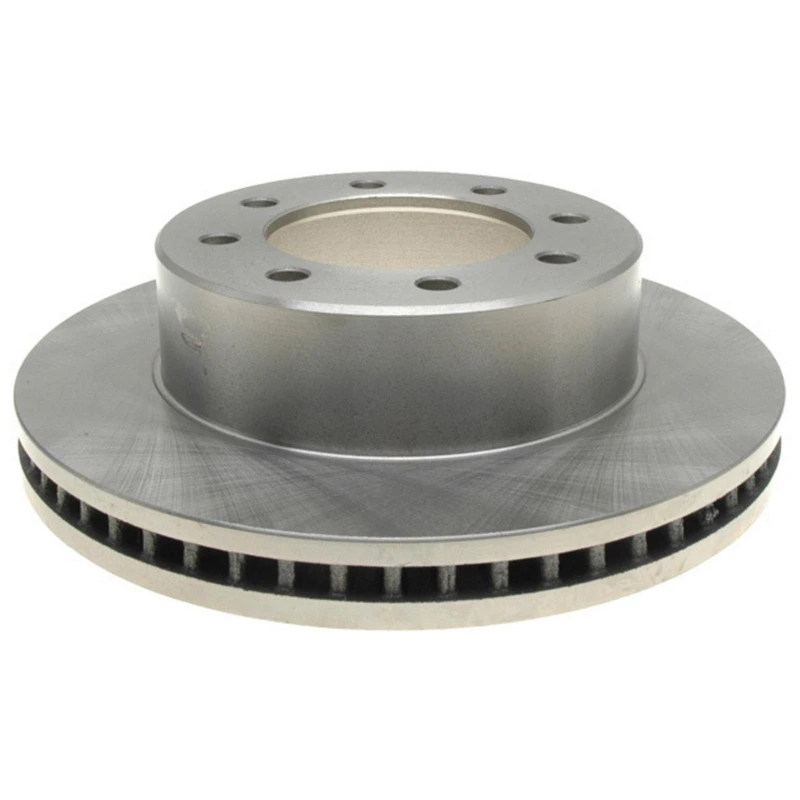

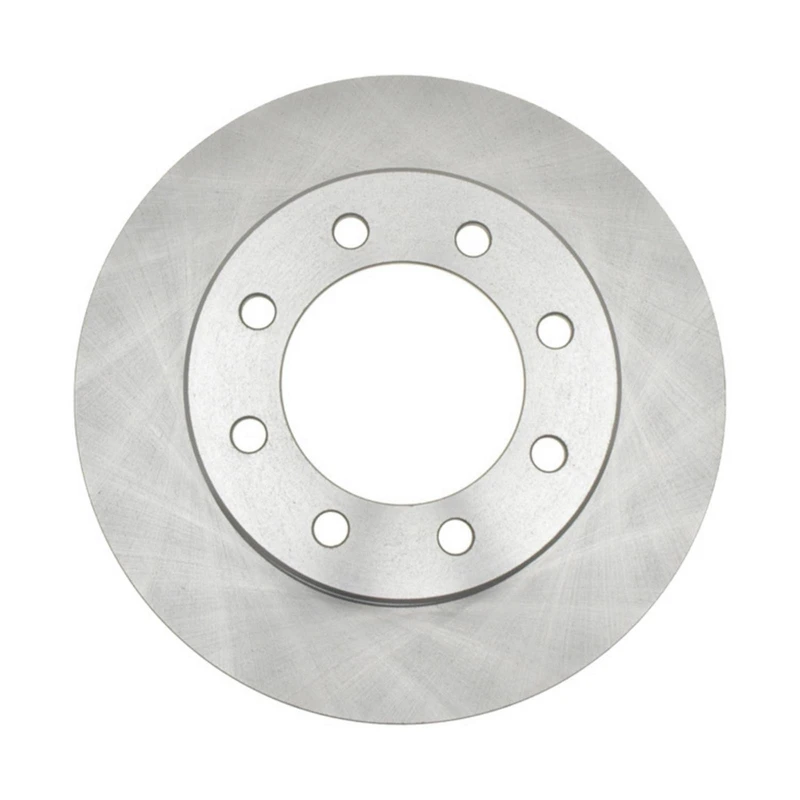

Raybestos 780736R Brake Rotor Front Side

Part # 780736R
Item # 1000UHAP
$125.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
4.84
Center Hole Diameter (mm)
122.95
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.472
Discard Thickness (mm)
37.4
Harmonize Code
8708.30.5030
Inside Diameter (in)
8.813
Inside Diameter (mm)
223.85
Mounting Bolt Hole Circle Diameter (in)
6.496
Mounting Bolt Hole Circle Diameter (mm)
165
Mounting Bolt Hole Diameter (in)
0.655
Mounting Bolt Hole Diameter (mm)
16.65
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.541
Nominal Thickness (mm)
39.15
Outside Diameter (in)
14.175
Outside Diameter (mm)
360.05
Overall Height (in)
4.02
Overall Height (mm)
102.1
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
8
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
780736R
120.67072
120.67072CRY
121.67072
126.67072CSL
126.67072CSR
126.67072SL
126.67072SR
127.67072CL
127.67072CR
127.67072L
127.67072R
128.67072CL
128.67072CR
128.67072L
128.67072R
14-53057
16011495
2053057
274914
320.67072
320.67072F
43163
43168
43168DG
491345
52122182AA
52122182AB
53057
53165

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Dodge
Ram
2009 - 2010DodgeRam 2500
2009 - 2010DodgeRam 3500
2009 - 2010DodgeRam 4000
2011 - 2015Ram4000
2011 - 2024Ram2500
2011 - 2024Ram3500
2012 - 2012Ram1500
