Raybestos

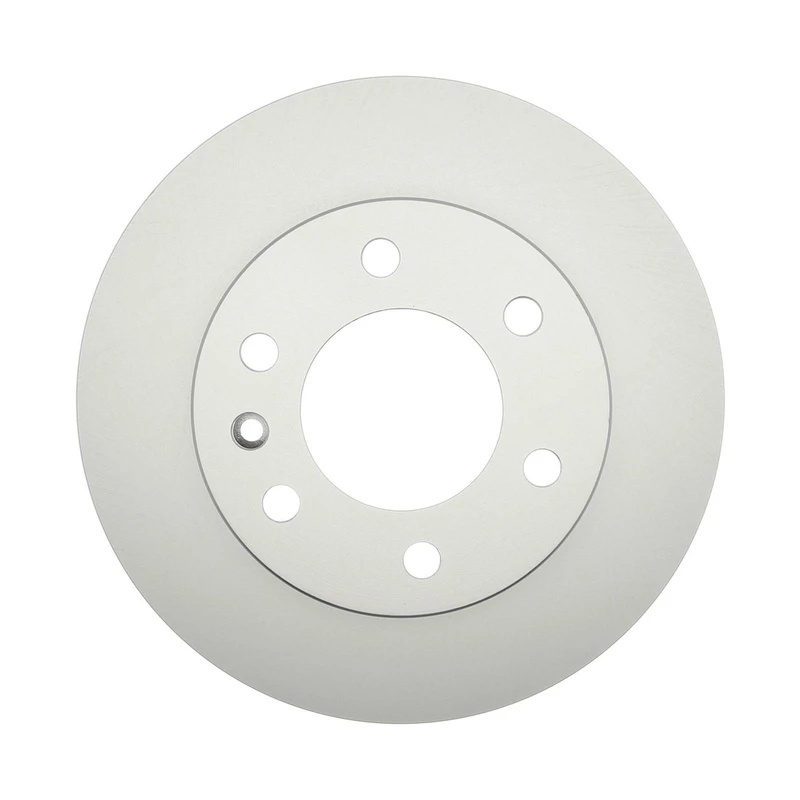

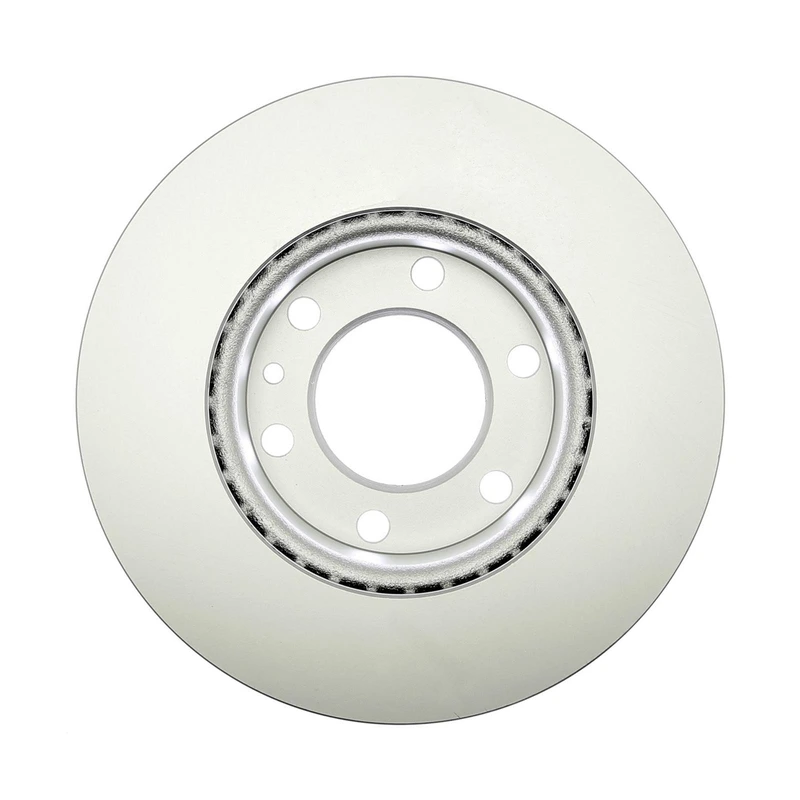

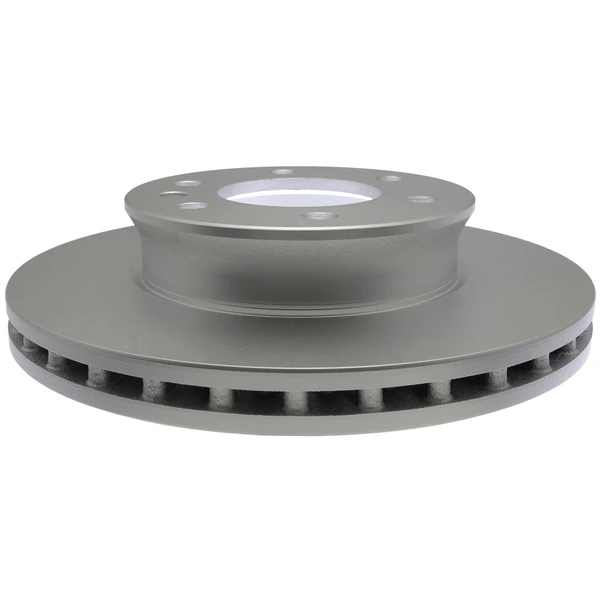

Raybestos 780614FZN Brake Rotor Front Side

Part # 780614FZN
Item # 1000VVP5
$85.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.35
Center Hole Diameter (mm)
85.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.984
Discard Thickness (mm)
25
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.118
Mounting Bolt Hole Circle Diameter (mm)
130
Mounting Bolt Hole Diameter (in)
0.595
Mounting Bolt Hole Diameter (mm)
15.1
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.102
Nominal Thickness (mm)
28
Outside Diameter (in)
11.799
Outside Diameter (mm)
299.7
Overall Height (in)
2.7
Overall Height (mm)
68.6
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
780614FZN
120.35106
121.35106
125.35106
125.35106CRY
126.35106CSL
126.35106CSR
126.35106SL
126.35106SR
127.35106L
127.35106R
14-53049
16011499
320.35106
320.35106H
321.35106
326386
355123162
43163
43163DG
4822
491315
53049
600-40043
60369
6620455
68006716AA
780614
780614R
780614RGS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (11)vehicles
All
Dodge
Freightliner
Mercedes-Benz
Volkswagen
2007 - 2009DodgeSprinter 2500
2007 - 2009DodgeSprinter 3500
2007 - 2018FreightlinerSprinter 3500
2007 - 2020FreightlinerSprinter 2500
2010 - 2024Mercedes-BenzSprinter 2500
2010 - 2024Mercedes-BenzSprinter 3500
2018 - 2024Mercedes-BenzSprinter 3500XD
2019 - 2023Mercedes-BenzSprinter 1500
2019 - 2023Mercedes-BenzSprinter 4500
2008 - 2017VolkswagenCrafter Van
2016 - 2017VolkswagenCrafter
