Raybestos

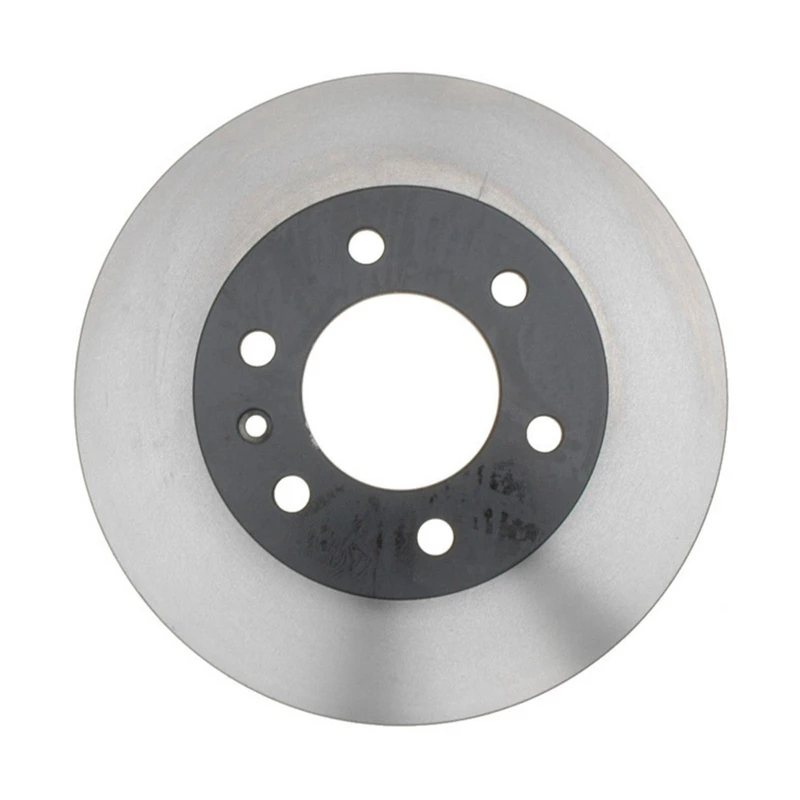

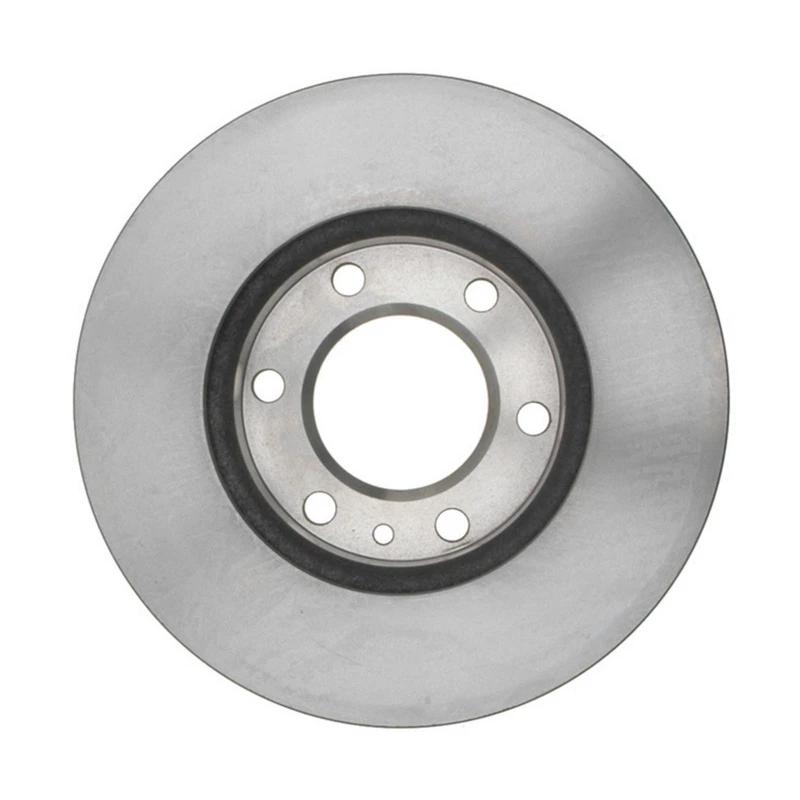

Raybestos 780614 Brake Rotor Front Side

Part # 780614
Item # 1000VT36
$112.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.35
Center Hole Diameter (mm)
85.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.984
Discard Thickness (mm)
25
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.118
Mounting Bolt Hole Circle Diameter (mm)
130
Mounting Bolt Hole Diameter (in)
0.595
Mounting Bolt Hole Diameter (mm)
15.1
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.102
Nominal Thickness (mm)
28
Outside Diameter (in)
11.799
Outside Diameter (mm)
299.7
Overall Height (in)
2.7
Overall Height (mm)
68.6
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
68006716AA, 6800 6716AA, 68006 716AA - OEM PART NUMBER, DODGE, FREIGHTLINER, CHRYSLER, MOPAR, MERCEDESBENZ
53049 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
43163 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
9064210012, 906 421 0012, 906 421 00 12 - OEM PART NUMBER, FREIGHTLINER, MERCEDESBENZ
YH200455P - CARQUEST, ADVANCE AUTO PARTS
780614, 7806-14 - RAYBESTOS BRAKES, BRAKEBEST
AX900308 - AUTO EXTRA, AUTOXTRA
9104210100, 910 421 0100, 910 421 01 00 - OEM PART NUMBER, MERCEDESBENZ
12635106SL, 126.35106SL - STOPTECH, CENTRIC PARTS
6620455 - WINHERE, PERFECT STOP
12635106SR, 126.35106SR - STOPTECH, CENTRIC PARTS
900308 - DURAGO, PARTS MASTER
780614FZN - RAYBESTOS BRAKES, BRAKEBEST
12535106CRY, 125.35106CRY - STOPTECH, CENTRIC PARTS
YH200455 - CARQUEST, ADVANCE AUTO PARTS
12135106, 121.35106 - CENTRIC PARTS, CTEK
16011499 - BOSCH, BRAKEBEST
9064210212, 906 421 02 12, 906 421 0212 - OEM PART NUMBER, MERCEDESBENZ
12735106R, 127.35106R - STOPTECH, CENTRIC PARTS
12535106, 125.35106 - STOPTECH, CENTRIC PARTS
780614R - RAYBESTOS BRAKES, BRAKEBEST
BR53049 - DURAGO, DURA CORP
12635106CSR, 126.35106CSR - STOPTECH, CENTRIC PARTS
9104210000, 910 421 0000, 910 421 00 00 - OEM PART NUMBER, MERCEDESBENZ
9074210100, 907 421 0100 - OEM PART NUMBER, MERCEDESBENZ
12735106L, 127.35106L - STOPTECH, CENTRIC PARTS
907421010007 - OEM PART NUMBER, MERCEDESBENZ
32035106, 320.35106 - STOPTECH, CENTRIC PARTS
355123162 - PAGID RACING, HELLA PAGID
12635106CSL, 126.35106CSL - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (11)vehicles
All
Dodge
Freightliner
Mercedes-Benz
Volkswagen
2007 - 2009DodgeSprinter 2500
2010 - 2024Mercedes-BenzSprinter 3500
2019 - 2023Mercedes-BenzSprinter 1500
2007 - 2018FreightlinerSprinter 3500
2007 - 2009DodgeSprinter 3500
2018 - 2024Mercedes-BenzSprinter 3500XD
2007 - 2020FreightlinerSprinter 2500
2010 - 2024Mercedes-BenzSprinter 2500
2016 - 2017VolkswagenCrafter
2008 - 2017VolkswagenCrafter Van
2019 - 2023Mercedes-BenzSprinter 4500
