Raybestos

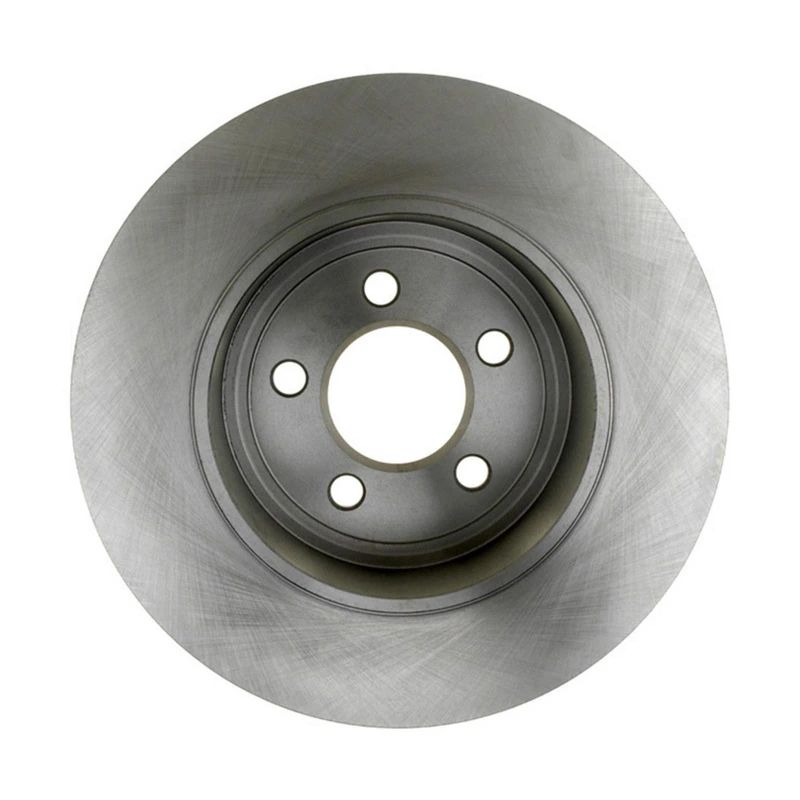

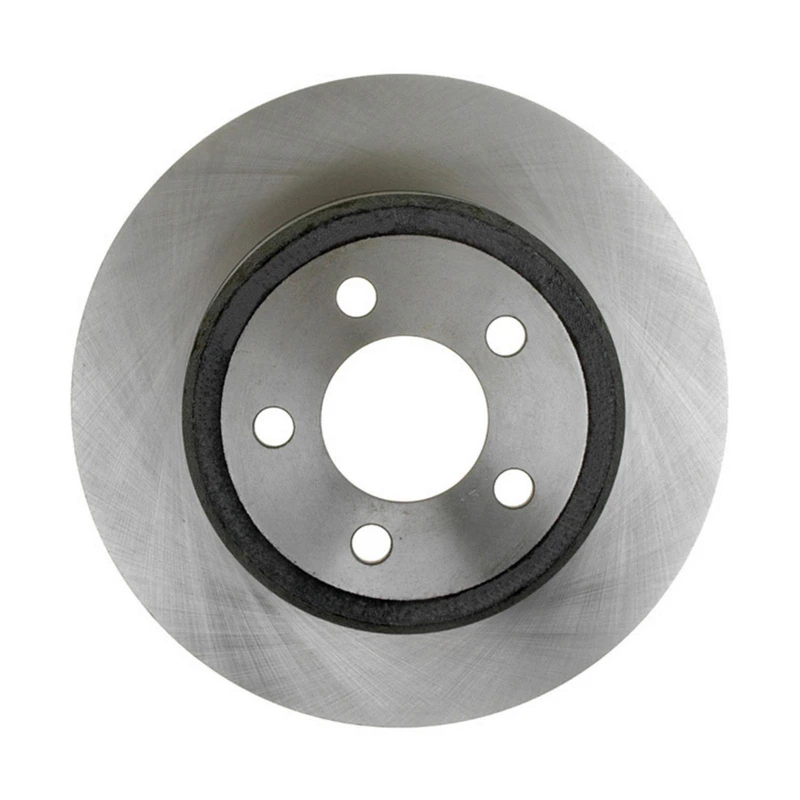

Raybestos 780254R Brake Rotor Rear Side

Part # 780254R
Item # 1000RYNZ
$59.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.86
Center Hole Diameter (mm)
72.65
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.335
Discard Thickness (mm)
8.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.87
Inside Diameter (mm)
199.9
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.658
Mounting Bolt Hole Diameter (mm)
16.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.394
Nominal Thickness (mm)
10
Outside Diameter (in)
12.595
Outside Diameter (mm)
319.9
Overall Height (in)
2.635
Overall Height (mm)
66.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
780254R
04779208AB
04779208AE
04779208AG
08.A403.10
120.63060
121.63060
125.63060
125.63060CRY
126.63060CSL
126.63060CSR
126.63060SL
126.63060SR
127.63060CL
127.63060CR
127.63060L
127.63060R
128.63060CL
128.63060CR
128.63060L
128.63060R
14-53021
145567
16010287
204302063
2053021
211650-C
227.63060L
227.63060R
27353

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (28)vehicles
All
Chrysler
Dodge
2005 - 2010Chrysler300
2005 - 2010Chrysler300
2011 - 2023Chrysler300
2005 - 2006DodgeMagnum
2005 - 2008DodgeMagnum
2006 - 2009DodgeCharger
2006 - 2010DodgeCharger
2007 - 2007DodgeMagnum
2007 - 2007DodgeMagnum
2008 - 2008DodgeMagnum
2008 - 2008DodgeMagnum
2009 - 2010DodgeChallenger
2010 - 2010DodgeCharger
2011 - 2011DodgeChallenger
2011 - 2011DodgeCharger
2012 - 2013DodgeChallenger
2012 - 2013DodgeCharger
2014 - 2014DodgeChallenger
2014 - 2014DodgeCharger
2014 - 2014DodgeCharger
