Raybestos

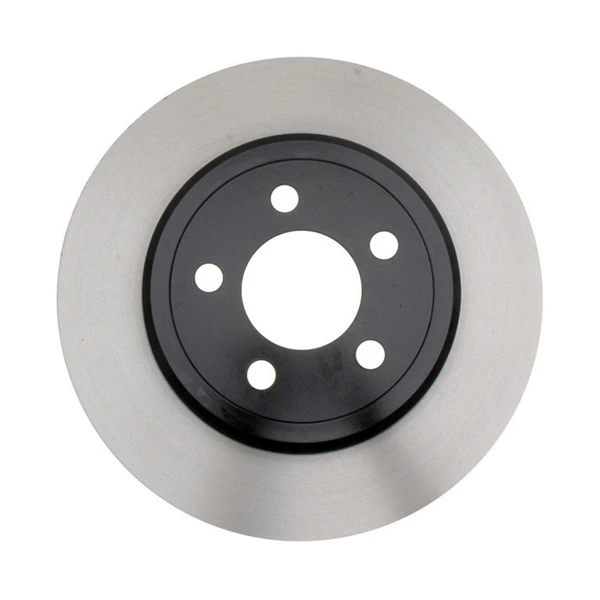

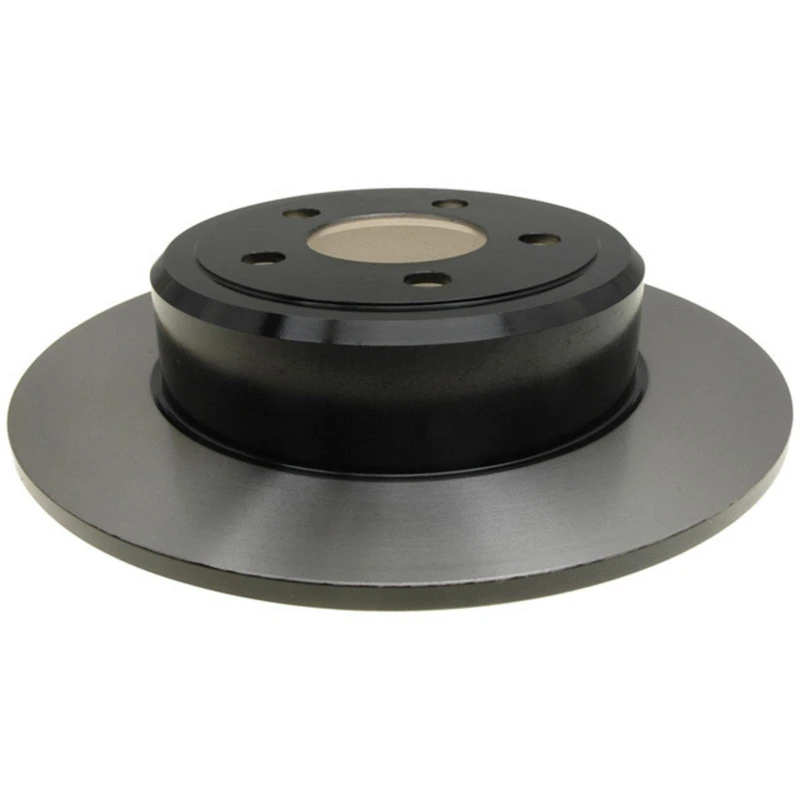

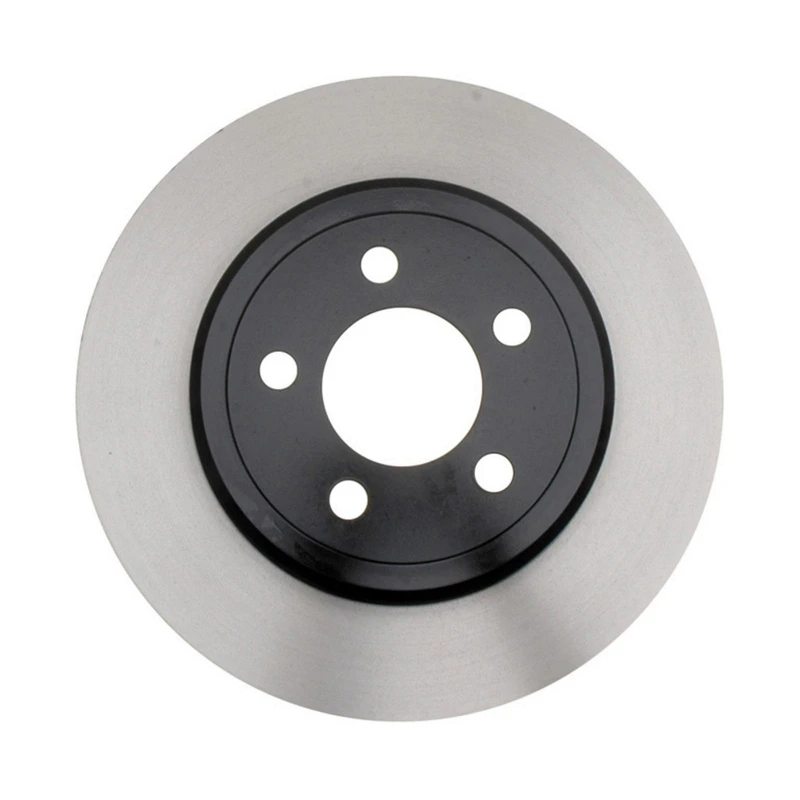

Raybestos 780254 Brake Rotor Rear Side

Part # 780254
Item # 1000VGK9
$82.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.86
Center Hole Diameter (mm)
72.65
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.335
Discard Thickness (mm)
8.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.87
Inside Diameter (mm)
199.9
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.658
Mounting Bolt Hole Diameter (mm)
16.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.394
Nominal Thickness (mm)
10
Outside Diameter (in)
12.595
Outside Diameter (mm)
319.9
Overall Height (in)
2.635
Overall Height (mm)
66.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
53021 - CARQUEST, DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
68368070AA, 6836 8070AA, 68368 070AA - OEM PART NUMBER, DODGE, CHRYSLER, MOPAR
4779208AE, 4779 208AE - OEM PART NUMBER, DODGE, CHRYSLER
4779208AD, 4779 208AD - OEM PART NUMBER, DODGE, CHRYSLER
4779208AF, 4779 208AF - OEM PART NUMBER, DODGE, CHRYSLER
4779208AH, 4779 208AH - OEM PART NUMBER, DODGE, CHRYSLER
4779208AC, 4779 208AC - OEM PART NUMBER, DODGE, CHRYSLER
4779208AB, 4779 208AB - OEM PART NUMBER, DODGE, CHRYSLER
12063060, 120.63060 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
2053021, 20-53021 - UAP, PROMAX, GEOTECH
12763060L, 127.63060L - STOPTECH, CENTRIC PARTS
4779208AG, 4779 208AG - OEM PART NUMBER, CHRYSLER
780254 - RAYBESTOS BRAKES, BRAKEBEST
12663060CSL, 126.63060CSL - STOPTECH, CENTRIC PARTS
12663060CSR, 126.63060CSR - STOPTECH, CENTRIC PARTS
BR53021 - DURAGO, DURA CORP
4779208AA - OEM PART NUMBER, CHRYSLER
12763060R, 127.63060R - STOPTECH, CENTRIC PARTS
12663060SL, 126.63060SL - STOPTECH, CENTRIC PARTS
12663060SR, 126.63060SR - STOPTECH, CENTRIC PARTS
AX53021 - AUTO EXTRA, AUTOXTRA
12863060CL, 128.63060CL - STOPTECH, CENTRIC PARTS
YH145567C - CARQUEST, ADVANCE AUTO PARTS
12863060CR, 128.63060CR - STOPTECH, CENTRIC PARTS
12863060R, 128.63060R - STOPTECH, CENTRIC PARTS
YH145567P - CARQUEST, ADVANCE AUTO PARTS
12863060L, 128.63060L - STOPTECH, CENTRIC PARTS
32063060, 320.63060 - STOPTECH, CENTRIC PARTS
BR5302102 - DURAGO, DURA CORP
16010287 - BOSCH, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (28)vehicles
All
Chrysler
Dodge
2015 - 2017DodgeCharger
2011 - 2023Chrysler300
2015 - 2019DodgeCharger
2018 - 2018DodgeChallenger
2007 - 2007DodgeMagnum
2014 - 2014DodgeCharger
2017 - 2017DodgeChallenger
2015 - 2016DodgeChallenger
2006 - 2010DodgeCharger
2014 - 2014DodgeCharger
2012 - 2013DodgeCharger
2006 - 2009DodgeCharger
2011 - 2011DodgeChallenger
2007 - 2007DodgeMagnum
2012 - 2013DodgeChallenger
2008 - 2008DodgeMagnum
2019 - 2023DodgeChallenger
2014 - 2014DodgeChallenger
2020 - 2023DodgeCharger
2011 - 2011DodgeCharger
