Raybestos

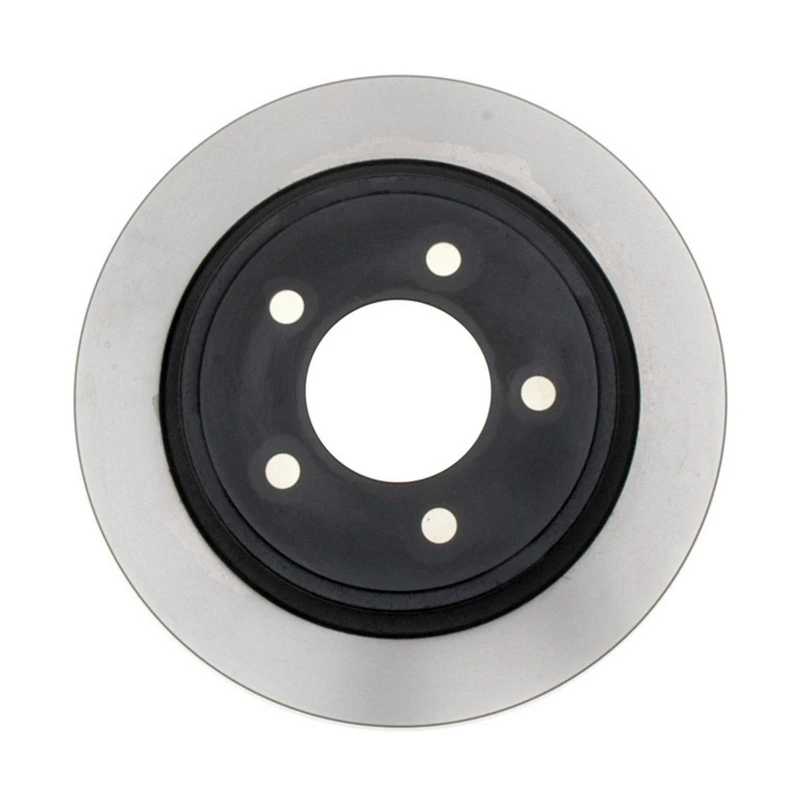

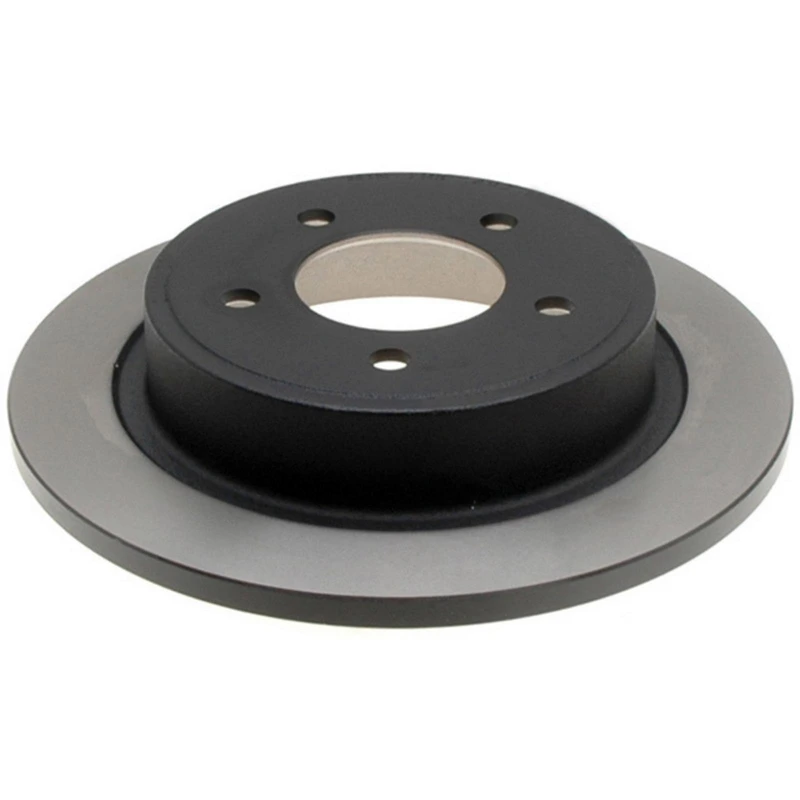

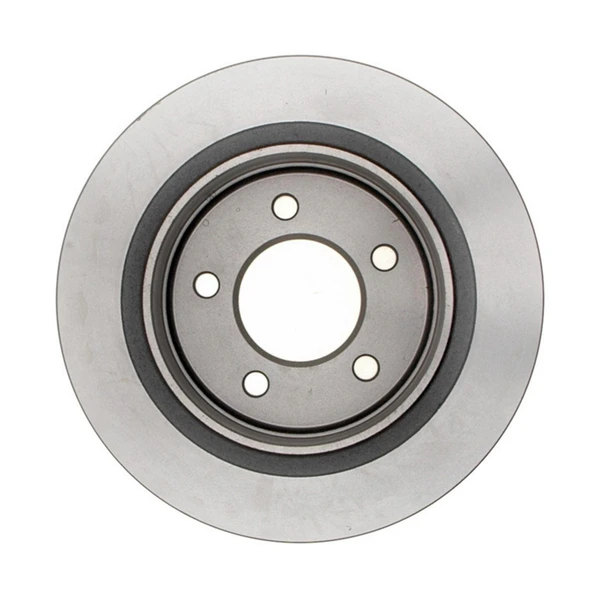

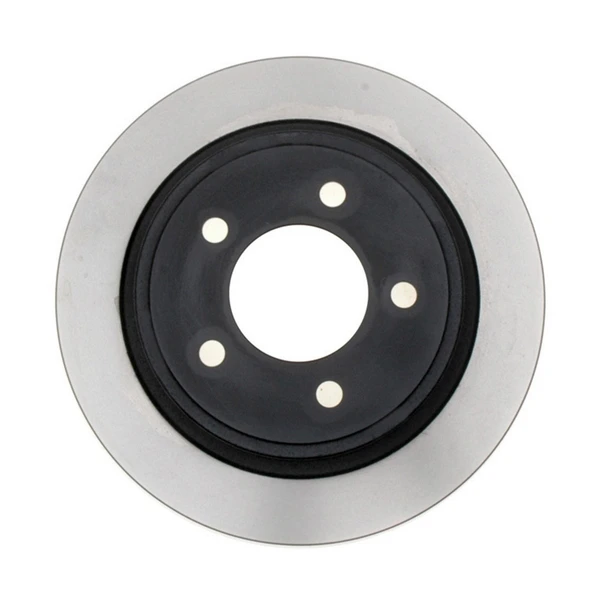

Raybestos 780152 Brake Rotor Rear Side

Part # 780152
Item # 1000VCWN
$93.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.23
Center Hole Diameter (mm)
82.05
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.492
Discard Thickness (mm)
12.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5
Mounting Bolt Hole Circle Diameter (mm)
127
Mounting Bolt Hole Diameter (in)
0.604
Mounting Bolt Hole Diameter (mm)
15.35
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.551
Nominal Thickness (mm)
14
Outside Diameter (in)
12.28
Outside Diameter (mm)
311.9
Overall Height (in)
2.21
Overall Height (mm)
56.15
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
53018 - CARQUEST, DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
AX53018 - AUTO EXTRA, AUTOXTRA
12863057CL, 128.63057CL - STOPTECH, CENTRIC PARTS
126156, 12-6156 - PARTS MASTER, AUTOXTRA
145496 - BENDIX, ADVANCE AUTO PARTS
12863057CR, 128.63057CR - STOPTECH, CENTRIC PARTS
12863057R, 128.63057R - STOPTECH, CENTRIC PARTS
53121 - CASTING NUMBERS, ULTRA BRAKE
16010213 - BOSCH, BRAKEBEST
BD126156 - WAGNER BRAKE, BRAKEBEST
12863057L, 128.63057L - STOPTECH, CENTRIC PARTS
780152FZN - RAYBESTOS BRAKES, BRAKEBEST
04721240AF - CHRYSLER, MOPAR
BR53018 - DURAGO, DURA CORP
4721240AF - OEM PART NUMBER, CHRYSLER
12763057R, 127.63057R - STOPTECH, CENTRIC PARTS
32063057, 320.63057 - STOPTECH, CENTRIC PARTS
12063057, 120.63057 - STOPTECH, CENTRIC PARTS
YH145496 - CARQUEST, ADVANCE AUTO PARTS
780152R - RAYBESTOS BRAKES, BRAKEBEST
661631 - WINHERE, PERFECT STOP
4721240AB - OEM PART NUMBER, CHRYSLER
12763057L, 127.63057L - STOPTECH, CENTRIC PARTS
12663057SL, 126.63057SL - STOPTECH, CENTRIC PARTS
780152 - RAYBESTOS BRAKES, BRAKEBEST
12163057, 121.63057 - CENTRIC PARTS, CTEK
4721240AC - OEM PART NUMBER, CHRYSLER
12663057SR, 126.63057SR - STOPTECH, CENTRIC PARTS
326205 - CASTING NUMBERS
80780152 - AUTOXTRA

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Chrysler
2004 - 2008ChryslerPacifica
