Raybestos

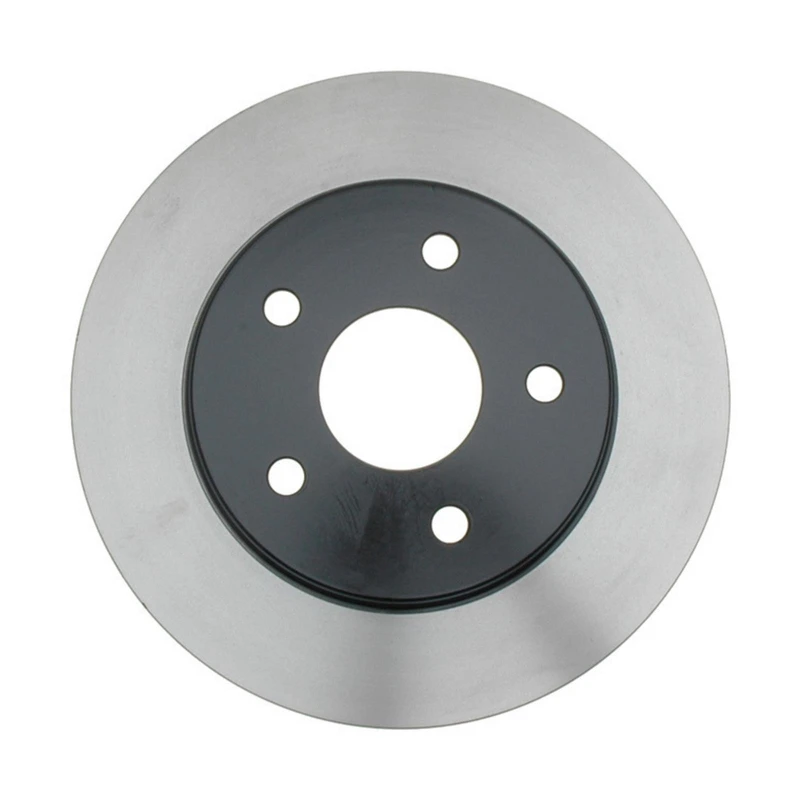

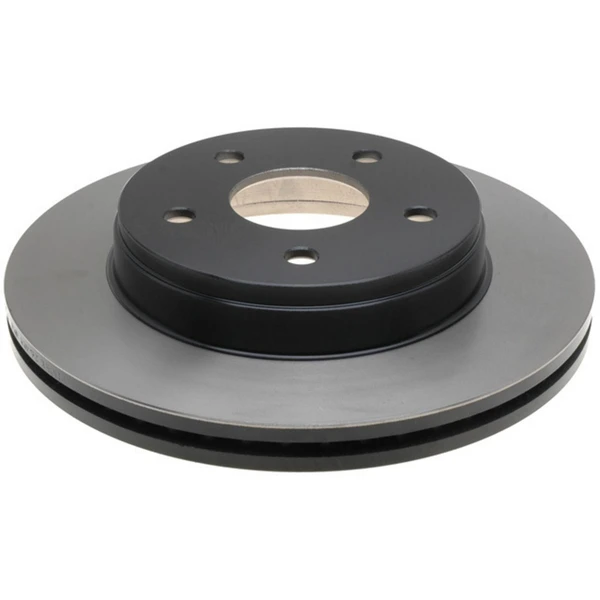

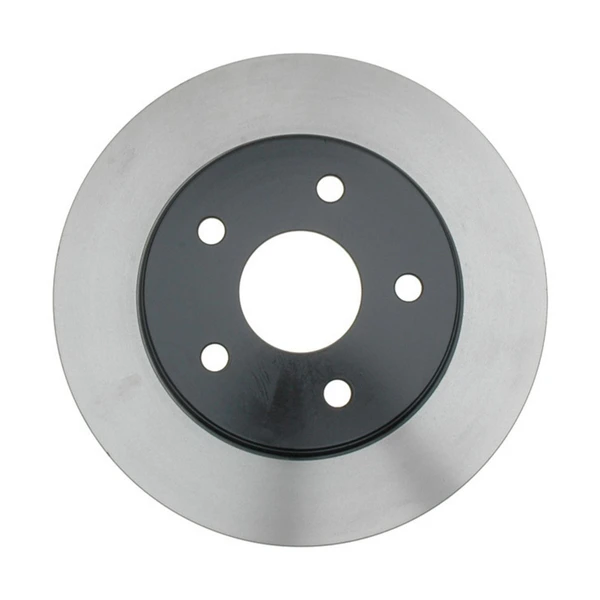

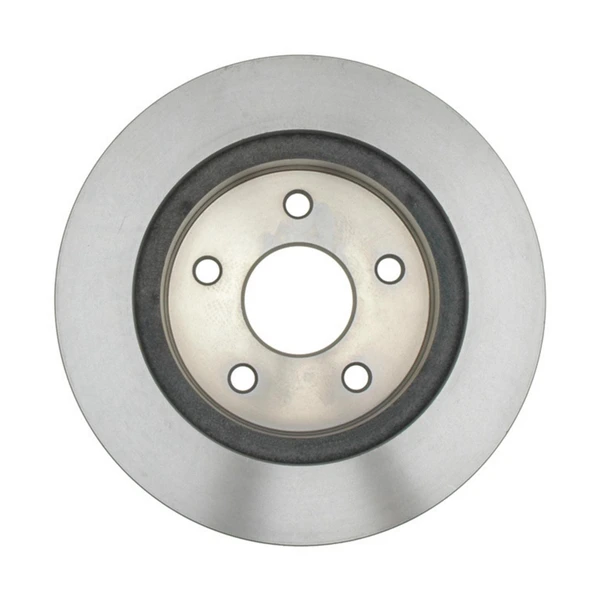

Raybestos 780073 Brake Rotor Front Side

Part # 780073
Item # 1000V845
$91.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.09
Center Hole Diameter (mm)
78.5
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.039
Discard Thickness (mm)
26.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.667
Mounting Bolt Hole Diameter (mm)
16.95
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.102
Nominal Thickness (mm)
28
Outside Diameter (in)
13.23
Outside Diameter (mm)
336.05
Overall Height (in)
2.66
Overall Height (mm)
67.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
53005 - CARQUEST, DURALAST, PAGID RACING, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
52010080AI, 5201 0080AI - OEM PART NUMBER, DODGE, CHRYSLER, MOPAR, RAM
52010080AE, 5201 0080AE - OEM PART NUMBER, DODGE, CHRYSLER, RAM
12067053, 120.67053 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
140725866, 1407-25866 - AI CONVERTER, AUTOPAR, API
145381, 14-5381 - US AUTO FORCE, BENDIX, PROMAX
2053005, 20-53005 - UAP, PROMAX, GEOTECH
52010080AB, 5201 0080AB - OEM PART NUMBER, DODGE, CHRYSLER
BD126062 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
52010080AA, 52010 080AA - OEM PART NUMBER, DODGE, CHRYSLER
52010080AC, 52010 080AC - OEM PART NUMBER, DODGE, CHRYSLER
AR8750 - POWERSTOP, AUTOSPECIALTY
YH145381P - CARQUEST, ADVANCE AUTO PARTS
780073PER - RAYBESTOS BRAKES, BRAKEBEST
CW28710 - ATE, CONTINENTAL
32067053, 320.67053 - STOPTECH, CENTRIC PARTS
YH145381 - CARQUEST, ADVANCE AUTO PARTS
16010153 - BOSCH, BRAKEBEST
AX53005 - AUTO EXTRA, AUTOXTRA
12667053SR, 126.67053SR - STOPTECH, CENTRIC PARTS
22767053L, 227.67053L - STOPTECH, CENTRIC PARTS
12667053SL, 126.67053SL - STOPTECH, CENTRIC PARTS
12867053CL, 128.67053CL - STOPTECH, CENTRIC PARTS
12567053, 125.67053 - STOPTECH, CENTRIC PARTS
22767053R, 227.67053R - STOPTECH, CENTRIC PARTS
YH145381C - CARQUEST, ADVANCE AUTO PARTS
780073FZN - RAYBESTOS BRAKES, BRAKEBEST
12067053CRY, 120.67053CRY - STOPTECH, CENTRIC PARTS
780073 - RAYBESTOS BRAKES, BRAKEBEST
12867053L, 128.67053L - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (15)vehicles
All
Chrysler
Dodge
Ram
2004 - 2005DodgeRam 1500
2006 - 2006DodgeRam 1500
2007 - 2009ChryslerAspen
2012 - 2012Ram1500
2004 - 2005DodgeRam 1500
2011 - 2011Ram1500
2007 - 2008DodgeRam 1500
2006 - 2006DodgeRam 1500
2019 - 2023Ram1500 Classic
2002 - 2003DodgeRam 1500
2004 - 2005DodgeRam 1500
2013 - 2018Ram1500
2009 - 2010DodgeRam 1500
2006 - 2006DodgeRam 1500
2004 - 2009DodgeDurango
