Raybestos

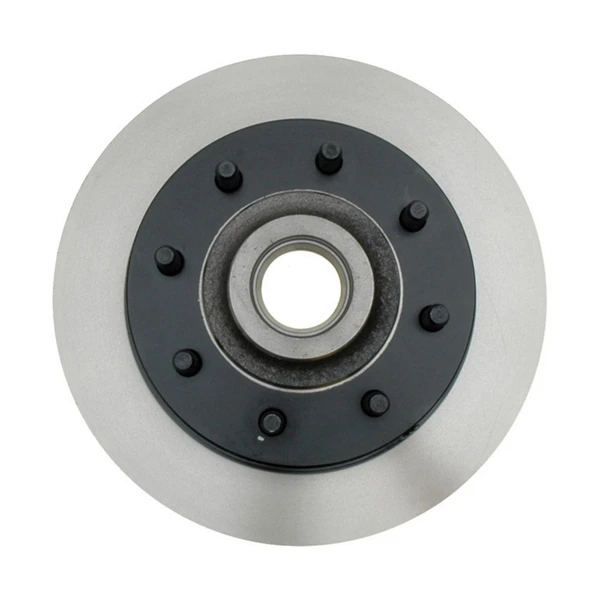

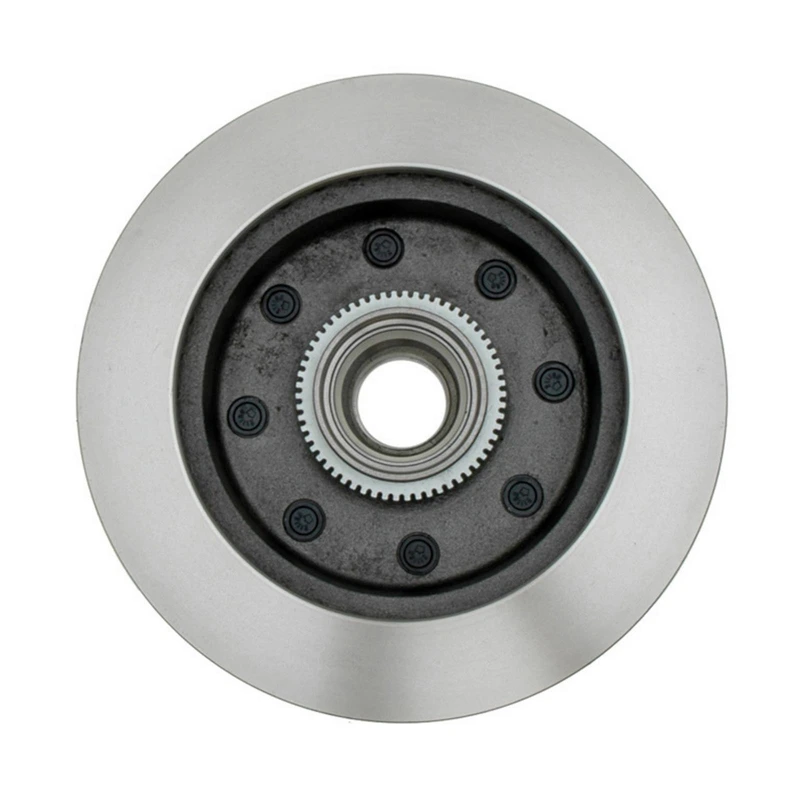

Raybestos 76808 Brake Rotor Front Side

Part # 76808
Item # 1000WYSK
$213.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
Yes
Brake Rotor Material
Cast Iron
Construction
Full Cast
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.181
Discard Thickness (mm)
30
Inside Diameter (in)
8.858
Inside Diameter (mm)
225
Mounting Bolt Hole Circle Diameter (in)
6.5
Mounting Bolt Hole Circle Diameter (mm)
165.1
Mounting Bolt Hole Diameter (in)
0.6
Mounting Bolt Hole Diameter (mm)
15.25
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.245
Nominal Thickness (mm)
31.6
Overall Height (in)
4.587
Overall Height (mm)
116.5
Rotor Outside Diameter (mm)
328.800
Solid Or Vented Type Rotor
Vented
Stud Quantity
8
Stud/Lug Hole Quantity
8
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
5398 - QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
52009415AC - OEM PART NUMBER, DODGE, CHRYSLER
52009415 - OEM PART NUMBER, DODGE, CHRYSLER
BD125784 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
125784 - PARTS MASTER, AUTOXTRA
YH145202 - CARQUEST, ADVANCE AUTO PARTS
145202, 145-202, 1452.02 - BENDIX, ADVANCE AUTO PARTS
16010179 - BOSCH, BRAKEBEST
8940040, 89-40040 - DELTA, AMERICAN REMANUFACTURED
76808R - RAYBESTOS BRAKES, BRAKEBEST
76808, 7-6808 - RAYBESTOS BRAKES, BRAKEBEST
443166 - WINHERE, PERFECT STOP
12067040, 120.67040 - CENTRIC PARTS, WAGNER BRAKE
BR5398 - DURAGO, DURA CORP
YH3166 - WINHERE
12567040, 125.67040 - CENTRIC PARTS
09905185, 09.9051.85 - BREMBO
12667040SR, 126.67040SR - CENTRIC PARTS
12667040CSL, 126.67040CSL - CENTRIC PARTS
32067040F, 320.67040F - CENTRIC PARTS
AR8740E - AUTOSPECIALTY
27269 - BREMBO
491070, 49-1070 - TRUSTAR
12667040CSR, 126.67040CSR - CENTRIC PARTS
103070 - UNIVERSAL
12767040R, 127.67040R - CENTRIC PARTS
DL5398 - AUTOZONE
E12572045, E125-72-045 - FORMULA BLUE HYDRAULIC BRAKE PARTS
12767040L, 127.67040L - CENTRIC PARTS
CW32703 - CONTINENTAL

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Dodge
1998 - 2003DodgeRam 3500 Van
1999 - 1999DodgeRam 1500 Van
1998 - 1998DodgeB3500
1998 - 1998DodgeB2500
1998 - 2003DodgeRam 2500 Van
