Raybestos

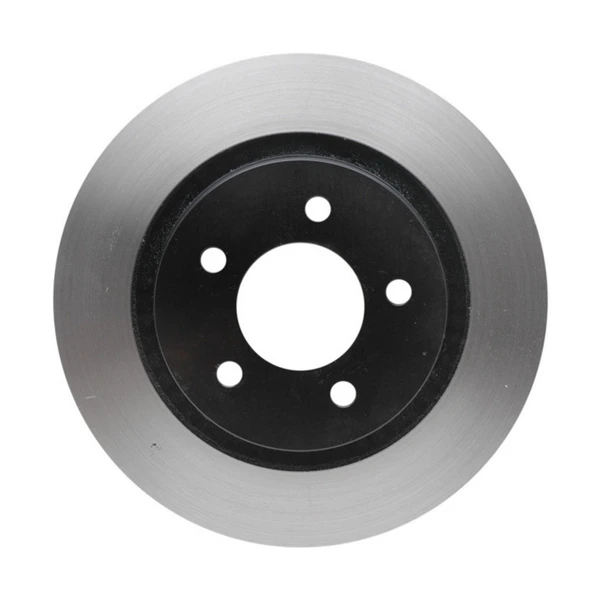

Raybestos 76777 Brake Rotor Front Side

Part # 76777
Item # 1000V9YP
$96.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.89
Center Hole Diameter (mm)
73.4
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.961
Discard Thickness (mm)
24.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.557
Mounting Bolt Hole Diameter (mm)
14.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.025
Nominal Thickness (mm)
26.05
Outside Diameter (in)
11.7
Outside Diameter (mm)
297.2
Overall Height (in)
2.12
Overall Height (mm)
53.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
5388 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, PILENGA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS, ULTRA BRAKE
4779133AA - HYUNDAI, OEM PART NUMBER, DODGE, CHRYSLER
12063048, 120.63048 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD125676 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
145388, 14-5388 - BENDIX, ADVANCE AUTO PARTS, PROMAX
12763048R, 127.63048R - STOPTECH, CENTRIC PARTS
76777FZN - RAYBESTOS BRAKES, BRAKEBEST
YH145263 - CARQUEST, ADVANCE AUTO PARTS
12663048CSL, 126.63048CSL - STOPTECH, CENTRIC PARTS
8932048, 89-32048 - DELTA, AMERICAN REMANUFACTURED
125676 - PARTS MASTER, AUTOXTRA
12163048, 121.63048 - CENTRIC PARTS, CTEK
16010150 - BOSCH, BRAKEBEST
12763048L, 127.63048L - STOPTECH, CENTRIC PARTS
12663048CSR, 126.63048CSR - STOPTECH, CENTRIC PARTS
12763048CL, 127.63048CL - STOPTECH, CENTRIC PARTS
145263 - BENDIX, ADVANCE AUTO PARTS
12763048CR, 127.63048CR - STOPTECH, CENTRIC PARTS
12563048, 125.63048 - STOPTECH, CENTRIC PARTS
52125676, 52-125676 - GUARDIAN, WAGNER BRAKE
12863048L, 128.63048L - STOPTECH, CENTRIC PARTS
76777, 7-6777 - RAYBESTOS BRAKES, BRAKEBEST
12563048CRY, 125.63048CRY - STOPTECH, CENTRIC PARTS
442652 - WINHERE, PERFECT STOP
BR5388 - DURAGO, DURA CORP
76777R - RAYBESTOS BRAKES, BRAKEBEST
12663048SL, 126.63048SL - STOPTECH, CENTRIC PARTS
12663048SR, 126.63048SR - STOPTECH, CENTRIC PARTS
04779133AA - OEM PART NUMBER, CHRYSLER
107041 - NEOTEK DRUMS AND ROTORS, COMMAND AUTOMOTIVE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Chrysler
Dodge
2001 - 2004ChryslerConcorde
2000 - 2000DodgeIntrepid
2001 - 2004Chrysler300M
1999 - 2000Chrysler300M
2000 - 2001ChryslerIntrepid
2002 - 2004ChryslerIntrepid
2001 - 2004DodgeIntrepid
