Raybestos

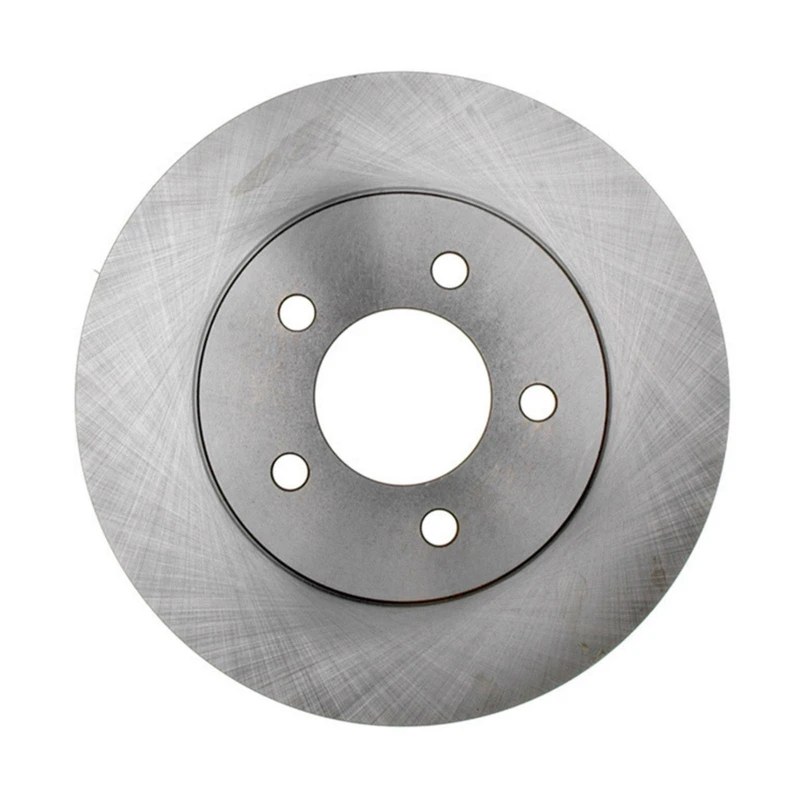

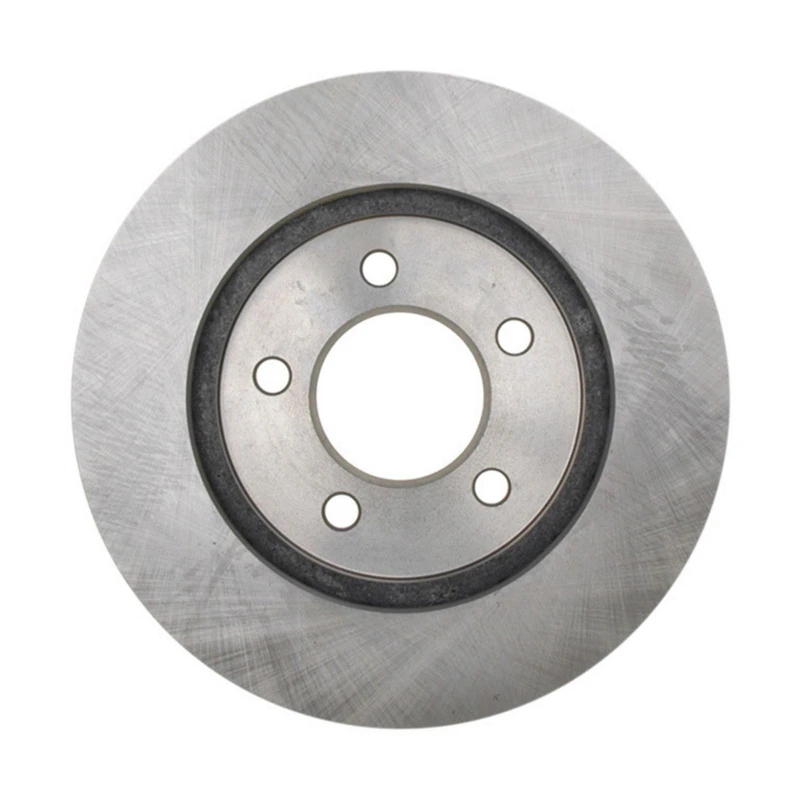

Raybestos 76646R Brake Rotor Front Side

Part # 76646R
Item # 1000RRP2
$61.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.9
Center Hole Diameter (mm)
73.65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.882
Discard Thickness (mm)
22.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.551
Mounting Bolt Hole Diameter (mm)
14
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.945
Nominal Thickness (mm)
24
Outside Diameter (in)
11.1
Outside Diameter (mm)
281.95
Overall Height (in)
1.5
Overall Height (mm)
38.1
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
5373 - DURALAST, EUROROTOR, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS, ULTRA BRAKE
4721820 - HYUNDAI, PLYMOUTH, OEM PART NUMBER, DODGE, CHRYSLER
4721820AE, 4 721 820 AE, 4721 820AE - HYUNDAI, PLYMOUTH, OEM PART NUMBER, DODGE, CHRYSLER
4683260, 46 832 60, 4 683 260 - HYUNDAI, PLYMOUTH, OEM PART NUMBER, DODGE, CHRYSLER
4683432, 4 683 432 - HYUNDAI, PLYMOUTH, OEM PART NUMBER, DODGE, CHRYSLER
4815797 - PLYMOUTH, OEM PART NUMBER, DODGE, CHRYSLER
BD125502 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
4721820AD - OEM PART NUMBER, DODGE, CHRYSLER
12067039, 120.67039 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12867039R, 128.67039R - STOPTECH, CENTRIC PARTS
CW24153 - ATE, CONTINENTAL
145373, 14-5373 - BENDIX, PROMAX
12867039CL, 128.67039CL - STOPTECH, CENTRIC PARTS
12667039CSR, 126.67039CSR - STOPTECH, CENTRIC PARTS
76646R - RAYBESTOS BRAKES, BRAKEBEST
12867039CR, 128.67039CR - STOPTECH, CENTRIC PARTS
12867039L, 128.67039L - STOPTECH, CENTRIC PARTS
12067039CRY, 120.67039CRY - STOPTECH, CENTRIC PARTS
12767039L, 127.67039L - STOPTECH, CENTRIC PARTS
76646RGS - RAYBESTOS BRAKES, BRAKEBEST
04721820 - OEM PART NUMBER, CHRYSLER
52125502, 52-125502 - GUARDIAN, WAGNER BRAKE
8940039, 89-40039 - DELTA, AMERICAN REMANUFACTURED
125505, 1255-05 - PARTS MASTER, AUTOXTRA
25552, 2-5552 - BREMBO, AUTOPAR
YH145152 - CARQUEST, ADVANCE AUTO PARTS
12767039R, 127.67039R - STOPTECH, CENTRIC PARTS
12167039, 121.67039 - CENTRIC PARTS, CTEK
BR5346 - DURAGO, DURA CORP
145152, 14-5152 - BENDIX, ADVANCE AUTO PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Chrysler
Dodge
Plymouth
1996 - 1999ChryslerTown & Country
2000 - 2000ChryslerGrand Voyager
2000 - 2000ChryslerTown & Country
2000 - 2000ChryslerVoyager
2001 - 2002ChryslerProwler
1996 - 1996DodgeCaravan
1996 - 2000DodgeGrand Caravan
1997 - 2000DodgeCaravan
1996 - 2000PlymouthGrand Voyager
1996 - 2000PlymouthVoyager
1997 - 1997PlymouthProwler
1999 - 2001PlymouthProwler
