Raybestos

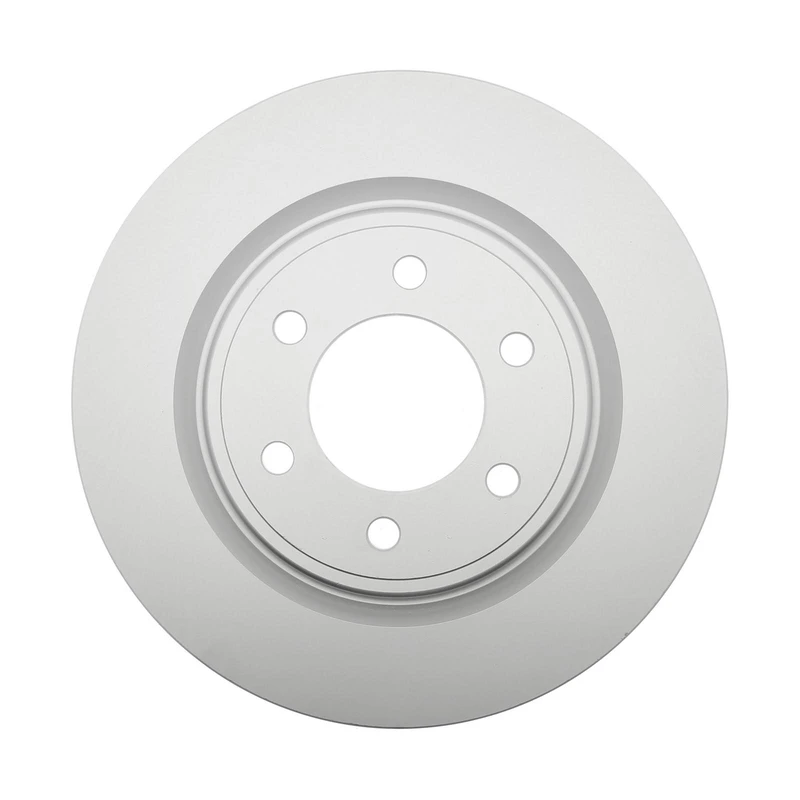

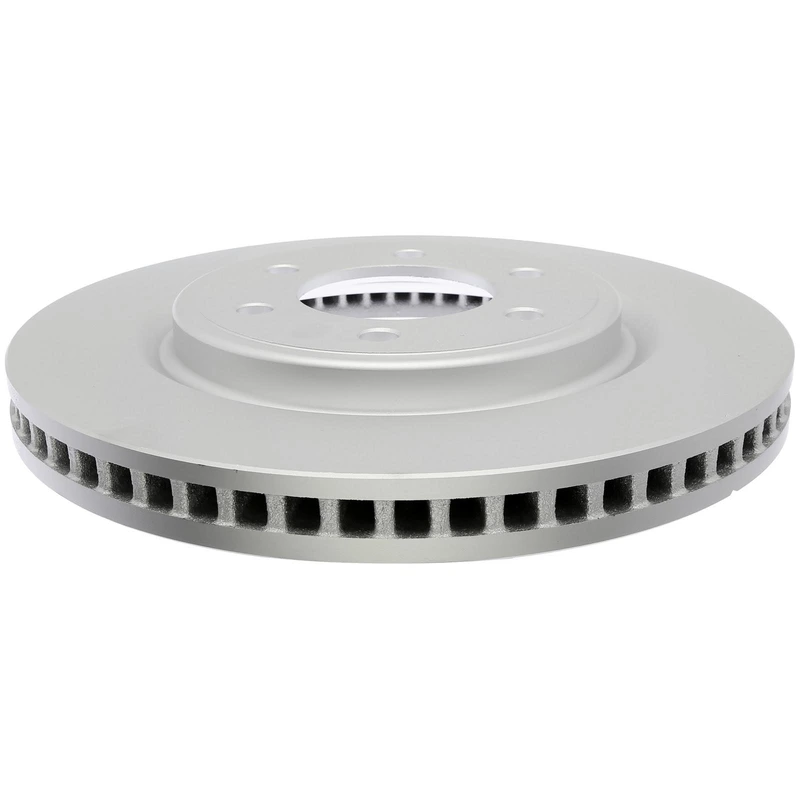

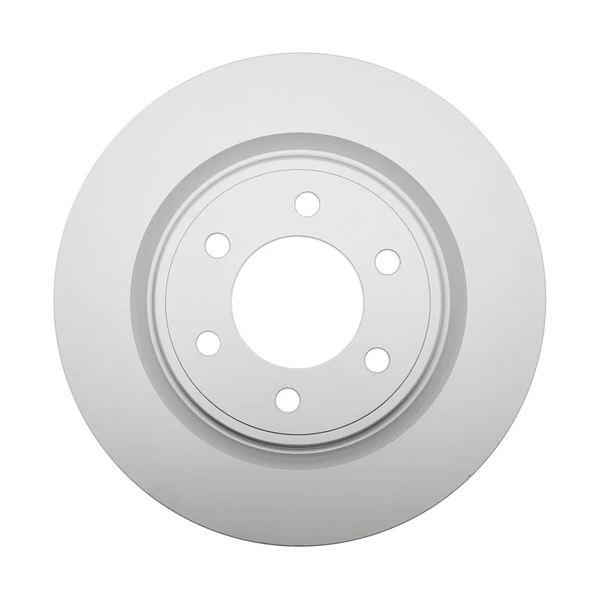

Raybestos 682746 Brake Rotor Front Side

Part # 682746
Item # 1000WE8E
$119.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.54
Center Hole Diameter (mm)
89.9
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.28
Discard Thickness (mm)
32.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
9.35
Inside Diameter (mm)
237.5
Mounting Bolt Hole Circle Diameter (in)
5.315
Mounting Bolt Hole Circle Diameter (mm)
135
Mounting Bolt Hole Diameter (in)
0.606
Mounting Bolt Hole Diameter (mm)
15.4
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.339
Nominal Thickness (mm)
34
Outside Diameter (in)
13.78
Outside Diameter (mm)
350
Overall Height (in)
1.95
Overall Height (mm)
49.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
ML1Z1125D - LINCOLN AUTOMOTIVE, FORD
BRRF430 - MOTORCRAFT
ML3Z1125B - FORD
YH720511P - ADVANCE AUTO PARTS
YH720511 - ADVANCE AUTO PARTS
682746 - RAYBESTOS BRAKES
BRRF479 - MOTORCRAFT
12065168, 120.65168 - CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Ford
Lincoln
2022 - 2023FordExpedition
2022 - 2024FordBronco
2021 - 2023FordLobo
2021 - 2024FordF-150
2022 - 2023LincolnNavigator
