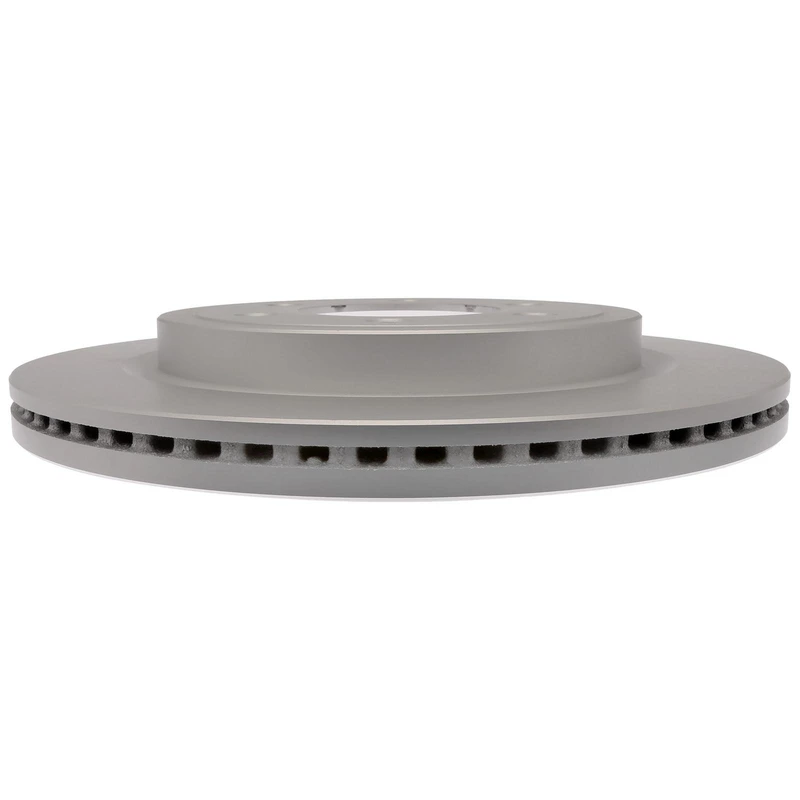

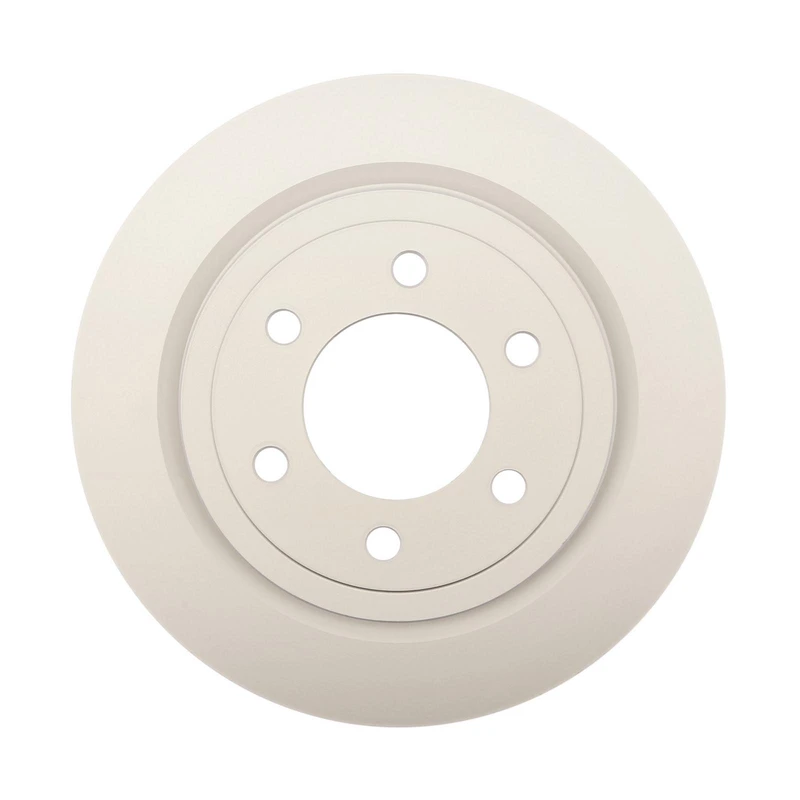

Raybestos 682263 Brake Rotor Rear Side
Part # 682263
Item # 1000W4UD
$99.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Rear Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Bearings Included
- No
- Center Hole Diameter (in)
- 3.547
- Center Hole Diameter (mm)
- 90.1
- Construction
- Full Cast
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.886
- Discard Thickness (mm)
- 22.5
- Grade Type
- Regular
- Harmonize Code
- 8708.30.5030
- Inside Diameter (in)
- 9.646
- Inside Diameter (mm)
- 245
- Mounting Bolt Hole Circle Diameter (in)
- 5.315
- Mounting Bolt Hole Circle Diameter (mm)
- 135
- Mounting Bolt Hole Diameter (in)
- 0.614
- Mounting Bolt Hole Diameter (mm)
- 15.6
- Mounting Bolt Hole Quantity
- 6
- Nominal Thickness (in)
- 0.945
- Nominal Thickness (mm)
- 24
- Outside Diameter (in)
- 13.228
- Outside Diameter (mm)
- 336
- Overall Height (in)
- 1.772
- Overall Height (mm)
- 45
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 6
- Surface Type
- Smooth
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JL3Z2C026D, JL3Z 2C026-D - OEM PART NUMBER, LINCOLN AUTOMOTIVE, LINCOLN, FORD
54236, 5-4236 - EUROROTOR, PAGID RACING, HELLA
JL3Z2C026A, JL3Z 2C026-A - OEM PART NUMBER, LINCOLN, FORD
12065153, 120.65153 - STOPTECH, CANADIAN TIRE, CENTRIC PARTS
12165153, 121.65153 - CENTRIC PARTS, CTEK
12865153R, 128.65153R - STOPTECH, CENTRIC PARTS
12665153SR, 126.65153SR - STOPTECH, CENTRIC PARTS
12865153L, 128.65153L - STOPTECH, CENTRIC PARTS
12665153SL, 126.65153SL - STOPTECH, CENTRIC PARTS
AR85195 - POWERSTOP, AUTOSPECIALTY
JL3Z2C026B, JL3Z 2C026-B - LINCOLN, FORD
YH637410P - CARQUEST, ADVANCE AUTO PARTS
12765153L, 127.65153L - STOPTECH, CENTRIC PARTS
BR901652 - DURAGO, DURA CORP
12765153R, 127.65153R - STOPTECH, CENTRIC PARTS
12665153CSR, 126.65153CSR - STOPTECH, CENTRIC PARTS
BR90165202, BR901652-02 - DURAGO, DURA CORP
12665153CSL, 126.65153CSL - STOPTECH, CENTRIC PARTS
2901114 - UAP, GEOTECH
BD180788E - WAGNER BRAKE
AR85195XPR - POWERSTOP
32065153, 320.65153 - CENTRIC PARTS
682263RGS - BRAKEBEST
60454267, 604-54267 - DYNAMIC
AR85195SCR - POWERSTOP
42334, 42-334 - QUALIS
AR85195EVC - POWERSTOP
901652 - PARTS MASTER
682263 - RAYBESTOS BRAKES
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Ford
Lincoln
| 2018 - 2023 | Lincoln | Navigator |
| 2018 - 2020 | Ford | F-150 |
| 2018 - 2022 | Ford | Expedition |
