Raybestos

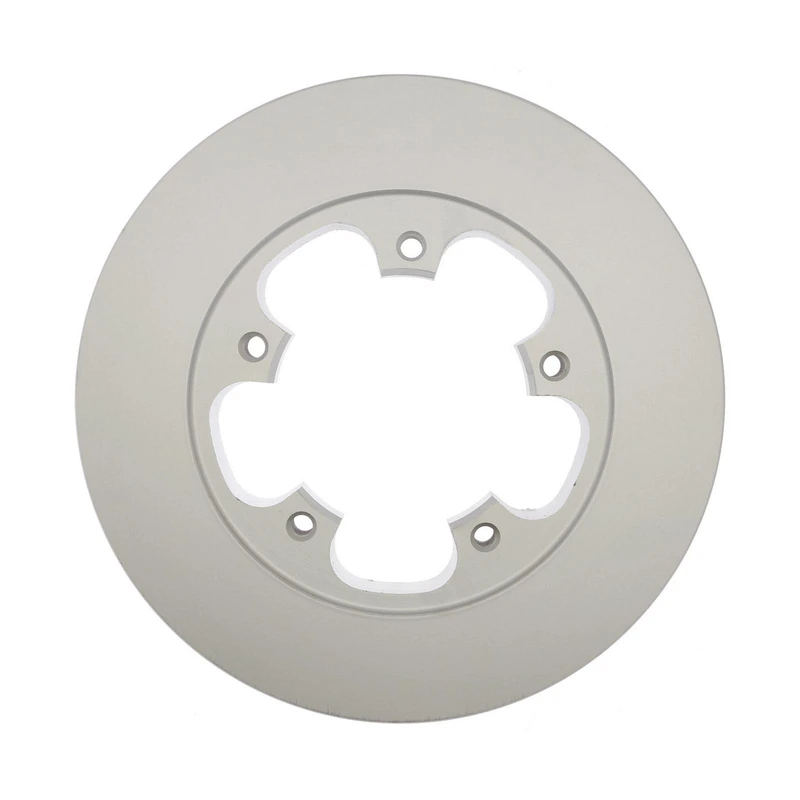

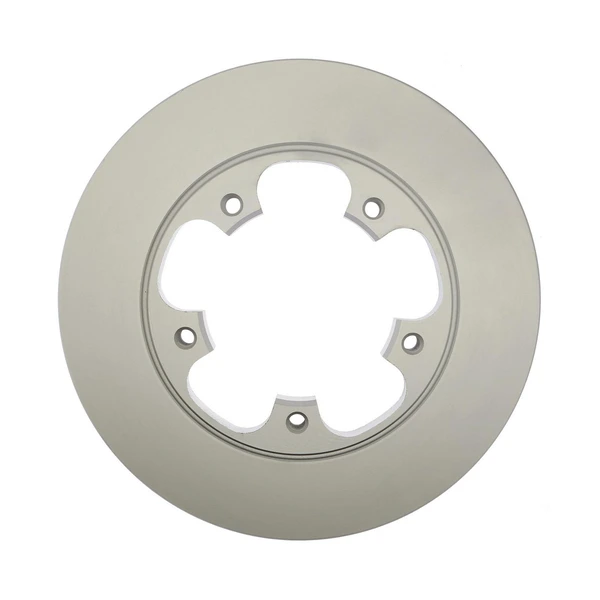

Raybestos 681939FZN Brake Rotor Rear Side

Part # 681939FZN
Item # 1000W8R8
$70.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Bolt Thread Pitch (in)
0.049
Bolt Thread Pitch (mm)
1.25
Center Hole Diameter (in)
4.8
Center Hole Diameter (mm)
121.9
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.59
Discard Thickness (mm)
15
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.874
Inside Diameter (mm)
200
Mounting Bolt Hole Circle Diameter (in)
5.906
Mounting Bolt Hole Circle Diameter (mm)
150
Mounting Bolt Hole Diameter (in)
0.472
Mounting Bolt Hole Diameter (mm)
12
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.71
Nominal Thickness (mm)
18.05
Outside Diameter (in)
12.126
Outside Diameter (mm)
308
Overall Height (in)
1.008
Overall Height (mm)
25.6
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
681939FZN
120.65145
121.65145
14-640003
320.65145
320.65145F
42310
600-54228
670126RGS
681939
681939R
75034
75034DG
75034DL
75035DG
75042DG
75042DL
AR85175EVC
AX901368
BD180665
BD180665E
BR901368
BRRC8
CK4Z2C026
CK4Z2C026C
CK4Z2C026E
G15632SD
KU2Z2V026E
R1368
YH527279

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Ford
2015 - 2019FordTransit-150
2015 - 2019FordTransit-250
2015 - 2019FordTransit-350
2020 - 2023FordTransit-150
2020 - 2023FordTransit-250
2020 - 2023FordTransit-350
