Raybestos

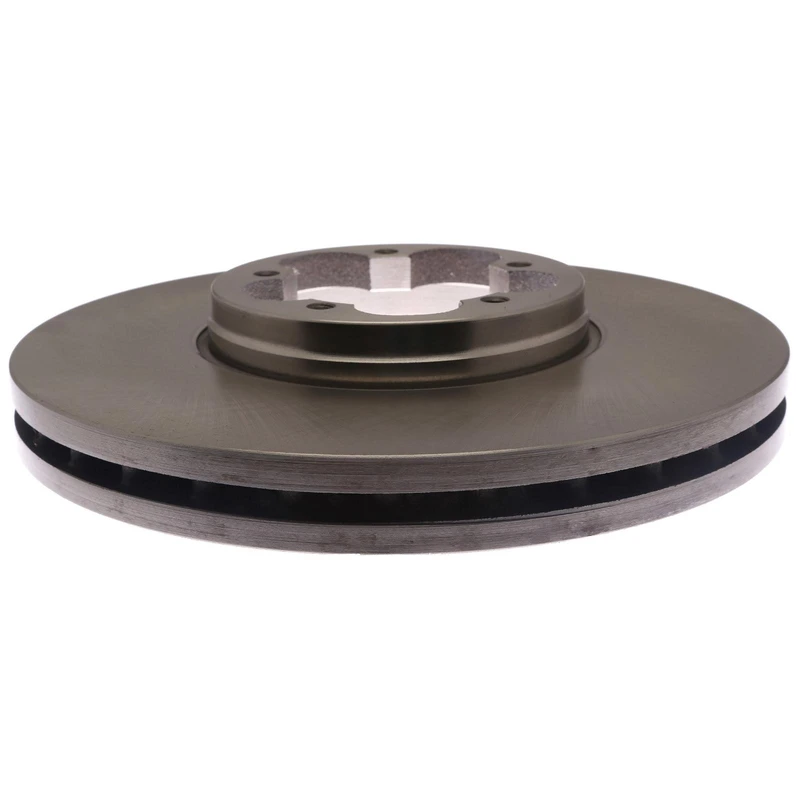

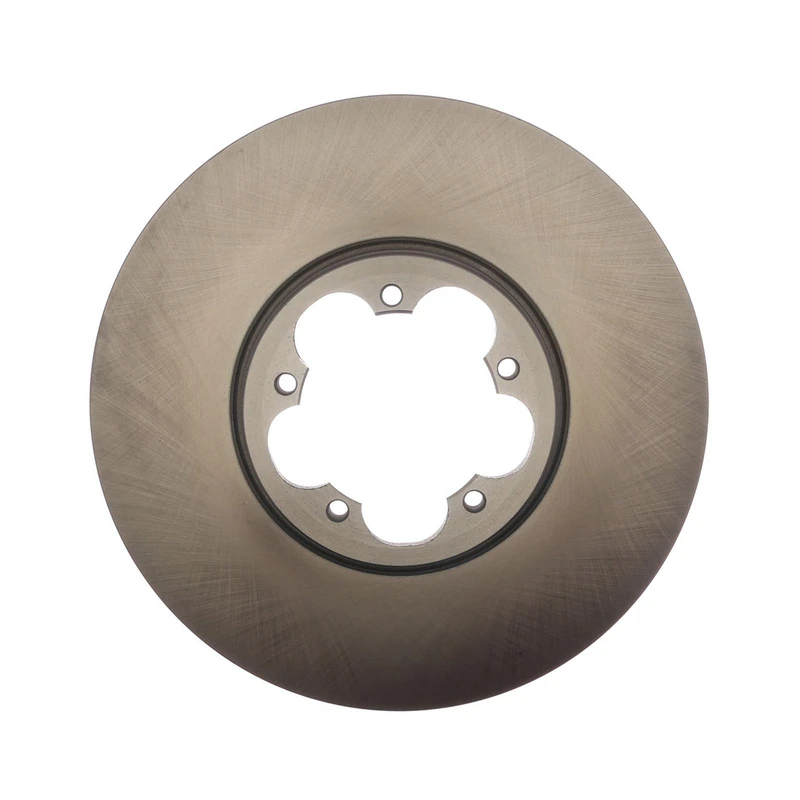

Raybestos 681781R Brake Rotor Front Side

Part # 681781R
Item # 1000UP77
$96.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Bolt Thread Pitch (in)
0.059
Bolt Thread Pitch (mm)
1.5
Center Hole Diameter (in)
3.67
Center Hole Diameter (mm)
93.2
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.181
Discard Thickness (mm)
30
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.449
Inside Diameter (mm)
163.8
Mounting Bolt Hole Circle Diameter (in)
4.37
Mounting Bolt Hole Circle Diameter (mm)
111
Mounting Bolt Hole Diameter (in)
0.394
Mounting Bolt Hole Diameter (mm)
10
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.303
Nominal Thickness (mm)
33.1
Outside Diameter (in)
12.126
Outside Diameter (mm)
308
Overall Height (in)
2.181
Overall Height (mm)
55.4
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
681781R
120.65150
121.65150
121.99097
125.65150
1842633
1867729
2256034
320.65150
320.65150F
355123131
42313
47090
54310
600-54232
604-54270
621688RGS
681781
681781FZN
75032
75032DG
75032DL
901670G
AR85179EVC
AX901370
AX901670
BD180664
BD180664E
BR901370
BR901670

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Ford
2015 - 2019FordTransit-150
2015 - 2019FordTransit-250
2015 - 2019FordTransit-350
2020 - 2023FordTransit-150
2020 - 2023FordTransit-250
2020 - 2023FordTransit-350
2022 - 2023FordE-Transit
