Raybestos

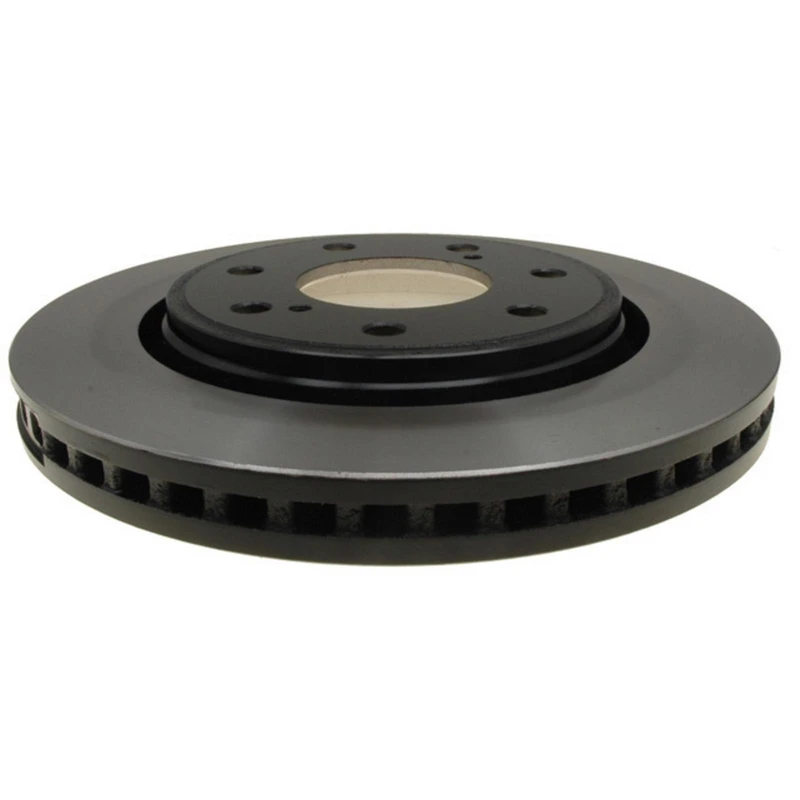

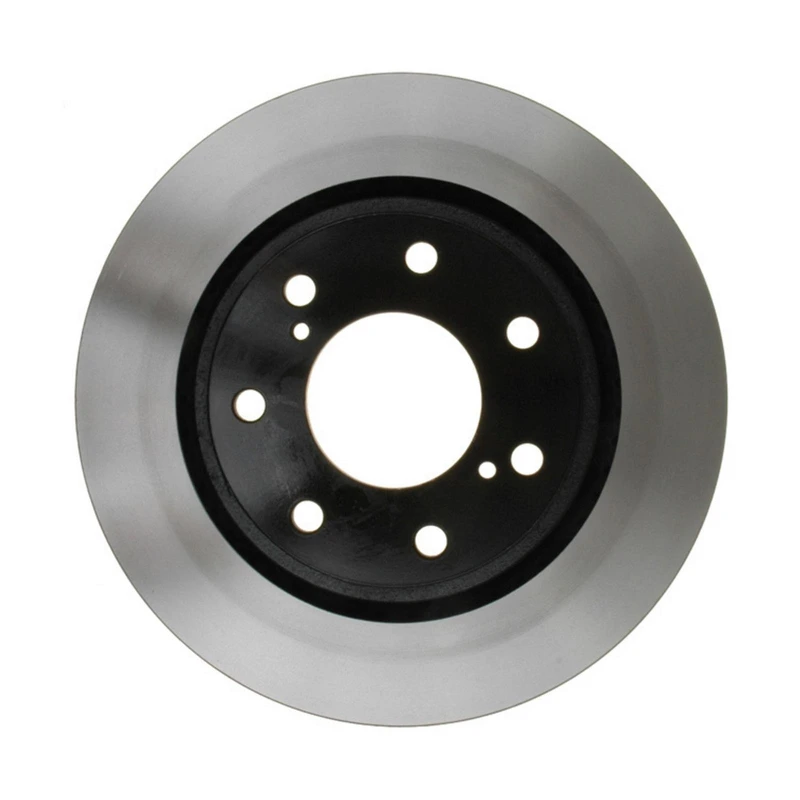

Raybestos 680768 Brake Rotor Front Side

Part # 680768
Item # 1000VVLL
$133.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.545
Center Hole Diameter (mm)
90.05
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.26
Discard Thickness (mm)
32
Harmonize Code
8708.30.5030
Inside Diameter (in)
9.302
Inside Diameter (mm)
236.25
Mounting Bolt Hole Circle Diameter (in)
5.906
Mounting Bolt Hole Circle Diameter (mm)
150
Mounting Bolt Hole Diameter (in)
0.618
Mounting Bolt Hole Diameter (mm)
15.7
Mounting Bolt Hole Quantity
7
Nominal Thickness (in)
1.34
Nominal Thickness (mm)
34.05
Outside Diameter (in)
13.776
Outside Diameter (mm)
349.9
Overall Height (in)
1.949
Overall Height (mm)
49.5
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
7
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54173 - DURALAST, PAGID RACING, HELLA, NEWTEK AUTOMOTIVE USA, AIMCO
54451 - PAGID RACING, HELLA, ULTRA BRAKE
12065134, 120.65134 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12665134SL, 126.65134SL - STOPTECH, CENTRIC PARTS
12665134CSL, 126.65134CSL - STOPTECH, CENTRIC PARTS
12165134, 121.65134 - CENTRIC PARTS, CTEK
680768FZN - RAYBESTOS BRAKES, BRAKEBEST
12765134R, 127.65134R - STOPTECH, CENTRIC PARTS
12065134CRY, 120.65134CRY - STOPTECH, CENTRIC PARTS
12665134SR, 126.65134SR - STOPTECH, CENTRIC PARTS
YH290860 - CARQUEST, ADVANCE AUTO PARTS
20010326 - BOSCH, BRAKEBEST
BD180286 - MONROE BRAKES, WAGNER BRAKE
680768PER - RAYBESTOS BRAKES, BRAKEBEST
680768 - RAYBESTOS BRAKES, BRAKEBEST
900848 - DURAGO, PARTS MASTER
12765134L, 127.65134L - STOPTECH, CENTRIC PARTS
20011514, 2001-1514 - BOSCH, BRAKEBEST
42275 - CANADIAN TIRE, QUALIS
12865134L, 128.65134L - STOPTECH, CENTRIC PARTS
CL3Z1125C - OEM PART NUMBER, FORD
YH145698 - CARQUEST, ADVANCE AUTO PARTS
12865134R, 128.65134R - STOPTECH, CENTRIC PARTS
PRT6053 - BENDIX PREMIUM, BENDIX
CL3Z1125A - OEM PART NUMBER, FORD
BR54173 - DURAGO, DURA CORP
6621216 - WINHERE, PERFECT STOP
BR900848 - DURAGO, DURA CORP
AL3Z1125A, AL3Z-1125-A - OEM PART NUMBER, FORD
12665134CSR, 126.65134CSR - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Ford
2010 - 2014FordF-150
2012 - 2014FordLobo
