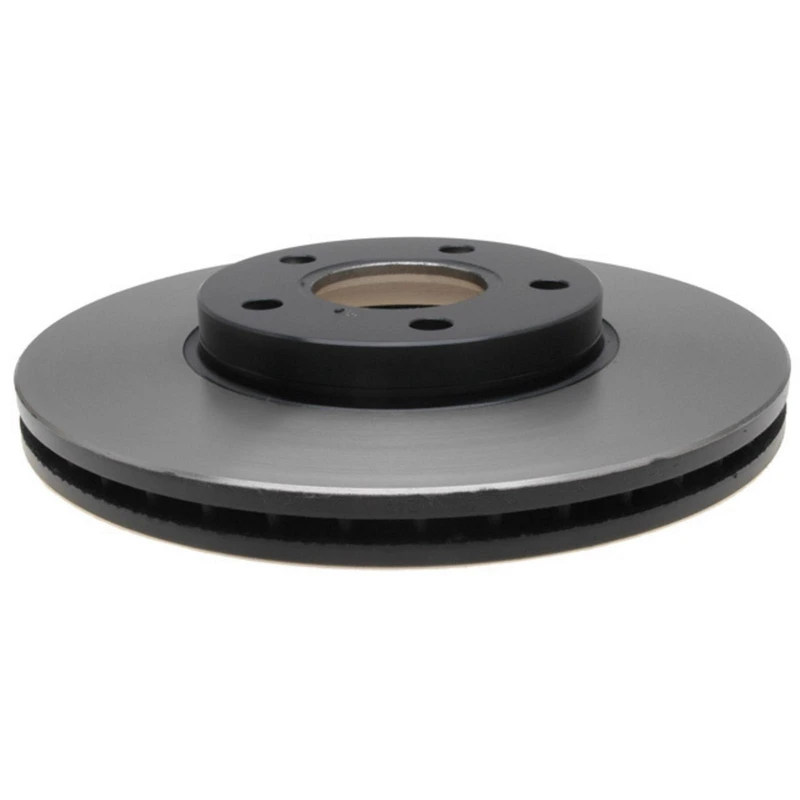

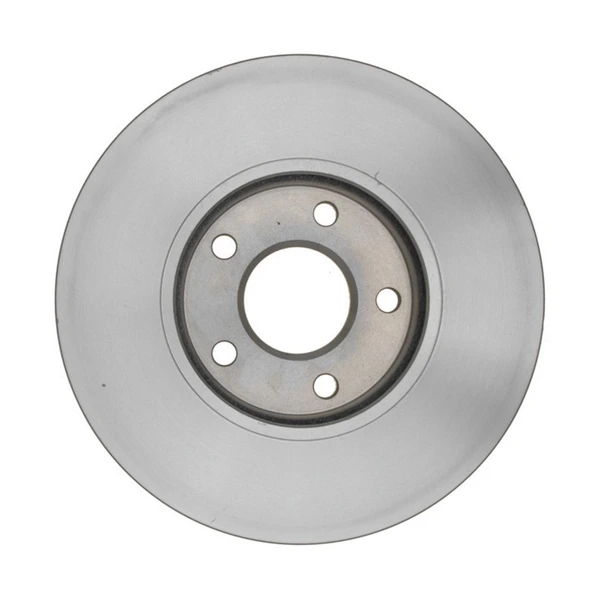

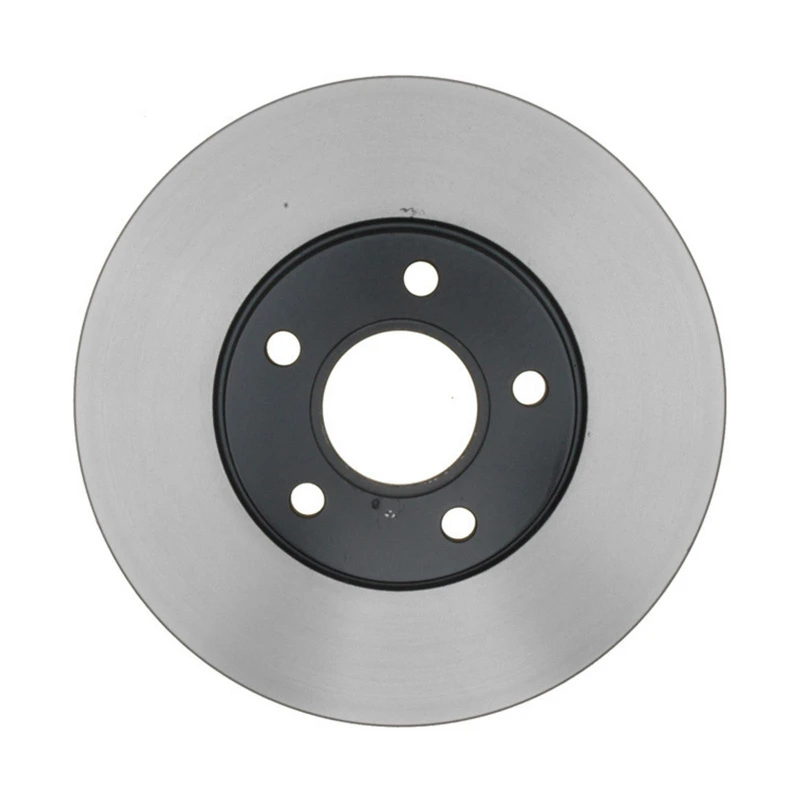

Raybestos 680765 Brake Rotor Front Side
Part # 680765
Item # 1000VWR6
$83.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.5
- Center Hole Diameter (mm)
- 63.5
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.88
- Discard Thickness (mm)
- 22.35
- Harmonize Code
- 8708.30.5030
- Inside Diameter (in)
- 6.247
- Inside Diameter (mm)
- 158.65
- Mounting Bolt Hole Circle Diameter (in)
- 4.252
- Mounting Bolt Hole Circle Diameter (mm)
- 108
- Mounting Bolt Hole Diameter (in)
- 0.542
- Mounting Bolt Hole Diameter (mm)
- 13.75
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.946
- Nominal Thickness (mm)
- 24.05
- Outside Diameter (in)
- 10.945
- Outside Diameter (mm)
- 278
- Overall Height (in)
- 1.748
- Overall Height (mm)
- 44.4
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- Surface Type
- Smooth
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
BR900850 - DURAGO, DURA CORP
12165132, 121.65132 - CENTRIC PARTS, CTEK
12665132SL, 126.65132SL - STOPTECH, CENTRIC PARTS
42269 - CANADIAN TIRE, QUALIS
12765132L, 127.65132L - STOPTECH, CENTRIC PARTS
900850 - DURAGO, PARTS MASTER
12765132R, 127.65132R - STOPTECH, CENTRIC PARTS
YH286284 - CARQUEST, ADVANCE AUTO PARTS
12065132CRY, 120.65132CRY - STOPTECH, CENTRIC PARTS
75002, 750.02, 75-002 - DURALAST, AUTOZONE
12665132SR, 126.65132SR - STOPTECH, CENTRIC PARTS
54172 - NEWTEK AUTOMOTIVE USA, AIMCO
662876 - WINHERE, PERFECT STOP
680765R - RAYBESTOS BRAKES, BRAKEBEST
680765 - RAYBESTOS BRAKES, BRAKEBEST
2T1Z1125A - OEM PART NUMBER, FORD
12865132R, 128.65132R - STOPTECH, CENTRIC PARTS
AX900850 - AUTO EXTRA, AUTOXTRA
12065132, 120.65132 - STOPTECH, CENTRIC PARTS
12865132L, 128.65132L - STOPTECH, CENTRIC PARTS
32065132, 320.65132 - STOPTECH, CENTRIC PARTS
PRT5988 - BENDIX PREMIUM, BENDIX
12865132CR, 128.65132CR - STOPTECH, CENTRIC PARTS
BR90085002, BR900850-02 - DURAGO, DURA CORP
BR54172 - DURAGO, DURA CORP
12865132CL, 128.65132CL - STOPTECH, CENTRIC PARTS
680765FZN - RAYBESTOS BRAKES, BRAKEBEST
12665132CSL, 126.65132CSL - STOPTECH, CENTRIC PARTS
12665132CSR, 126.65132CSR - STOPTECH, CENTRIC PARTS
355110281 - PAGID RACING, HELLA PAGID
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Ford
| 2010 - 2013 | Ford | Transit Connect |
