Raybestos

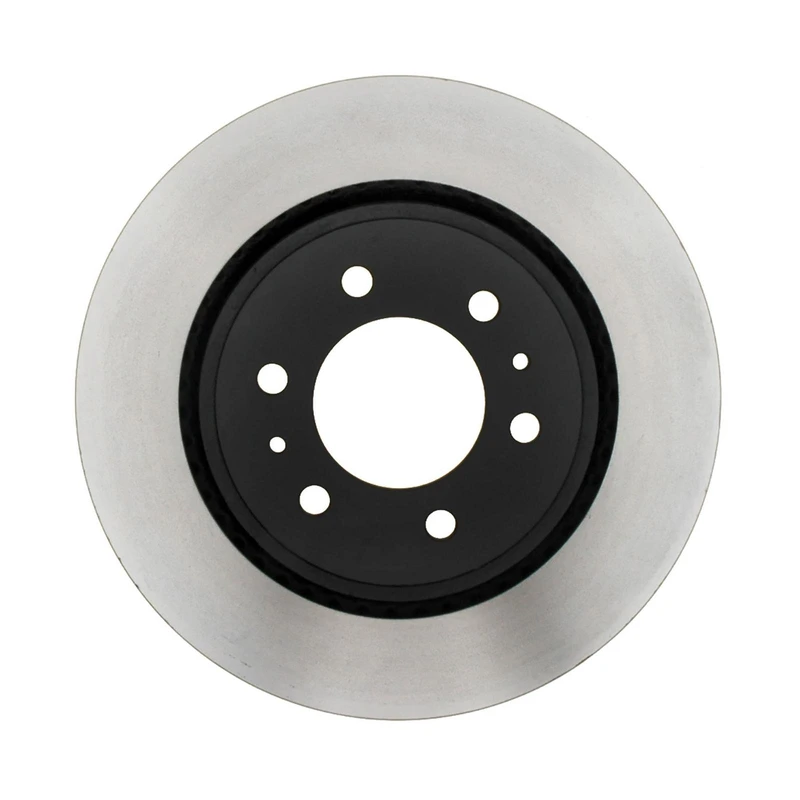

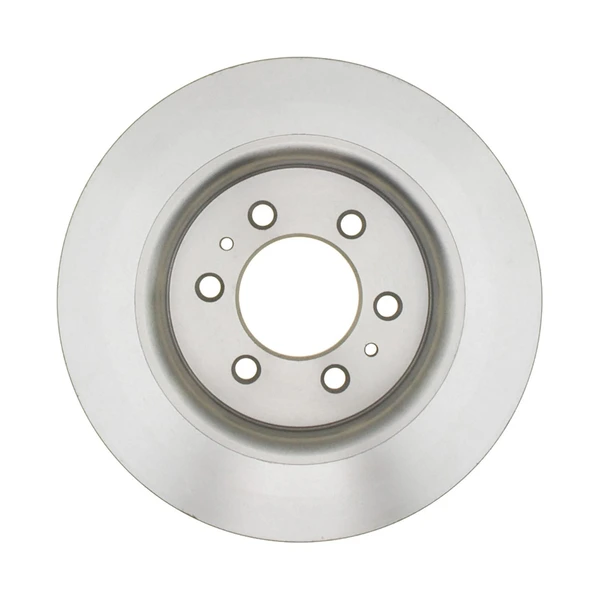

Raybestos 680508 Brake Rotor Front Side

Part # 680508
Item # 1000VR78
$126.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.54
Center Hole Diameter (mm)
89.9
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.26
Discard Thickness (mm)
32
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.315
Mounting Bolt Hole Circle Diameter (mm)
135
Mounting Bolt Hole Diameter (in)
0.636
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.339
Nominal Thickness (mm)
34
Outside Diameter (in)
13.78
Outside Diameter (mm)
350
Overall Height (in)
1.95
Overall Height (mm)
49.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54153 - PAGID RACING, HELLA, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, ULTRA BRAKE
42251 - DURALAST, CANADIAN TIRE, AUTOZONE, AIMCO, QUALIS
12065119, 120.65119 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD126433 - MONROE BRAKES, WAGNER BRAKE, ADVANCE AUTO PARTS
8L1Z1125A, 8L1Z-1125-A, 8L1Z 1125-A - OEM PART NUMBER, LINCOLN, FORD
JL3Z1125A, JL3Z 1125-A, JL3Z-1125-A - OEM PART NUMBER, LINCOLN, FORD
JL3Z1125C, JL3Z 1125-C, JL3Z-1125-C - OEM PART NUMBER, LINCOLN, FORD
7U2Z1V125HC, 7U2Z 1V125-HC, 7U2Z-1V125-HC - OEM PART NUMBER, LINCOLN, FORD
2054153, 20-54153 - UAP, PROMAX, GEOTECH
CL3Z1125B, CL3Z-1125-B, CL3Z 1125-B - OEM PART NUMBER, LINCOLN, FORD
AL3Z1125B, AL3Z-1125-B, AL3Z 1125-B - OEM PART NUMBER, LINCOLN, FORD
7L1Z1125A, 7L1Z-1125-A, 7L1Z 1125-A - OEM PART NUMBER, LINCOLN, FORD
680508PER - RAYBESTOS BRAKES, BRAKEBEST
9L1Z1125A - OEM PART NUMBER, FORD
680508FZN - RAYBESTOS BRAKES, BRAKEBEST
PRT5698 - BENDIX PREMIUM, BENDIX
12165119, 121.65119 - CENTRIC PARTS, CTEK
BR54153 - DURAGO, DURA CORP
BR90084602, BR900846-02 - DURAGO, DURA CORP
54233, 5-4233 - EUROROTOR, ULTRA BRAKE
12865119L, 128.65119L - STOPTECH, CENTRIC PARTS
12865119R, 128.65119R - STOPTECH, CENTRIC PARTS
32065119, 320.65119 - STOPTECH, CENTRIC PARTS
BR900368 - DURAGO, DURA CORP
12865119CR, 128.65119CR - STOPTECH, CENTRIC PARTS
12665119SR, 126.65119SR - STOPTECH, CENTRIC PARTS
12865119CL, 128.65119CL - STOPTECH, CENTRIC PARTS
BR900848 - DURAGO, DURA CORP
22765119R, 227.65119R - STOPTECH, CENTRIC PARTS
BR900846 - DURAGO, DURA CORP

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Ford
Lincoln
2010 - 2014FordF-150
2012 - 2014FordLobo
2007 - 2023LincolnNavigator
2010 - 2010FordLobo
2015 - 2020FordF-150
2007 - 2021FordExpedition
