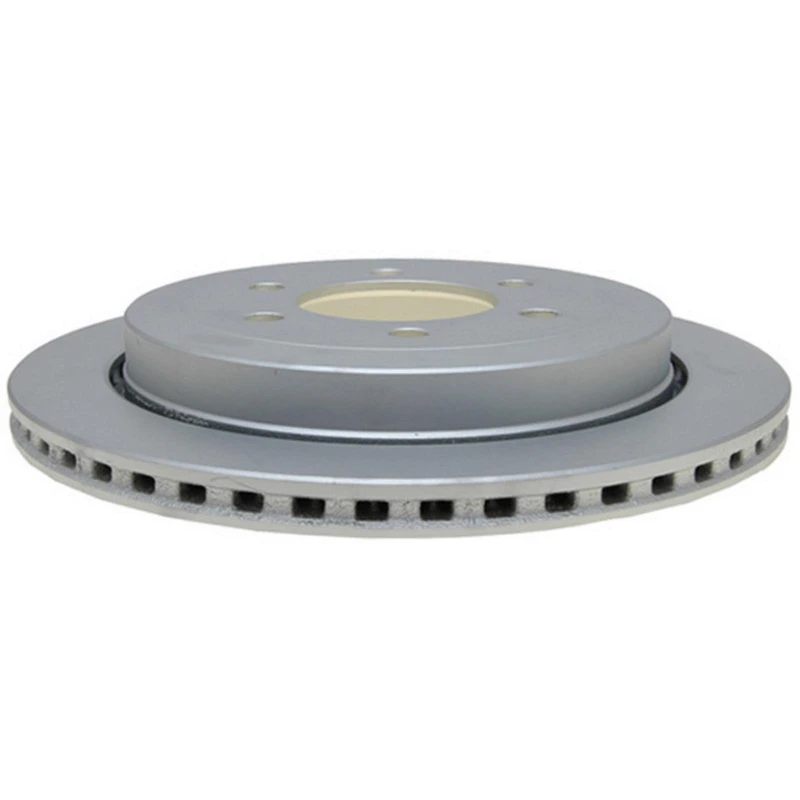

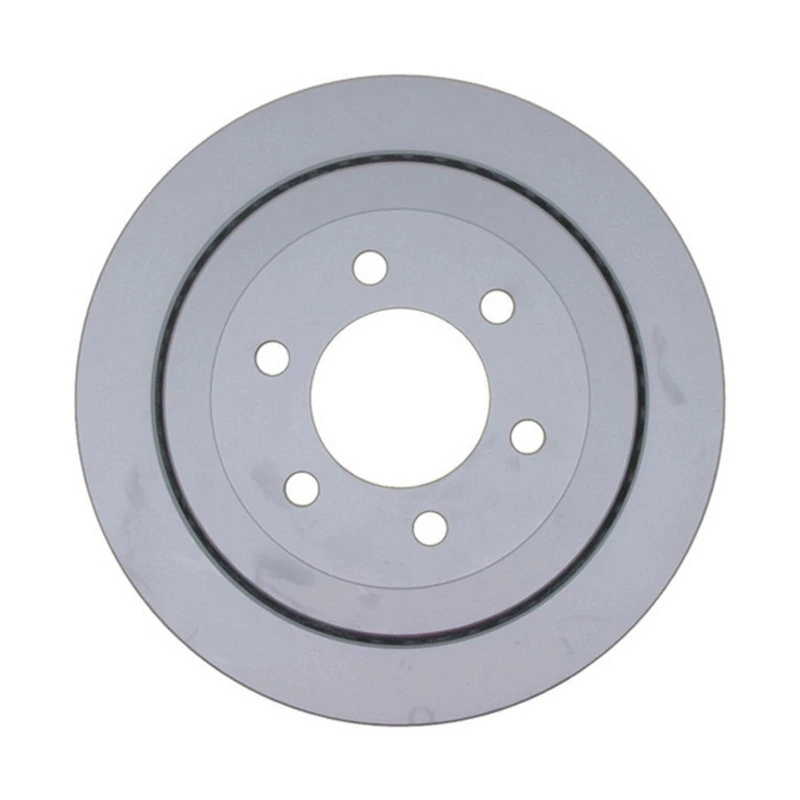

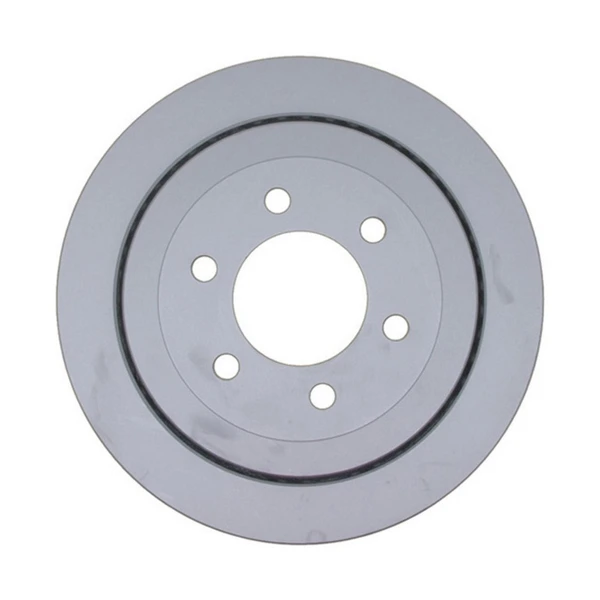

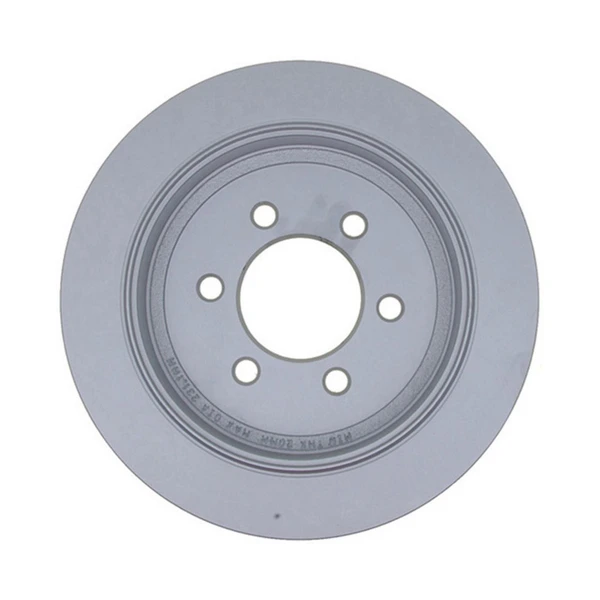

Raybestos 680507P Brake Rotor Rear Side
Part # 680507P
Item # 1000VNRZ
$175.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Rear Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 3.543
- Center Hole Diameter (mm)
- 90
- Conventional Or Drum-In-Hat Type Rotor
- Drum-In-Hat
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.787
- Discard Thickness (mm)
- 20
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 5.315
- Mounting Bolt Hole Circle Diameter (mm)
- 135
- Mounting Bolt Hole Diameter (in)
- 0.636
- Mounting Bolt Hole Diameter (mm)
- 16.15
- Mounting Bolt Hole Quantity
- 6
- Nominal Thickness (in)
- 0.866
- Nominal Thickness (mm)
- 22
- Outside Diameter (in)
- 13.474
- Outside Diameter (mm)
- 342.25
- Overall Height (in)
- 2.204
- Overall Height (mm)
- 56
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 6
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54152, 5-4152 - DURALAST, PAGID RACING, HELLA, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
42252 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
AL1Z2C026AA, AL1Z 2C026-AA, AL1Z-2C026-AA - OEM PART NUMBER, LINCOLN, FORD
CL1Z2C026A, CL1Z-2C026-A, CL1Z 2C026-A - OEM PART NUMBER, LINCOLN, FORD
AL1Z2C026B, AL1Z-2C026-B, AL1Z 2C026-B - OEM PART NUMBER, LINCOLN, FORD
12065120, 120.65120 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD126431 - MONROE BRAKES, WAGNER BRAKE, ADVANCE AUTO PARTS
2054152, 20-54152 - UAP, PROMAX, GEOTECH
PRT5699 - BENDIX PREMIUM, BENDIX
12765120CR, 127.65120CR - STOPTECH, CENTRIC PARTS
BR90036602, BR900366-02 - DURAGO, DURA CORP
12765120CL, 127.65120CL - STOPTECH, CENTRIC PARTS
12165120, 121.65120 - CENTRIC PARTS, CTEK
BR900366 - DURAGO, DURA CORP
12665120SL, 126.65120SL - STOPTECH, CENTRIC PARTS
7L1Z2C026A - OEM PART NUMBER, FORD
680507FZN - RAYBESTOS BRAKES, BRAKEBEST
12665120CSR, 126.65120CSR - STOPTECH, CENTRIC PARTS
12665120SR, 126.65120SR - STOPTECH, CENTRIC PARTS
12665120CSL, 126.65120CSL - STOPTECH, CENTRIC PARTS
32065120, 320.65120 - STOPTECH, CENTRIC PARTS
6620749 - WINHERE, PERFECT STOP
22665120SL, 226.65120SL - STOPTECH, CENTRIC PARTS
22665120SR, 226.65120SR - STOPTECH, CENTRIC PARTS
12765120L, 127.65120L - STOPTECH, CENTRIC PARTS
12765120R, 127.65120R - STOPTECH, CENTRIC PARTS
YH145699P - CARQUEST, ADVANCE AUTO PARTS
680507R - RAYBESTOS BRAKES, BRAKEBEST
AX900366 - AUTO EXTRA, AUTOXTRA
680507 - RAYBESTOS BRAKES, BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Ford
Lincoln
| 2007 - 2017 | Ford | Expedition |
| 2007 - 2017 | Lincoln | Navigator |
