Raybestos

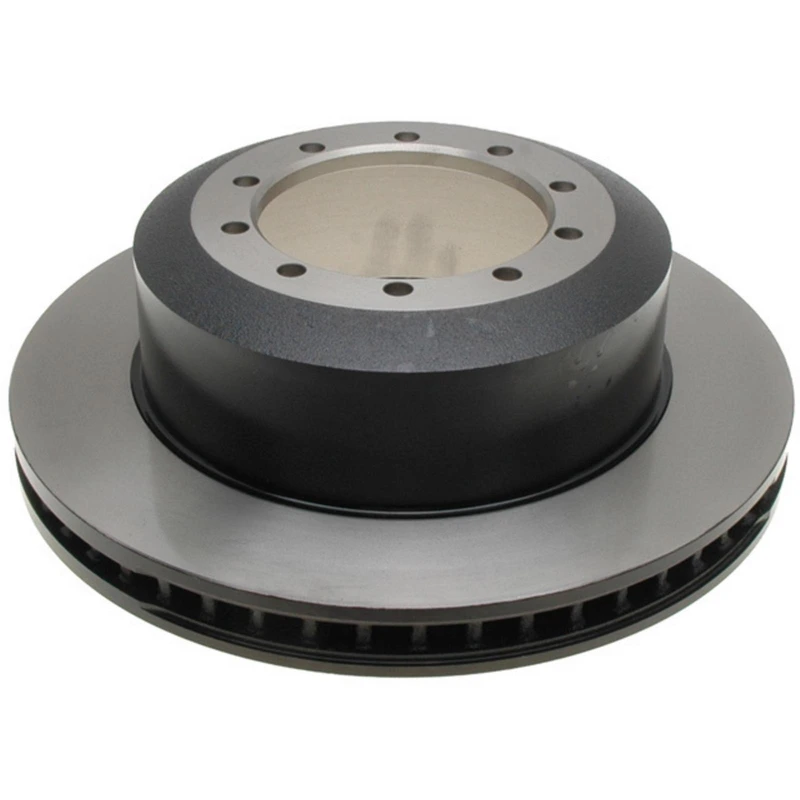

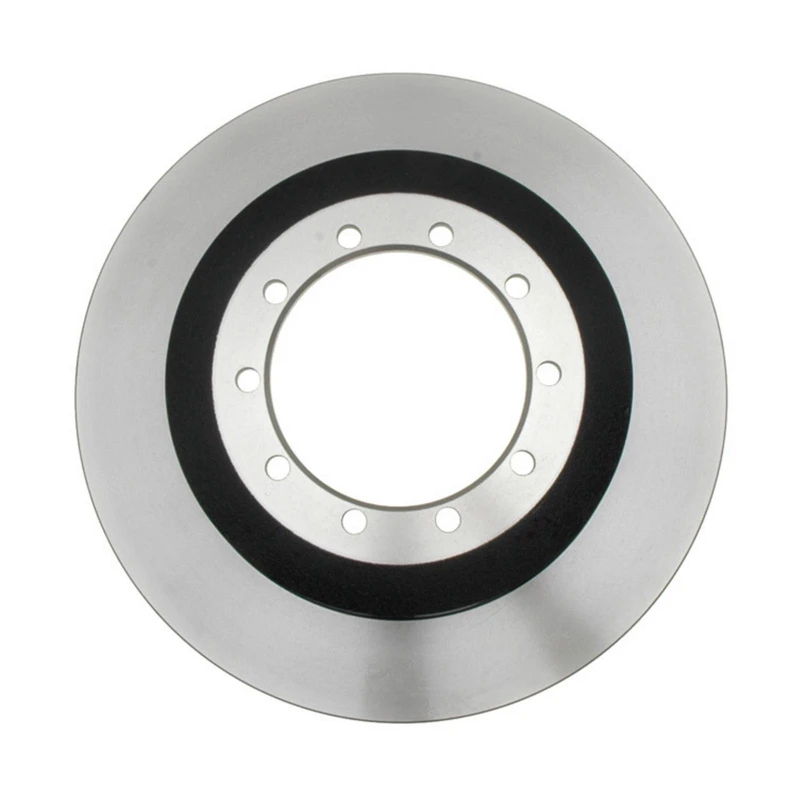

Raybestos 680374 Brake Rotor Rear Side

Part # 680374
Item # 1000VNXL
$183.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
5.488
Center Hole Diameter (mm)
139.4
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.472
Discard Thickness (mm)
37.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
6.417
Mounting Bolt Hole Circle Diameter (mm)
163
Mounting Bolt Hole Diameter (in)
0.507
Mounting Bolt Hole Diameter (mm)
12.9
Mounting Bolt Hole Quantity
10
Nominal Thickness (in)
1.54
Nominal Thickness (mm)
39.1
Outside Diameter (in)
15.354
Outside Diameter (mm)
390
Overall Height (in)
4.89
Overall Height (mm)
124.2
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
10
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54138, 5-4138 - PAGID RACING, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
42250 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
BR900359 - DURAGO, DURA CORP, DURABRAKE
900359 - DURAGO, PARTS MASTER
12665115CSR, 126.65115CSR - STOPTECH, CENTRIC PARTS
2608016C1 - OEM PART NUMBER, CHRYSLER
12865115R, 128.65115R - STOPTECH, CENTRIC PARTS
PRT6228 - BENDIX PREMIUM, BENDIX
BR54138 - DURAGO, DURA CORP
12665115SL, 126.65115SL - STOPTECH, CENTRIC PARTS
6620813 - WINHERE, PERFECT STOP
32067078, 320.67078 - STOPTECH, CENTRIC PARTS
12865115L, 128.65115L - STOPTECH, CENTRIC PARTS
YH145162 - CARQUEST, ADVANCE AUTO PARTS
680374FZN - RAYBESTOS BRAKES, BRAKEBEST
12765115R, 127.65115R - STOPTECH, CENTRIC PARTS
PRT5565 - BENDIX PREMIUM, BENDIX
5C3Z2C026CA - OEM PART NUMBER, FORD
680374R - RAYBESTOS BRAKES, BRAKEBEST
YH145731 - CARQUEST, ADVANCE AUTO PARTS
12865115CL, 128.65115CL - STOPTECH, CENTRIC PARTS
680374 - RAYBESTOS BRAKES, BRAKEBEST
12665115SR, 126.65115SR - STOPTECH, CENTRIC PARTS
12865115CR, 128.65115CR - STOPTECH, CENTRIC PARTS
12067078CRY, 120.67078CRY - STOPTECH, CENTRIC PARTS
12665115CSL, 126.65115CSL - STOPTECH, CENTRIC PARTS
12765115L, 127.65115L - STOPTECH, CENTRIC PARTS
1454138, 14-54138 - PROMAX
DL42250 - AUTOZONE
BD126443E - WAGNER BRAKE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Ford
International
2010 - 2018InternationalTerraStar
2015 - 2016FordF-350 Super Duty
2006 - 2009InternationalCF500
2006 - 2008InternationalCF600
2015 - 2016FordF-350 Super Duty
2015 - 2016FordF-350 Super Duty
2015 - 2016FordF-350 Super Duty
2006 - 2010FordLCF
2005 - 2009FordF-450 Super Duty
2005 - 2016FordF-550 Super Duty
2010 - 2016FordF-450 Super Duty
2015 - 2016FordF-350 Super Duty
2015 - 2016FordF-350 Super Duty
