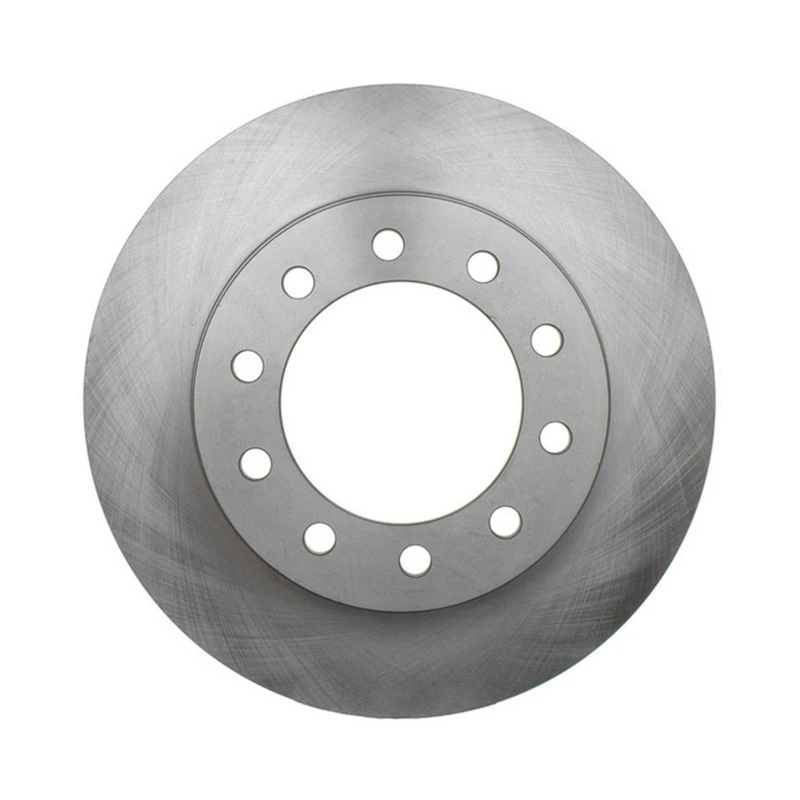

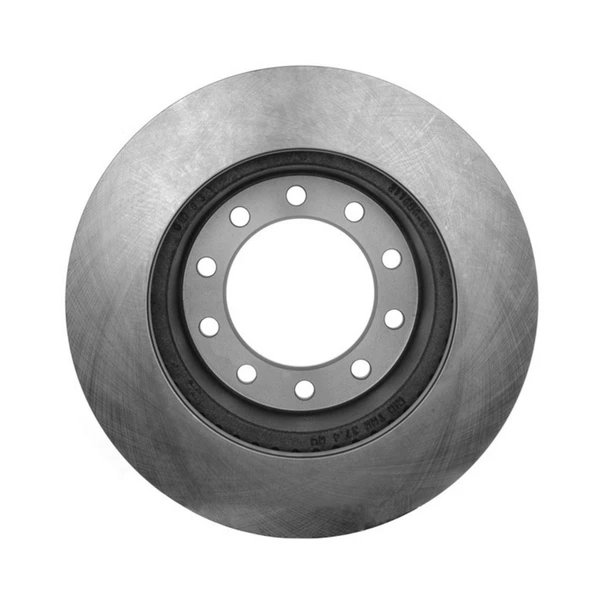

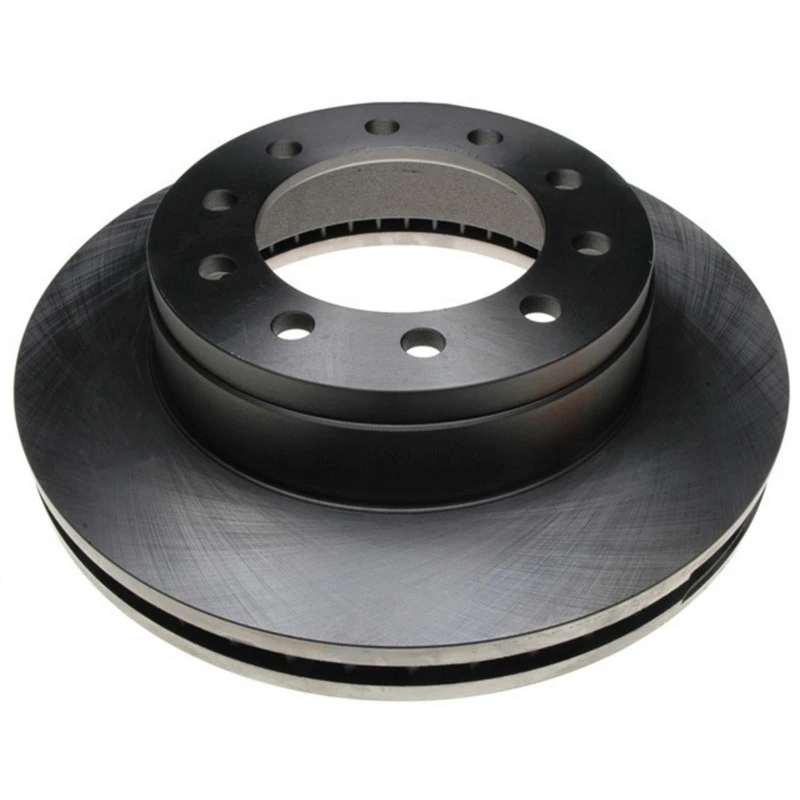

Raybestos 680305R Brake Rotor Front Side
Part # 680305R
Item # 1000S591
$141.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 5.09
- Center Hole Diameter (mm)
- 129.3
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.472
- Discard Thickness (mm)
- 37.4
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 6.693
- Mounting Bolt Hole Circle Diameter (mm)
- 170
- Mounting Bolt Hole Diameter (in)
- 0.636
- Mounting Bolt Hole Diameter (mm)
- 16.15
- Mounting Bolt Hole Quantity
- 10
- Nominal Thickness (in)
- 1.535
- Nominal Thickness (mm)
- 39
- Outside Diameter (in)
- 14.53
- Outside Diameter (mm)
- 369.05
- Overall Height (in)
- 3.875
- Overall Height (mm)
- 98.4
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 10
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54128 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
12665111SL, 126.65111SL - STOPTECH, CENTRIC PARTS
12665111CSL, 126.65111CSL - STOPTECH, CENTRIC PARTS
12165111, 121.65111 - CENTRIC PARTS, CTEK
AX54128 - AUTO EXTRA, AUTOXTRA
12065111CRY, 120.65111CRY - STOPTECH, CENTRIC PARTS
12665111SR, 126.65111SR - STOPTECH, CENTRIC PARTS
PRT5615 - BENDIX PREMIUM, BENDIX
680305FZN - RAYBESTOS BRAKES, BRAKEBEST
680305R - RAYBESTOS BRAKES, BRAKEBEST
6620511 - WINHERE, PERFECT STOP
680305 - RAYBESTOS BRAKES, BRAKEBEST
12765111L, 127.65111L - STOPTECH, CENTRIC PARTS
BR54128 - DURAGO, DURA CORP
12765111R, 127.65111R - STOPTECH, CENTRIC PARTS
5C3Z1125CA - OEM PART NUMBER, FORD
12065111, 120.65111 - STOPTECH, CENTRIC PARTS
YH145615 - CARQUEST, ADVANCE AUTO PARTS
32065111, 320.65111 - STOPTECH, CENTRIC PARTS
54128DL - DURALAST, AUTOZONE
20010476 - BOSCH, BRAKEBEST
145615, 145-615, 14-5615 - BENDIX, PROMAX
12665111CSR, 126.65111CSR - STOPTECH, CENTRIC PARTS
36809801, 368.098.01 - PERFORMANCE FRICTION
211686C, 211686-C - CASTING NUMBERS
AR85113EVC - POWERSTOP
YH145615P - ADVANCE AUTO PARTS
BRRF65 - MOTORCRAFT
126277 - PARTS MASTER
54128DG - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Ford
International
| 2005 - 2016 | Ford | F-450 Super Duty |
| 2005 - 2016 | Ford | F-550 Super Duty |
| 2015 - 2016 | Ford | F-350 Super Duty |
| 2006 - 2007 | International | CF500 |
| 2006 - 2007 | International | CF600 |
