Raybestos

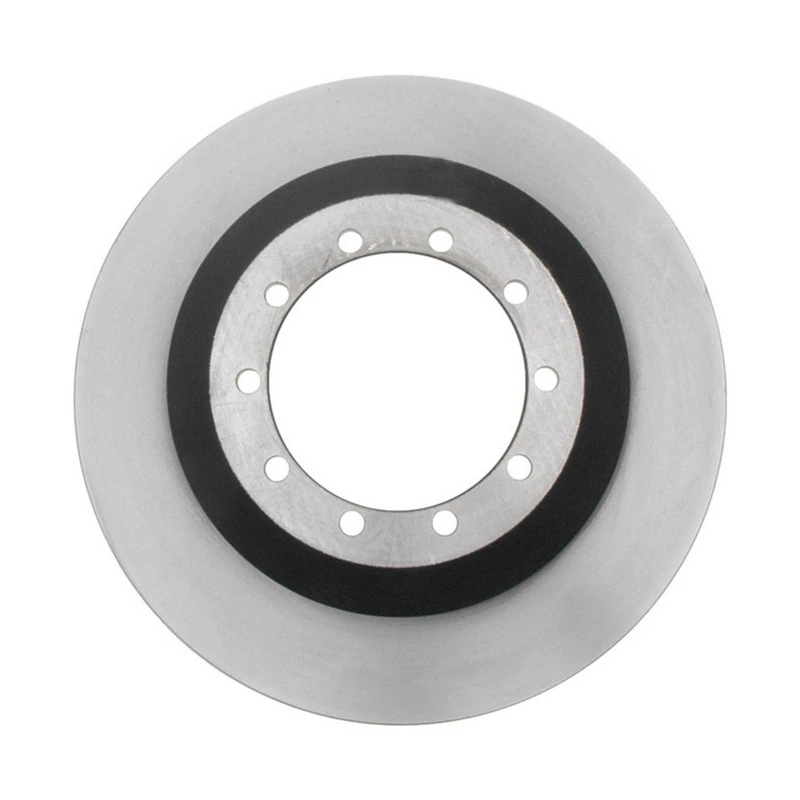

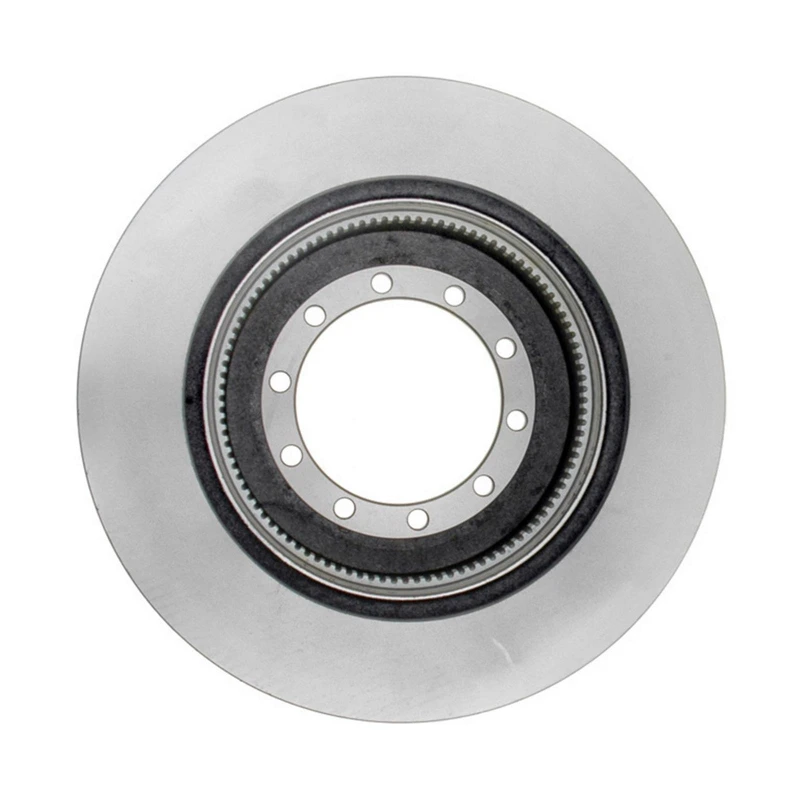

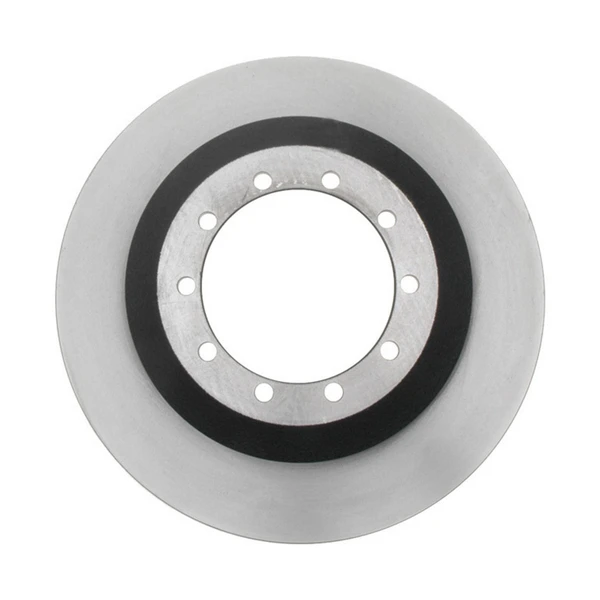

Raybestos 680191 Brake Rotor Rear Side

Part # 680191
Item # 1000VDHP
$230.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
ABS Tone Ring Included
Yes
Center Hole Diameter (in)
5.49
Center Hole Diameter (mm)
139.45
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Discard Thickness (in)
1.417
Discard Thickness (mm)
36
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
6.417
Mounting Bolt Hole Circle Diameter (mm)
163
Mounting Bolt Hole Diameter (in)
0.511
Mounting Bolt Hole Diameter (mm)
13
Mounting Bolt Hole Quantity
10
Nominal Thickness (in)
1.5
Nominal Thickness (mm)
38.1
Outside Diameter (in)
15.55
Outside Diameter (mm)
394.95
Overall Height (in)
4.87
Overall Height (mm)
123.7
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
10
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54119, 5-4119 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
12165092, 121.65092 - CANADIAN TIRE, CENTRIC PARTS, CTEK
BR54119 - DURAGO, DURA CORP
12665092SL, 126.65092SL - STOPTECH, CENTRIC PARTS
680191, 68-0191 - RAYBESTOS BRAKES, BRAKEBEST
680191R - RAYBESTOS BRAKES, BRAKEBEST
12065092CRY, 120.65092CRY - STOPTECH, CENTRIC PARTS
12065092, 120.65092 - STOPTECH, CENTRIC PARTS
6620758 - WINHERE, PERFECT STOP
1C3Z2C026AA - OEM PART NUMBER, FORD
12665092SR, 126.65092SR - STOPTECH, CENTRIC PARTS
6U9Z2C026B - OEM PART NUMBER, FORD
6U9Z2C026A - OEM PART NUMBER, FORD
12765092L, 127.65092L - STOPTECH, CENTRIC PARTS
12765092R, 127.65092R - STOPTECH, CENTRIC PARTS
54423 - EUROROTOR, ULTRA BRAKE
12665092CSR, 126.65092CSR - STOPTECH, CENTRIC PARTS
12665092CSL, 126.65092CSL - STOPTECH, CENTRIC PARTS
1454119, 14-54119 - PROMAX
145565 - BENDIX
326211 - CASTING NUMBERS
211201C, 211201-C - CASTING NUMBERS
AX54119 - AUTOXTRA
32065092F, 320.65092F - CENTRIC PARTS
BD125788 - WAGNER BRAKE
27357, 27-357 - BREMBO
54119DG - AUTOZONE
680191RGS - BRAKEBEST
X51671

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (66)vehicles
All
Fleetwood
Ford
Forest River
Holiday Rambler
Itasca
Winnebago
2010 - 2012FleetwoodBounder Classic
2013 - 2016WinnebagoVista
2019 - 2020WinnebagoAdventurer
2010 - 2010FleetwoodBounder
2019 - 2020WinnebagoAdventurer
2017 - 2017WinnebagoVista LX
2013 - 2016ItascaSuncruiser
2016 - 2019FordF-53 Motorhome Chassis
2010 - 2010FleetwoodBounder
2010 - 2010FleetwoodBounder
2016 - 2016ItascaSunstar LX
2020 - 2020Forest RiverGeorgetown GT3
2019 - 2019FleetwoodFlair LXE
2017 - 2017FleetwoodBounder
2018 - 2020FleetwoodSouthwind
2016 - 2019FordF-59 Commercial Stripped Chassis
2013 - 2015ItascaSuncruiser
2013 - 2016ItascaSunstar
2020 - 2020Forest RiverFR3
2019 - 2020WinnebagoAdventurer
