Raybestos

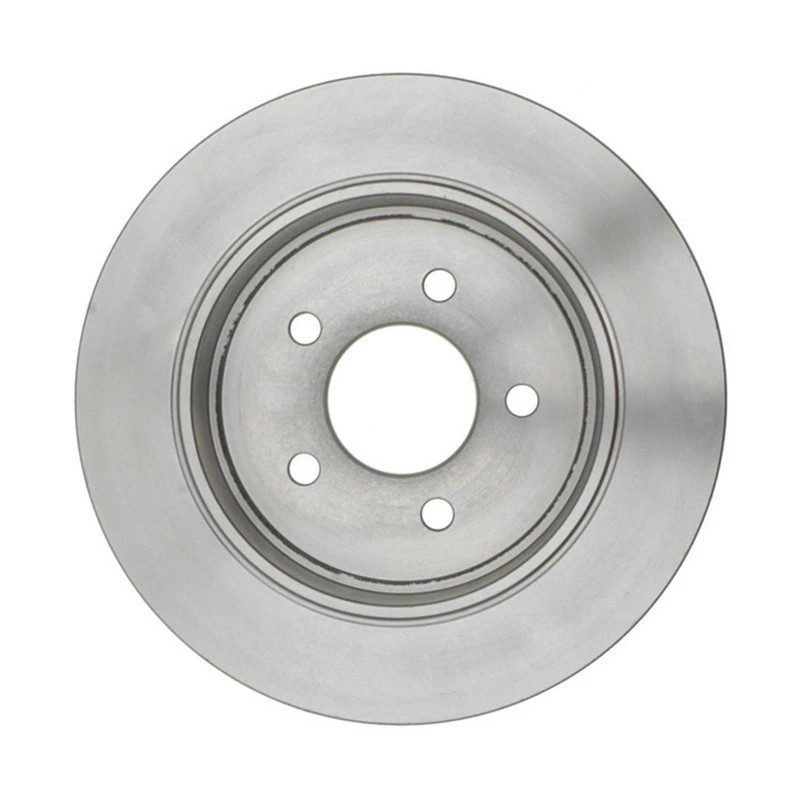

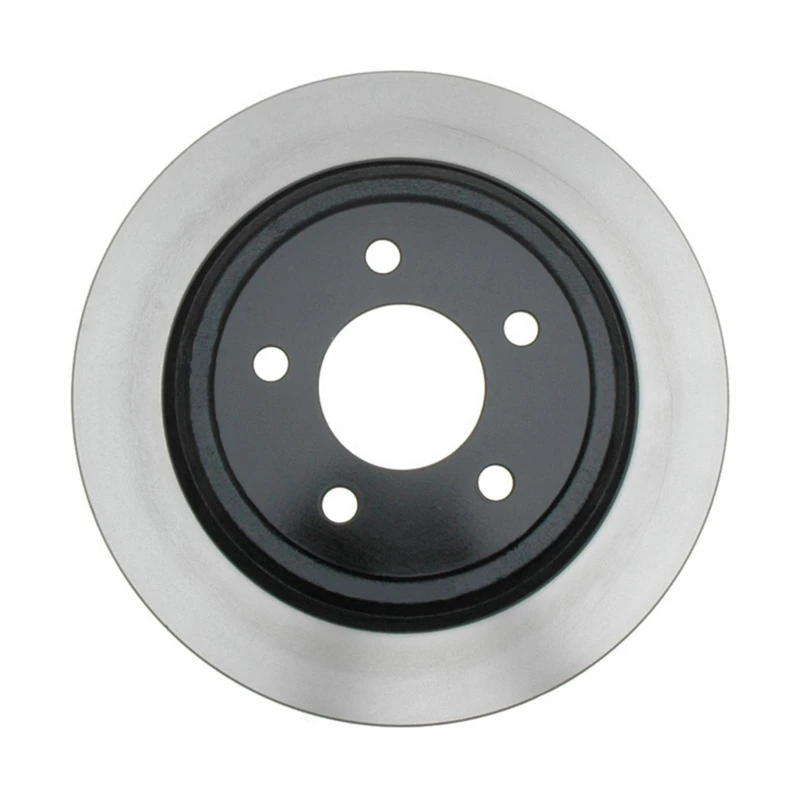

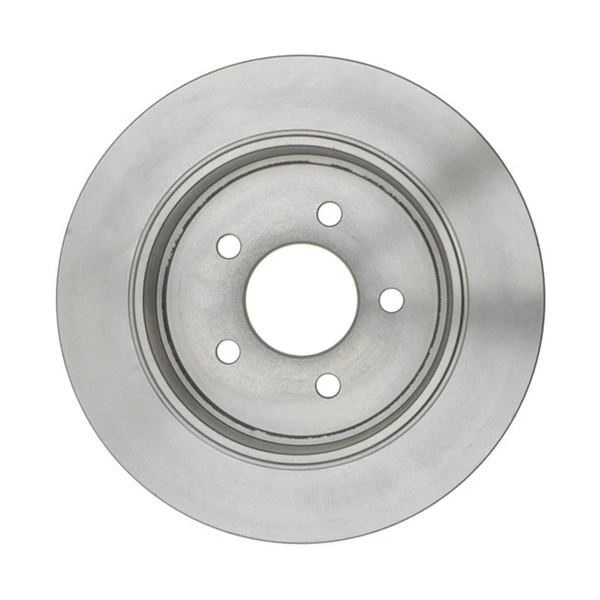

Raybestos 680129 Brake Rotor Rear Side

Part # 680129
Item # 1000VG5S
$79.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.78
Center Hole Diameter (mm)
70.6
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.709
Discard Thickness (mm)
18
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.557
Mounting Bolt Hole Diameter (mm)
14.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.75
Nominal Thickness (mm)
19.05
Outside Diameter (in)
11.615
Outside Diameter (mm)
295
Overall Height (in)
2.29
Overall Height (mm)
58.15
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54105, 5-4105 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, WEBB, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
54202, 5-4202 - PAGID RACING, HELLA, AIMCO, ULTRA BRAKE
3W7Z2C026AA, 3W7Z-2C026-AA, 3W7Z 2C026-AA - MERCURY, OEM PART NUMBER, FORD
2054105, 20-54105 - UAP, PROMAX, GEOTECH
12061073, 120.61073 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD125786 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12161073, 121.61073 - AUTOZONE, CENTRIC PARTS, CTEK
AX54105 - AUTO EXTRA, AUTOXTRA
22761073R, 227.61073R - STOPTECH, CENTRIC PARTS
107016 - NEOTEK DRUMS AND ROTORS, COMMAND AUTOMOTIVE
22761073L, 227.61073L - STOPTECH, CENTRIC PARTS
12561073CRY, 125.61073CRY - STOPTECH, CENTRIC PARTS
52125786, 52-125786 - GUARDIAN, WAGNER BRAKE
680129R - RAYBESTOS BRAKES, BRAKEBEST
12861073CR, 128.61073CR - STOPTECH, CENTRIC PARTS
662772 - WINHERE, PERFECT STOP
12861073CL, 128.61073CL - STOPTECH, CENTRIC PARTS
G12386SD - CARQUEST, ADVANCE AUTO PARTS
680129, 68-0129 - RAYBESTOS BRAKES, BRAKEBEST
BR5410502, BR54105-02 - DURAGO, DURA CORP
680129P - RAYBESTOS BRAKES, BRAKEBEST
12661073CSR, 126.61073CSR - STOPTECH, CENTRIC PARTS
AR8165 - POWERSTOP, AUTOSPECIALTY
680129FZN - RAYBESTOS BRAKES, BRAKEBEST
680129PER - RAYBESTOS BRAKES, BRAKEBEST
12661073CSL, 126.61073CSL - STOPTECH, CENTRIC PARTS
12861073R, 128.61073R - STOPTECH, CENTRIC PARTS
32061073, 320.61073 - STOPTECH, CENTRIC PARTS
12561073, 125.61073 - STOPTECH, CENTRIC PARTS
12861073L, 128.61073L - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Ford
Mercury
2003 - 2011MercuryGrand Marquis
2003 - 2004MercuryMarauder
2003 - 2011FordCrown Victoria
2003 - 2003FordGrand Marquis
