Raybestos

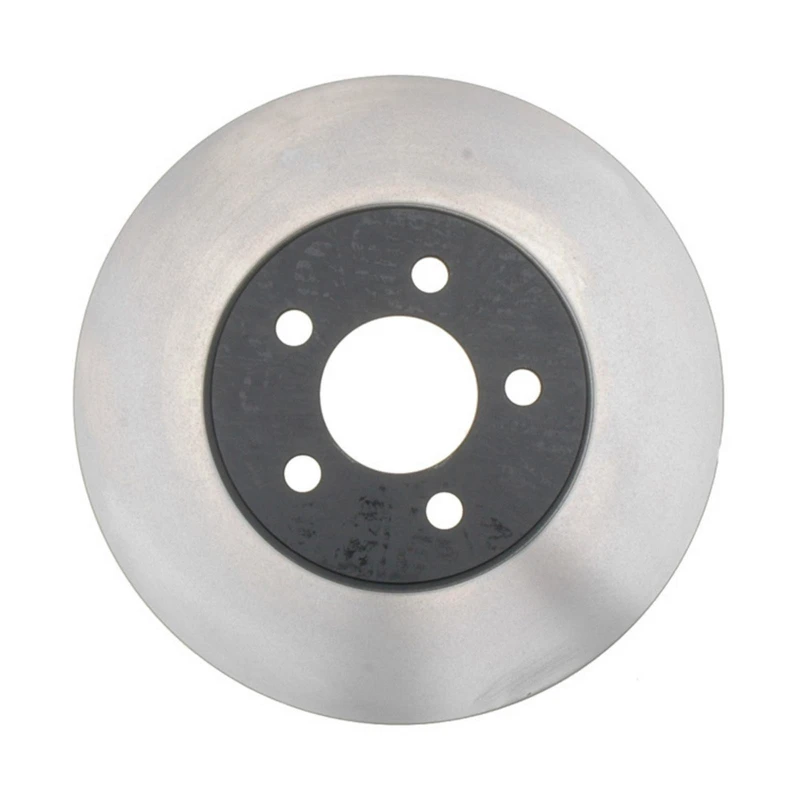

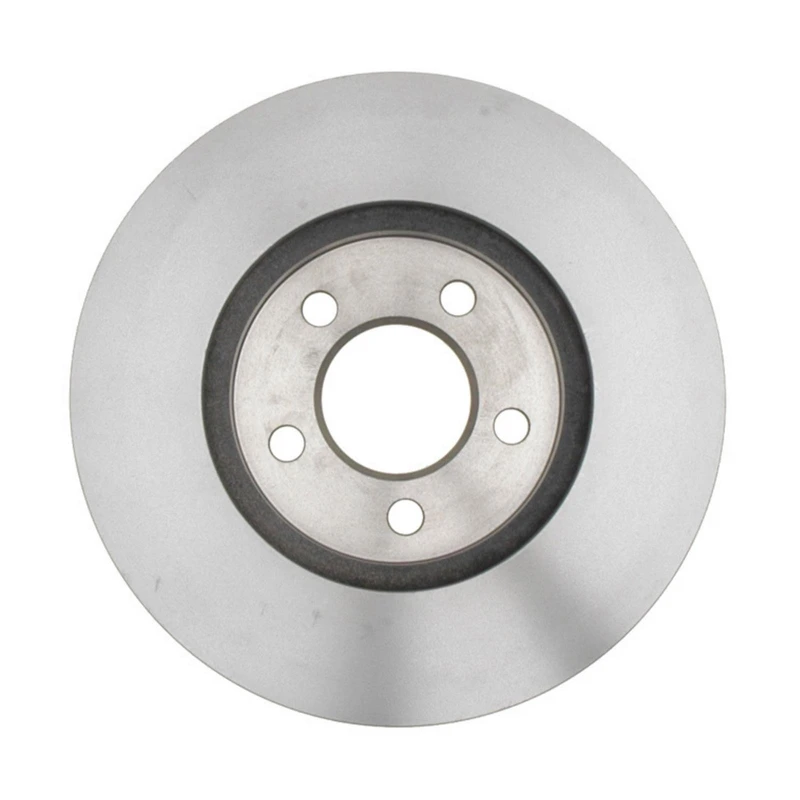

Raybestos 680110P Brake Rotor Front Side

Part # 680110P
Item # 1000VAS8
$112.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.83
Center Hole Diameter (mm)
71.9
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.037
Discard Thickness (mm)
26.35
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.635
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.105
Nominal Thickness (mm)
28.05
Outside Diameter (in)
12.015
Outside Diameter (mm)
305.2
Overall Height (in)
1.77
Overall Height (mm)
44.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54103, 5-4103 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, WEBB, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
3W1Z1125AA, 3W1Z-1125-AA, 3W1Z 1125-AA - MERCURY, OEM PART NUMBER, LINCOLN, FORD
2054103, 20-54103 - UAP, PROMAX, GEOTECH
12061072, 120.61072 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD125785 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
54221, 5-4221 - PAGID RACING, HELLA, ULTRA BRAKE
12161072, 121.61072 - AUTOZONE, CENTRIC PARTS, CTEK
12661072CSR, 126.61072CSR - STOPTECH, CENTRIC PARTS
12061072CRY, 120.61072CRY - STOPTECH, CENTRIC PARTS
12661072CSL, 126.61072CSL - STOPTECH, CENTRIC PARTS
12861072R, 128.61072R - STOPTECH, CENTRIC PARTS
107015, 10-7015 - NEOTEK DRUMS AND ROTORS, COMMAND AUTOMOTIVE
12861072L, 128.61072L - STOPTECH, CENTRIC PARTS
CW28711 - ATE, CONTINENTAL
52125785, 52-125785 - GUARDIAN, WAGNER BRAKE
BR5410302, BR54103-02 - DURAGO, DURA CORP
32061072, 320.61072 - STOPTECH, CENTRIC PARTS
145326, 14-5326 - BENDIX, ADVANCE AUTO PARTS
G12384SD - CARQUEST, ADVANCE AUTO PARTS
AR8164 - POWERSTOP, AUTOSPECIALTY
12661072SL, 126.61072SL - STOPTECH, CENTRIC PARTS
22761072R, 227.61072R - STOPTECH, CENTRIC PARTS
662771 - WINHERE, PERFECT STOP
680110R - RAYBESTOS BRAKES, BRAKEBEST
22761072L, 227.61072L - STOPTECH, CENTRIC PARTS
12661072SR, 126.61072SR - STOPTECH, CENTRIC PARTS
12561072, 125.61072 - STOPTECH, CENTRIC PARTS
20010333 - BOSCH, BRAKEBEST
680110P - RAYBESTOS BRAKES, BRAKEBEST
125785 - PARTS MASTER, AUTOXTRA

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Ford
Lincoln
Mercury
2003 - 2003FordGrand Marquis
2003 - 2011FordCrown Victoria
2003 - 2011LincolnTown Car
2003 - 2004MercuryMarauder
2003 - 2011MercuryGrand Marquis
