Raybestos

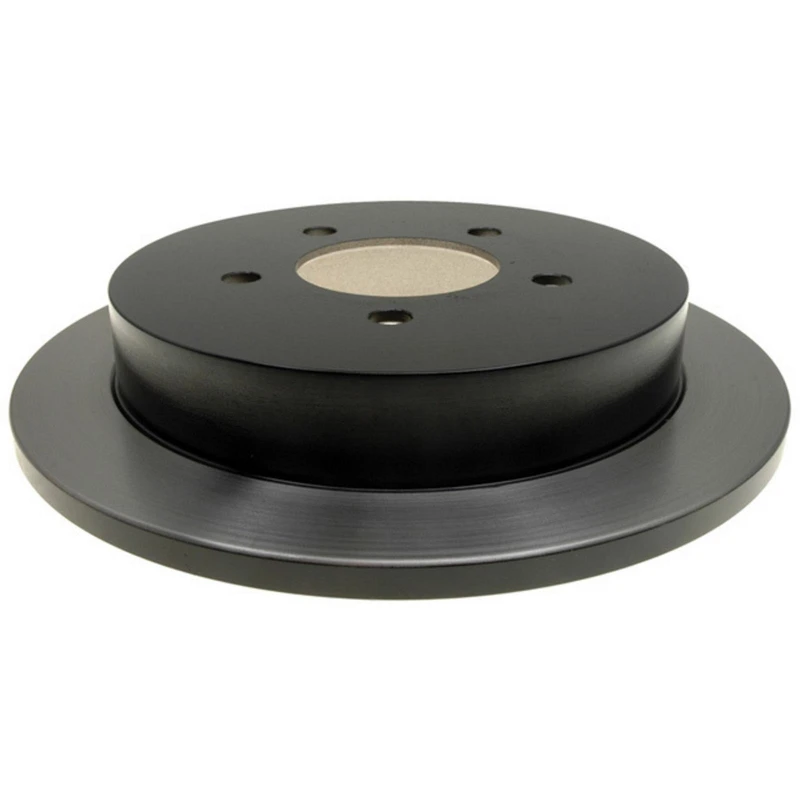

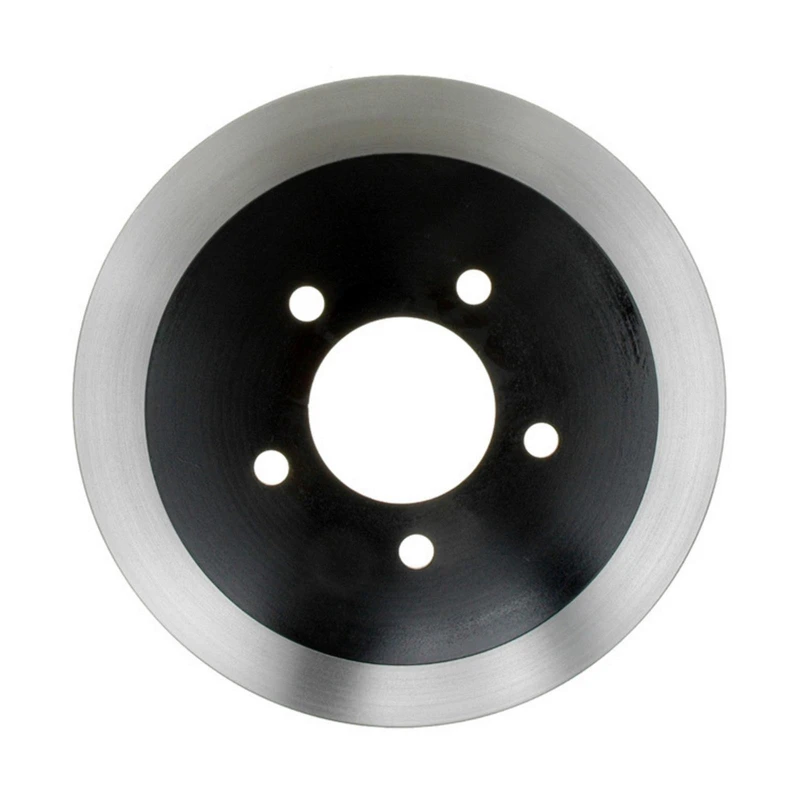

Raybestos 66947 Brake Rotor Rear Side

Part # 66947
Item # 1000V8NZ
$87.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.44
Center Hole Diameter (mm)
87.4
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.472
Discard Thickness (mm)
12
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.315
Mounting Bolt Hole Circle Diameter (mm)
135
Mounting Bolt Hole Diameter (in)
0.61
Mounting Bolt Hole Diameter (mm)
15.5
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.555
Nominal Thickness (mm)
14.1
Outside Diameter (in)
13.15
Outside Diameter (mm)
334
Overall Height (in)
2.25
Overall Height (mm)
57.15
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54090, 5-4090 - CARQUEST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
BD125752 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12065085, 120.65085 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
YL3Z2C026AA, YL3Z 2C026-AA, YL3Z-2C026-AA - OEM PART NUMBER, LINCOLN, FORD
12765085L, 127.65085L - STOPTECH, CENTRIC PARTS
CW14704 - ATE, CONTINENTAL
12665085CSR, 126.65085CSR - STOPTECH, CENTRIC PARTS
12865085CR, 128.65085CR - STOPTECH, CENTRIC PARTS
12765085R, 127.65085R - STOPTECH, CENTRIC PARTS
12765085CR, 127.65085CR - STOPTECH, CENTRIC PARTS
12765085CL, 127.65085CL - STOPTECH, CENTRIC PARTS
12665085CSL, 126.65085CSL - STOPTECH, CENTRIC PARTS
12865085CL, 128.65085CL - STOPTECH, CENTRIC PARTS
BR5409002, BR54090-02 - DURAGO, DURA CORP
20010322 - BOSCH, BRAKEBEST
12165085, 121.65085 - CENTRIC PARTS, CTEK
66947 - RAYBESTOS BRAKES, BRAKEBEST
66947R - RAYBESTOS BRAKES, BRAKEBEST
32065085, 320.65085 - STOPTECH, CENTRIC PARTS
52125752, 52-125752 - GUARDIAN, WAGNER BRAKE
BR54090 - DURAGO, DURA CORP
145299 - BENDIX, ADVANCE AUTO PARTS
12665085SR, 126.65085SR - STOPTECH, CENTRIC PARTS
12665085SL, 126.65085SL - STOPTECH, CENTRIC PARTS
12565085CRY, 125.65085CRY - STOPTECH, CENTRIC PARTS
22765085L, 227.65085L - STOPTECH, CENTRIC PARTS
12565085, 125.65085 - STOPTECH, CENTRIC PARTS
22765085R, 227.65085R - STOPTECH, CENTRIC PARTS
492355 - TRUCKSTAR BY BUYERS, TRUSTAR
661345, 66-1345 - WINHERE, PERFECT STOP

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Ford
Lincoln
2002 - 2002LincolnBlackwood
1999 - 2003FordF-150
2004 - 2004FordF-150 Heritage
2001 - 2003FordLobo
2004 - 2004FordF-150
1999 - 2002FordExpedition
1998 - 2002LincolnNavigator
