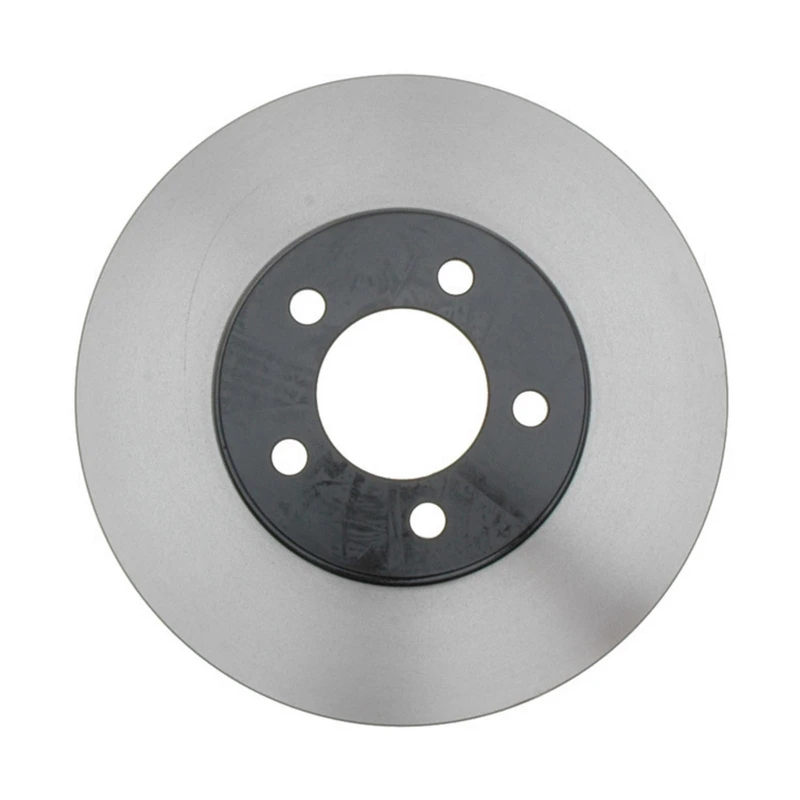

Raybestos 66833 Brake Rotor Front Side
Part # 66833
Item # 1000V7UC
$75.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.8
- Center Hole Diameter (mm)
- 71.1
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.974
- Discard Thickness (mm)
- 24.75
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.25
- Mounting Bolt Hole Circle Diameter (mm)
- 107.95
- Mounting Bolt Hole Diameter (in)
- 0.551
- Mounting Bolt Hole Diameter (mm)
- 14
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.025
- Nominal Thickness (mm)
- 26.05
- Outside Diameter (in)
- 11.08
- Outside Diameter (mm)
- 281.45
- Overall Height (in)
- 1.83
- Overall Height (mm)
- 46.5
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
54070 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
BD125678 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12061057, 120.61057 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
AR8157 - POWERSTOP, AUTOSPECIALTY
12661057CSR, 126.61057CSR - STOPTECH, CENTRIC PARTS
22761057R, 227.61057R - STOPTECH, CENTRIC PARTS
AX54070 - AUTO EXTRA, AUTOXTRA
22761057L, 227.61057L - STOPTECH, CENTRIC PARTS
BRR70 - MOTORCRAFT, FORD
145244 - BENDIX, ADVANCE AUTO PARTS
125678 - PARTS MASTER, AUTOXTRA
3F2Z1125BA - OEM PART NUMBER, FORD
66833FZN - RAYBESTOS BRAKES, BRAKEBEST
54240 - HELLA, ULTRA BRAKE
12661057SL, 126.61057SL - STOPTECH, CENTRIC PARTS
12161057, 121.61057 - CENTRIC PARTS, CTEK
66833R - RAYBESTOS BRAKES, BRAKEBEST
12761057R, 127.61057R - STOPTECH, CENTRIC PARTS
66833 - RAYBESTOS BRAKES, BRAKEBEST
52125678, 52-125678 - GUARDIAN, WAGNER BRAKE
XF2Z1125AA, XF2Z 1125-AA - OEM PART NUMBER, FORD
12761057L, 127.61057L - STOPTECH, CENTRIC PARTS
YH145244 - CARQUEST, ADVANCE AUTO PARTS
12661057SR, 126.61057SR - STOPTECH, CENTRIC PARTS
32061057, 320.61057 - STOPTECH, CENTRIC PARTS
442494, 44-2494 - WINHERE, PERFECT STOP
BR54070 - DURAGO, DURA CORP
12661057CSL, 126.61057CSL - STOPTECH, CENTRIC PARTS
CW26718 - ATE, CONTINENTAL
20010318 - BOSCH, BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Ford
| 1999 - 2003 | Ford | Windstar |
