Raybestos

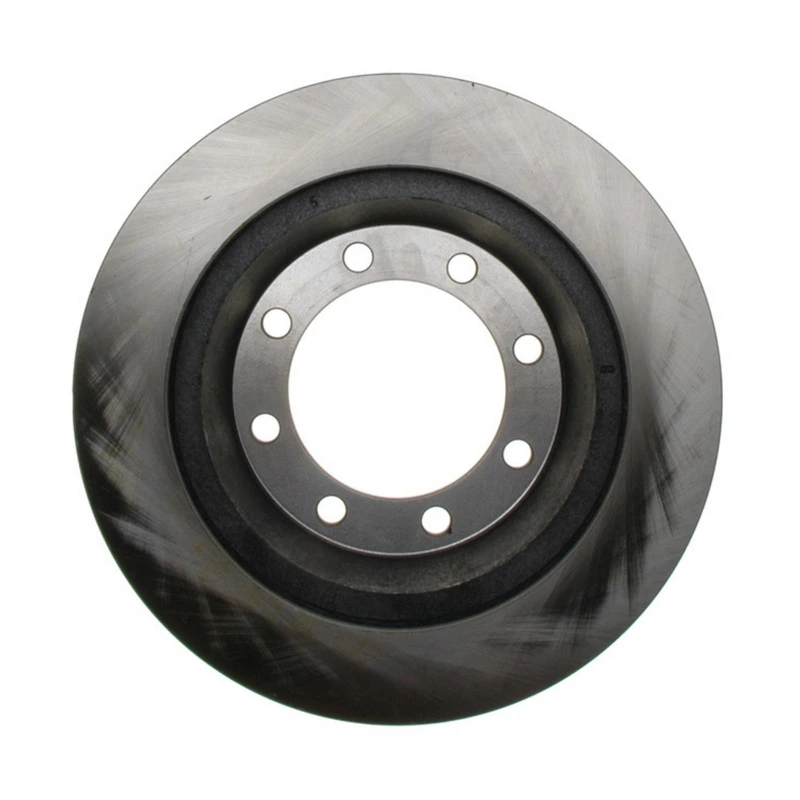

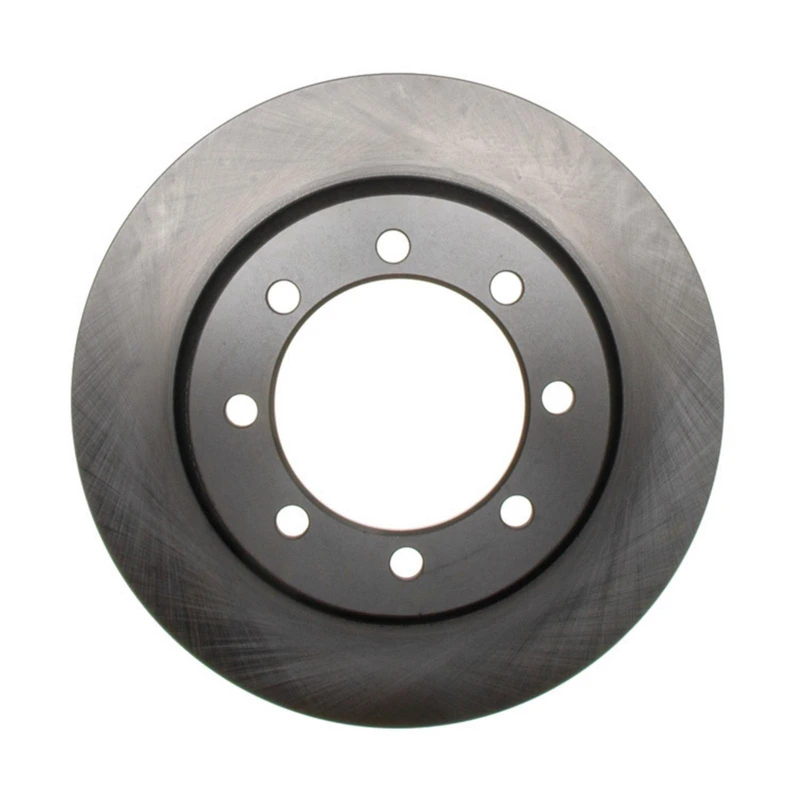

Raybestos 5980R Brake Rotor Front Side

Part # 5980R
Item # 1000R3DT
$122.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
5.13
Center Hole Diameter (mm)
130.3
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.465
Discard Thickness (mm)
37.2
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
6.5
Mounting Bolt Hole Circle Diameter (mm)
165.1
Mounting Bolt Hole Diameter (in)
0.654
Mounting Bolt Hole Diameter (mm)
16.6
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.535
Nominal Thickness (mm)
39
Outside Diameter (in)
14.235
Outside Diameter (mm)
361.55
Overall Height (in)
3.21
Overall Height (mm)
81.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
8
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55001, 55-001 - QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
5590, 559.0 - EUROROTOR, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, PILENGA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
15534074 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
BR55001 - DURAGO, DURA CORP, BRAKE HEADQUARTERS
12166015, 121.66015 - CENTRIC PARTS, WAGNER BRAKE, CTEK
BD61808 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
R448418 - BENDIX, MERITOR
5980, 5-980 - RAYBESTOS BRAKES, BRAKEBEST
5261808, 52-61808 - GUARDIAN, WAGNER BRAKE
78944015, 789-44015 - DELTA, AMERICAN REMANUFACTURED
5980R - RAYBESTOS BRAKES, BRAKEBEST
61808 - PARTS MASTER, AUTOXTRA
SB5980 - WAGNER BRAKE, SILENT STOP
27178, 27-178 - BREMBO, LEMFORDER
12666015SR, 126.66015SR - STOPTECH, CENTRIC PARTS
12666015SL, 126.66015SL - STOPTECH, CENTRIC PARTS
12766015R, 127.66015R - STOPTECH, CENTRIC PARTS
32066015, 320.66015 - STOPTECH, CENTRIC PARTS
12766015L, 127.66015L - STOPTECH, CENTRIC PARTS
442412 - WINHERE, PERFECT STOP
8944015, 89-44015 - DELTA, AMERICAN REMANUFACTURED
141480 - BENDIX, ADVANCE AUTO PARTS
177807, 177-807 - DELCOREMY, ACDELCO
5021 - CENTURY
5143 - CASTING NUMBERS
RB698 - DELPHI
E8418, E-8418 - EUCLID
101628, 10-1628 - CASTING NUMBERS
AX55001 - AUTOXTRA
211523DP, 211523-DP - CASTING NUMBERS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (21)vehicles
All
Chevrolet
GMC
Workhorse
1976 - 1978ChevroletP30
1979 - 1996ChevroletP30
1991 - 1993ChevroletC3500HD
1994 - 1994ChevroletC3500HD
1976 - 1978GMCP35
1979 - 1996GMCP3500
1984 - 1987GMCP4500
1991 - 1993GMCC3500HD
1994 - 1994GMCC3500HD
2000 - 2000WorkhorseP30
2000 - 2001WorkhorseFasTrack FT1260
2000 - 2001WorkhorseFasTrack FT1460
2000 - 2001WorkhorseFasTrack FT1600
2000 - 2001WorkhorseFasTrack FT1800
2002 - 2003WorkhorseFasTrack FT1061
2002 - 2003WorkhorseFasTrack FT1261
2002 - 2003WorkhorseFasTrack FT1461
2002 - 2003WorkhorseFasTrack FT1601
2002 - 2003WorkhorseFasTrack FT1801
2002 - 2003WorkhorseFasTrack FT1802
