Raybestos

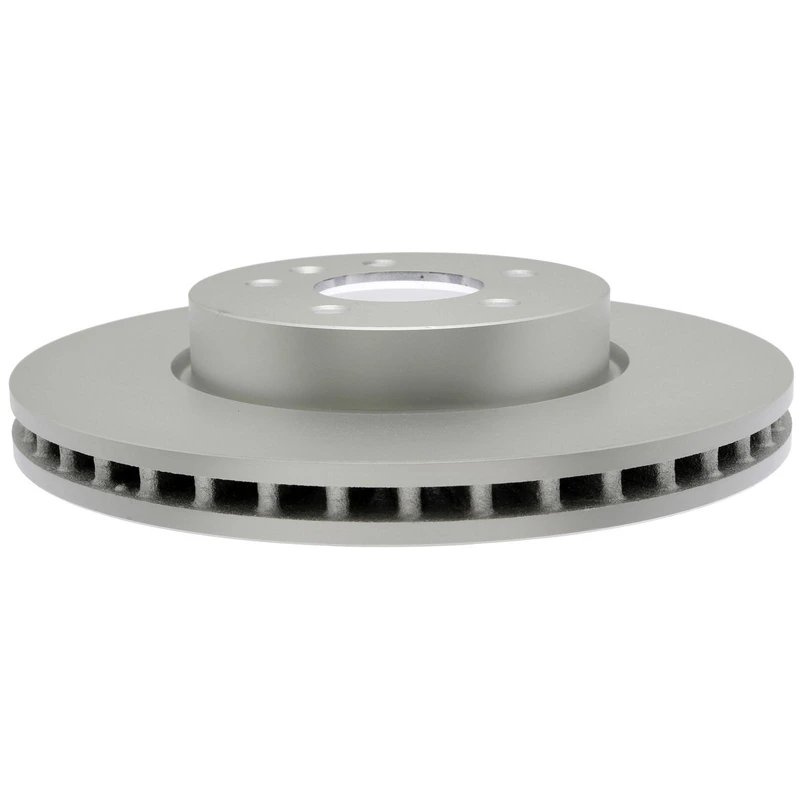

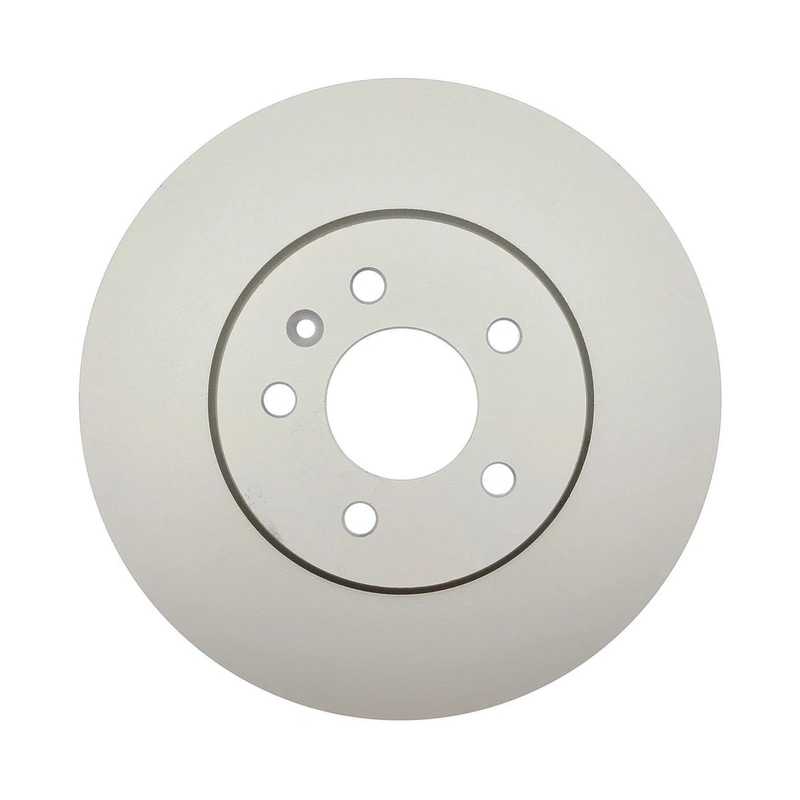

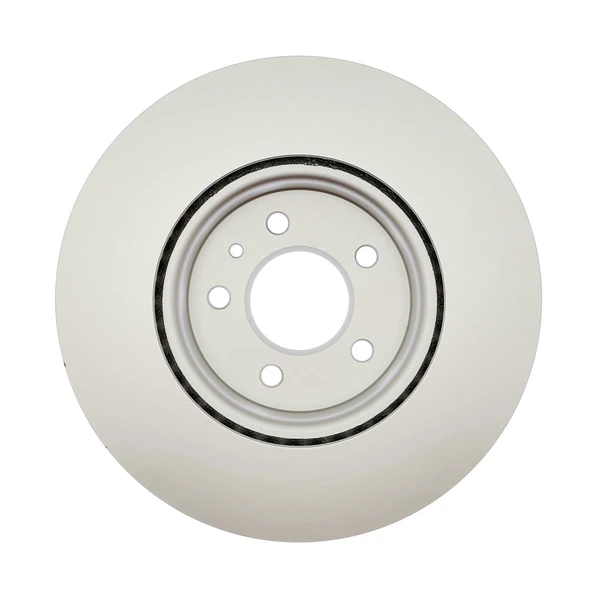

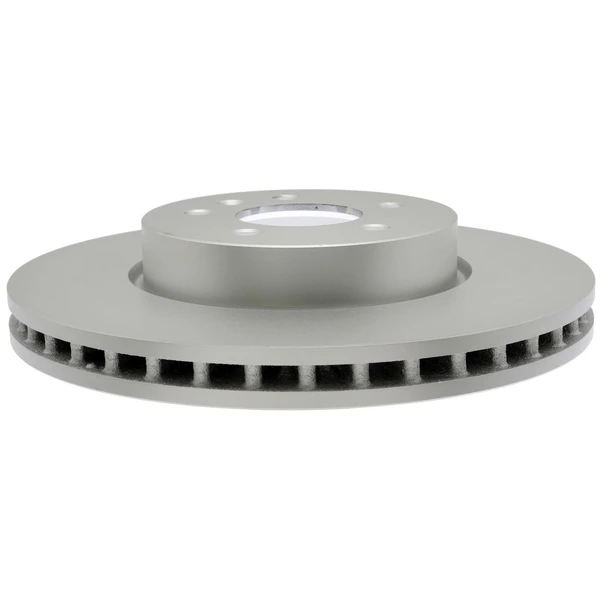

Raybestos 581048 Brake Rotor Front Side

Part # 581048
Item # 1000W200
$98.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.785
Center Hole Diameter (mm)
70.75
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.063
Discard Thickness (mm)
27
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.524
Inside Diameter (mm)
191.1
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.561
Mounting Bolt Hole Diameter (mm)
14.25
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
12.644
Outside Diameter (mm)
321.15
Overall Height (in)
2.398
Overall Height (mm)
60.9
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
13524701 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, DELCOREMY
12162138, 121.62138 - CANADIAN TIRE, CENTRIC PARTS, CTEK
13526437 - GENERAL MOTORS, OEM PART NUMBER, DELCOREMY
13585030 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER
23118091 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER
581048R - RAYBESTOS BRAKES, BRAKEBEST
72033DL - DURALAST, AUTOZONE
72032DL - DURALAST, AUTOZONE
2940933 - UAP, GEOTECH
581048 - RAYBESTOS BRAKES, BRAKEBEST
BR901408 - DURAGO, DURA CORP
13590082 - GENERAL MOTORS, OEM PART NUMBER
581048FZN - RAYBESTOS BRAKES, BRAKEBEST
PRT6217 - BENDIX PREMIUM, BENDIX
2940927 - UAP, GEOTECH
12562138, 125.62138 - STOPTECH, CENTRIC PARTS
YH479070P - CARQUEST, ADVANCE AUTO PARTS
41281, 4128/1, 41-281 - CANADIAN TIRE, QUALIS
32062191C, 320.62191C - CENTRIC PARTS
AR82161EVC - POWERSTOP
72032, 7-2032 - AUTOZONE
521493RGS - BRAKEBEST
72033, 7-2033 - AUTOZONE
12562191, 125.62191 - CENTRIC PARTS
72033DG - AUTOZONE
32062138C, 320.62138C - CENTRIC PARTS
14650004, 14-650004 - PROMAX
12162191, 121.62191 - CENTRIC PARTS
R1408 - NEWTEK AUTOMOTIVE USA
BD180595E - WAGNER BRAKE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Cadillac
2022 - 2022CadillacCT4
2024 - 2024CadillacCT4
2013 - 2014CadillacATS
2017 - 2019CadillacATS
2022 - 2022CadillacCT4
2015 - 2016CadillacATS
2020 - 2021CadillacCT4
2023 - 2023CadillacCT4
