Raybestos

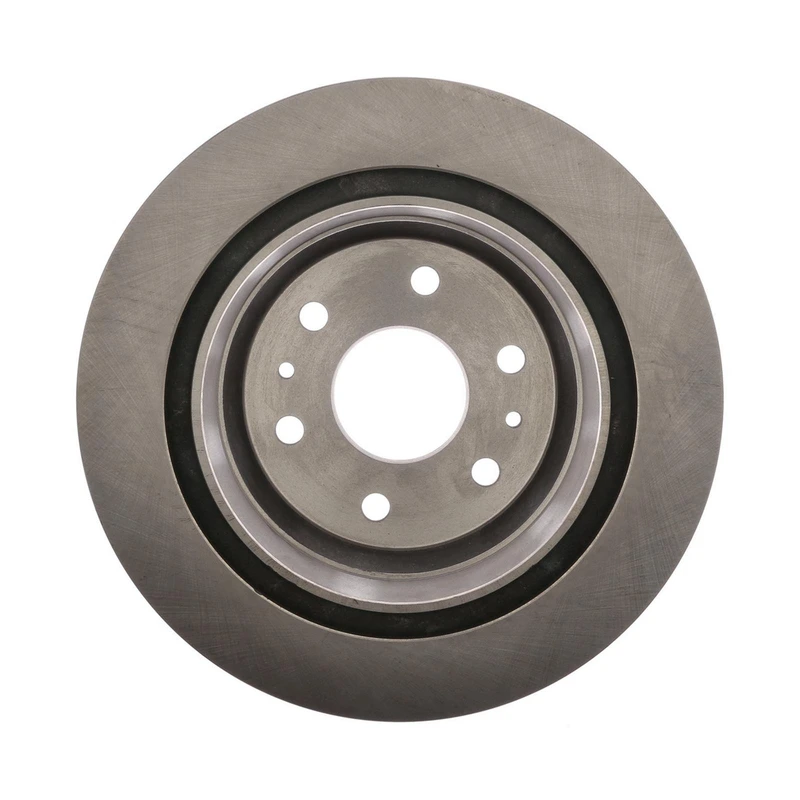

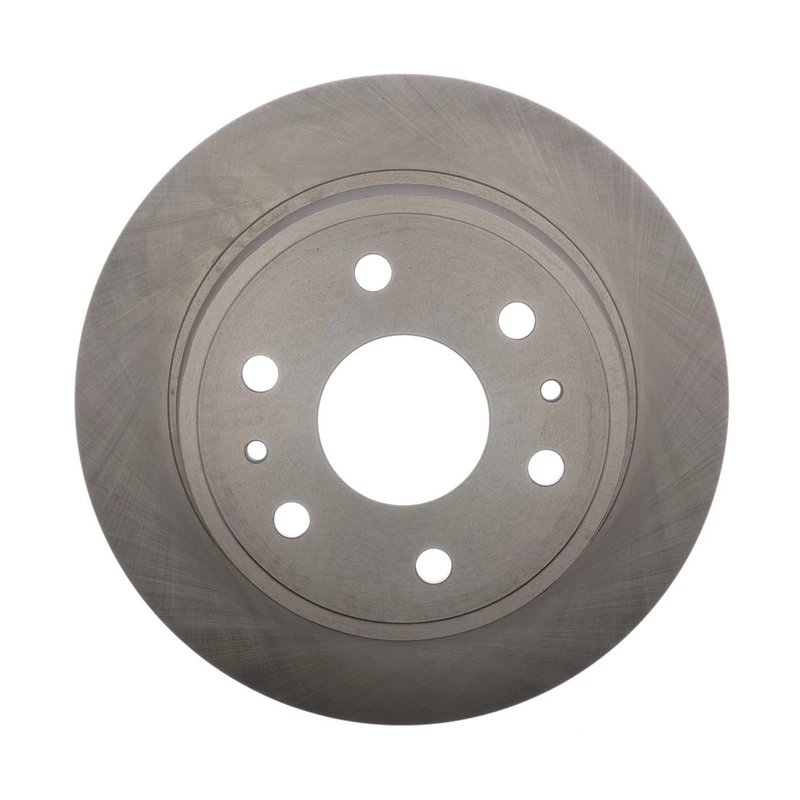

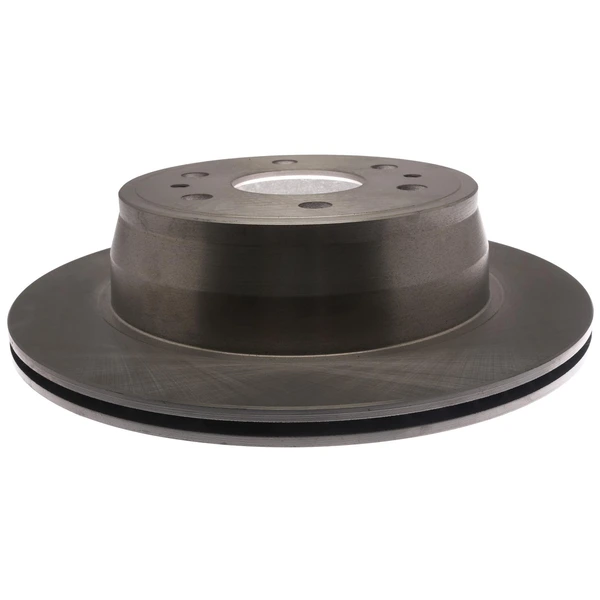

Raybestos 581032P Brake Rotor Rear Side

Part # 581032P
Item # 1000VYVU
$199.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.08
Center Hole Diameter (mm)
78.25
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.728
Discard Thickness (mm)
18.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
9.843
Inside Diameter (mm)
250
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.63
Mounting Bolt Hole Diameter (mm)
16
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
0.787
Nominal Thickness (mm)
20
Outside Diameter (in)
13.583
Outside Diameter (mm)
345
Overall Height (in)
3.352
Overall Height (mm)
85.15
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55133, 5-5133 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS
23195438 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
22775300 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12066065, 120.66065 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12166065, 121.66065 - AUTOZONE, CENTRIC PARTS, CTEK
BR5513302, BR55133-02 - DURAGO, DURA CORP
581032P - RAYBESTOS BRAKES, BRAKEBEST
32066065, 320.66065 - STOPTECH, CENTRIC PARTS
12666065CSR, 126.66065CSR - STOPTECH, CENTRIC PARTS
12866065L, 128.66065L - STOPTECH, CENTRIC PARTS
581032R - RAYBESTOS BRAKES, BRAKEBEST
12066065CRY, 120.66065CRY - STOPTECH, CENTRIC PARTS
12666065CSL, 126.66065CSL - STOPTECH, CENTRIC PARTS
12866065R, 128.66065R - STOPTECH, CENTRIC PARTS
12766065CL, 127.66065CL - STOPTECH, CENTRIC PARTS
12866065CL, 128.66065CL - STOPTECH, CENTRIC PARTS
12866065CR, 128.66065CR - STOPTECH, CENTRIC PARTS
12666065SR, 126.66065SR - STOPTECH, CENTRIC PARTS
12766065CR, 127.66065CR - STOPTECH, CENTRIC PARTS
12666065SL, 126.66065SL - STOPTECH, CENTRIC PARTS
BR55133 - DURAGO, DURA CORP
BR5510302 - DURAGO, DURA CORP
BD126457 - MONROE BRAKES, WAGNER BRAKE
22766065L, 227.66065L - STOPTECH, CENTRIC PARTS
581032PER - RAYBESTOS BRAKES, BRAKEBEST
12766065L, 127.66065L - STOPTECH, CENTRIC PARTS
581032FZN - RAYBESTOS BRAKES, BRAKEBEST
12766065R, 127.66065R - STOPTECH, CENTRIC PARTS
581032 - RAYBESTOS BRAKES, BRAKEBEST
22766065R, 227.66065R - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Cadillac
Chevrolet
GMC
2007 - 2013CadillacEscalade EXT
2007 - 2020CadillacEscalade
2007 - 2020CadillacEscalade ESV
2007 - 2013ChevroletAvalanche
2007 - 2014ChevroletSuburban 1500
2007 - 2014ChevroletTahoe
2007 - 2018ChevroletSilverado 1500
2015 - 2019ChevroletTahoe
2015 - 2020ChevroletSuburban
2019 - 2019ChevroletSilverado 1500 LD
2020 - 2020ChevroletTahoe
2007 - 2014GMCYukon XL 1500
2007 - 2018GMCSierra 1500
2007 - 2020GMCYukon
2015 - 2018GMCYukon XL
2019 - 2019GMCSierra 1500 Limited
2019 - 2020GMCYukon XL
