Raybestos

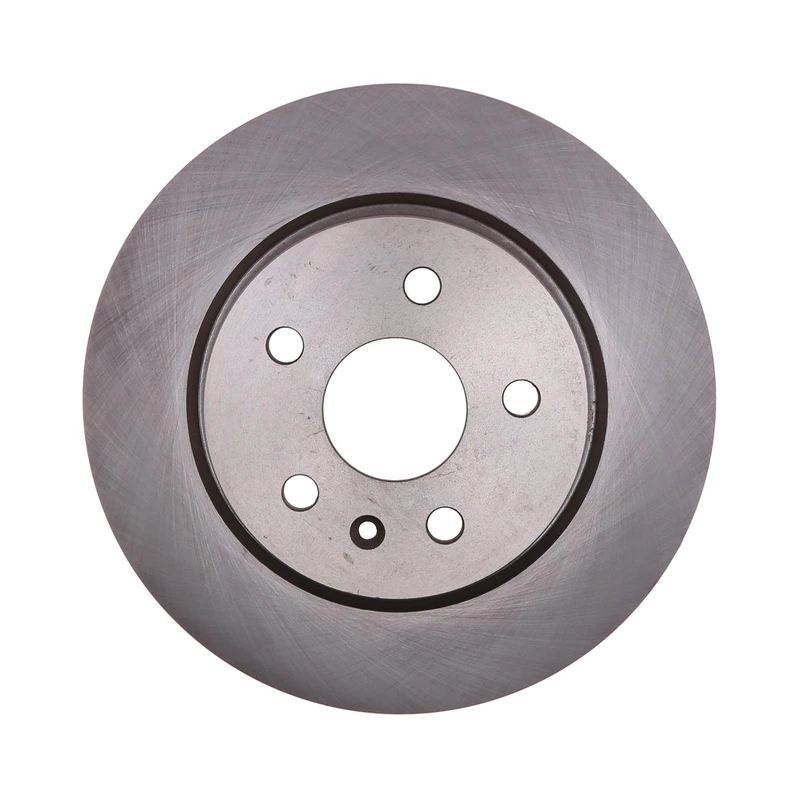

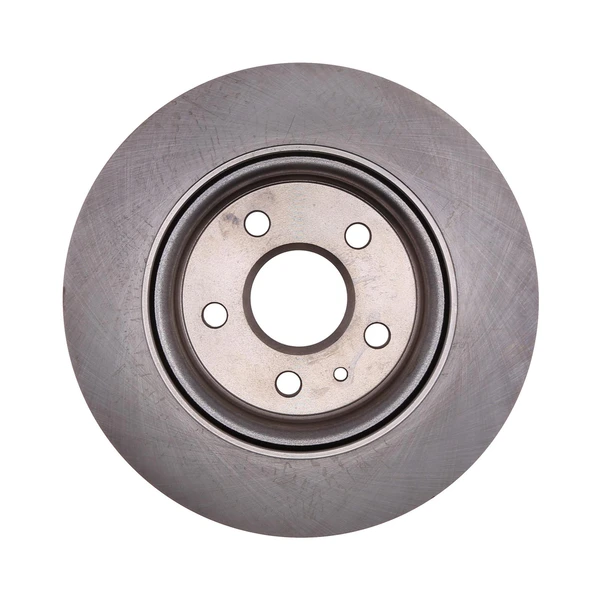

Raybestos 580771R Brake Rotor Rear Side

Part # 580771R
Item # 1000UHK9
$73.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.65
Center Hole Diameter (mm)
67.3
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.847
Discard Thickness (mm)
21.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
8.162
Inside Diameter (mm)
207.3
Mounting Bolt Hole Circle Diameter (in)
4.72
Mounting Bolt Hole Circle Diameter (mm)
119.9
Mounting Bolt Hole Diameter (in)
0.635
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.908
Nominal Thickness (mm)
23.05
Outside Diameter (in)
12.398
Outside Diameter (mm)
314.9
Overall Height (in)
1.883
Overall Height (mm)
47.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
580771R
08.A970.10
08.A970.11
120.38024
120.62127
121.38024
121.62127
125.38024
126.38024SL
126.38024SR
126.62127SL
126.62127SR
127.38024L
127.38024R
127.62127CL
127.62127CR
127.62127L
127.62127R
128.38024L
128.38024R
128.62127L
128.62127R
13501290
13501303
13501314
13502199
13592623
14-55179
2055179
23118533

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (32)vehicles
All
Buick
Cadillac
Chevrolet
Saab
2010 - 2010BuickAllure
2010 - 2011BuickLaCrosse
2011 - 2011BuickRegal
2012 - 2012BuickRegal
2012 - 2016BuickLaCrosse
2013 - 2013BuickRegal
2014 - 2014BuickRegal
2015 - 2015BuickRegal
2016 - 2016BuickRegal
2016 - 2016BuickRegal
2017 - 2017BuickRegal
2017 - 2017BuickRegal
2017 - 2017BuickRegal
2017 - 2017BuickRegal
2013 - 2019CadillacXTS
2016 - 2018CadillacCT6
2019 - 2020CadillacCT6
2020 - 2021CadillacCT5
2022 - 2023CadillacCT5
2022 - 2023CadillacCT5

Highlights
