Raybestos

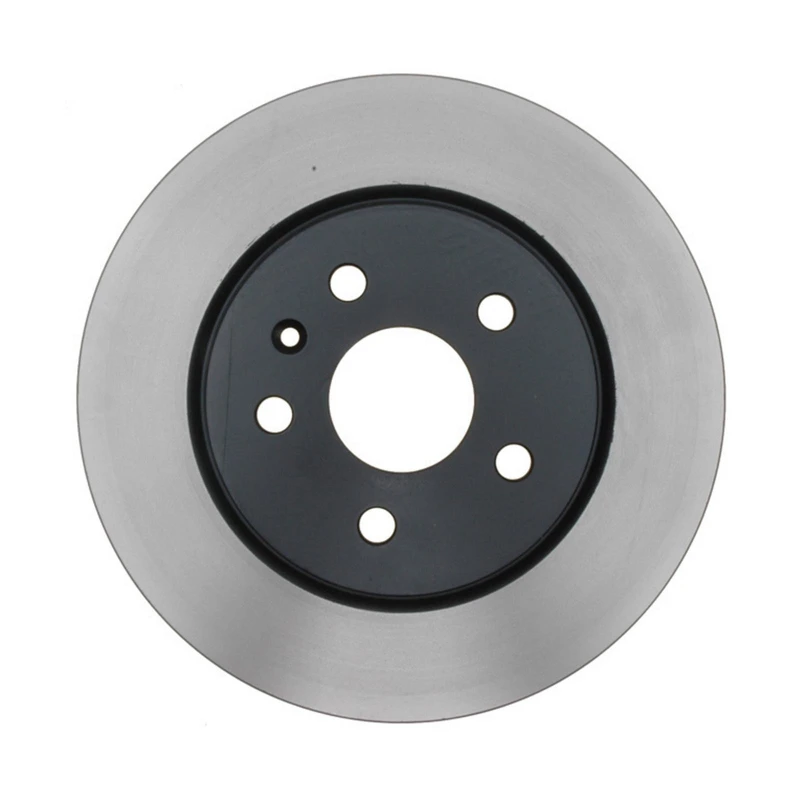

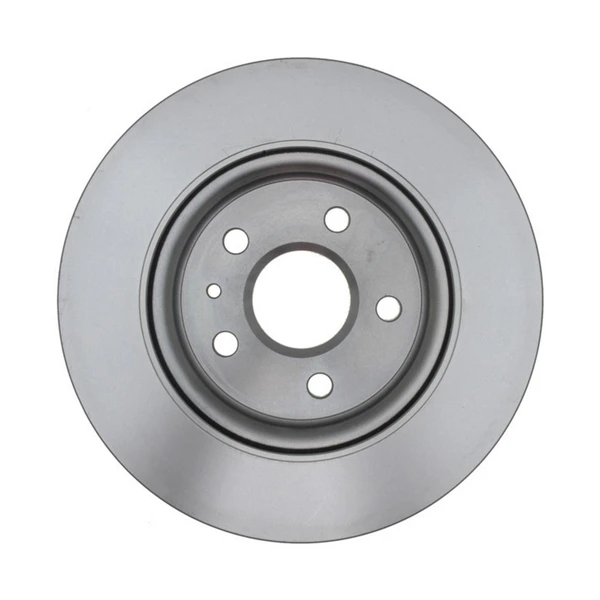

Raybestos 580771 Brake Rotor Rear Side

Part # 580771
Item # 1000VUD8
$104.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.65
Center Hole Diameter (mm)
67.3
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.847
Discard Thickness (mm)
21.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
8.162
Inside Diameter (mm)
207.3
Mounting Bolt Hole Circle Diameter (in)
4.72
Mounting Bolt Hole Circle Diameter (mm)
119.9
Mounting Bolt Hole Diameter (in)
0.635
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.908
Nominal Thickness (mm)
23.05
Outside Diameter (in)
12.398
Outside Diameter (mm)
314.9
Overall Height (in)
1.883
Overall Height (mm)
47.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
13502199 - GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, SAAB, GMC, OPEL
13501290 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, BUICK, CHEVROLET
13501303 - GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, GMC, OPEL
23118534 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, BUICK, CHEVROLET
55179, 5-5179 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO
13592623 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
13501314 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12138024, 121.38024 - CANADIAN TIRE, CENTRIC PARTS, CTEK
2055179, 20-55179 - UAP, PROMAX, GEOTECH
23118533 - GENERAL MOTORS, OEM PART NUMBER, BUICK
12738024R, 127.38024R - STOPTECH, CENTRIC PARTS
AX900900 - AUTO EXTRA, AUTOXTRA
12738024L, 127.38024L - STOPTECH, CENTRIC PARTS
12762127CR, 127.62127CR - STOPTECH, CENTRIC PARTS
12762127CL, 127.62127CL - STOPTECH, CENTRIC PARTS
55202, 5-5202 - AIMCO, ULTRA BRAKE
25011438 - BOSCH, BRAKEBEST
12662127SR, 126.62127SR - STOPTECH, CENTRIC PARTS
900900, 900.900 - DURAGO, PARTS MASTER
12062127, 120.62127 - STOPTECH, CENTRIC PARTS
12638024SR, 126.38024SR - STOPTECH, CENTRIC PARTS
41267, 41-267 - CANADIAN TIRE, QUALIS
12638024SL, 126.38024SL - STOPTECH, CENTRIC PARTS
580771FZN - RAYBESTOS BRAKES, BRAKEBEST
BR55179 - DURAGO, DURA CORP
6620981 - WINHERE, PERFECT STOP
12762127L, 127.62127L - STOPTECH, CENTRIC PARTS
12762127R, 127.62127R - STOPTECH, CENTRIC PARTS
12538024, 125.38024 - STOPTECH, CENTRIC PARTS
12838024L, 128.38024L - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (33)vehicles
All
Buick
Cadillac
Chevrolet
Saab
2017 - 2017BuickRegal
2022 - 2022ChevroletCamaro
2017 - 2017BuickRegal
2016 - 2018ChevroletCamaro
2016 - 2018CadillacCT6
2012 - 2012BuickRegal
2016 - 2016ChevroletMalibu Limited
2022 - 2023CadillacCT5
2017 - 2017BuickRegal
2011 - 2011BuickRegal
2013 - 2013BuickRegal
2012 - 2016BuickLaCrosse
2024 - 2024CadillacCT5
2013 - 2015ChevroletMalibu
2022 - 2023CadillacCT5
2022 - 2022ChevroletCamaro
2020 - 2021CadillacCT5
2014 - 2014BuickRegal
2016 - 2016BuickRegal
2017 - 2017BuickRegal
