Raybestos

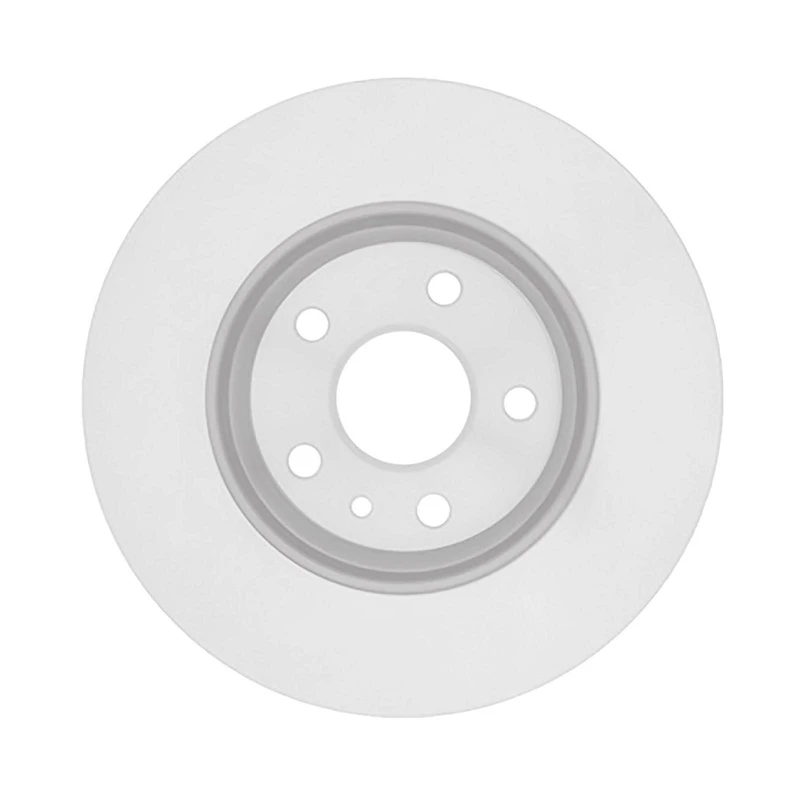

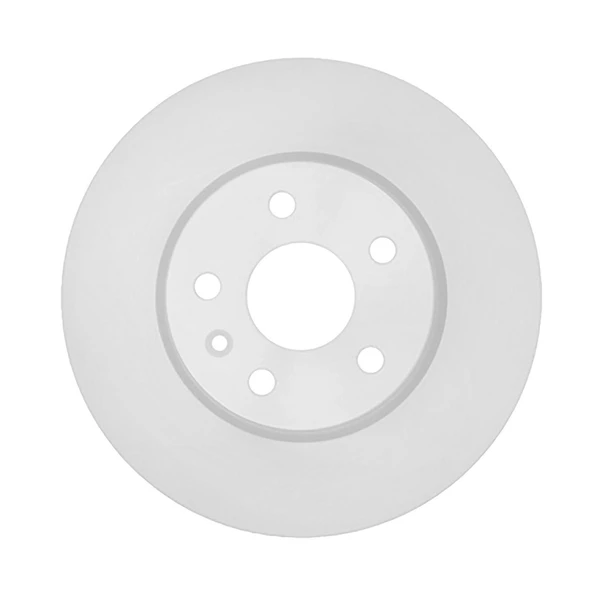

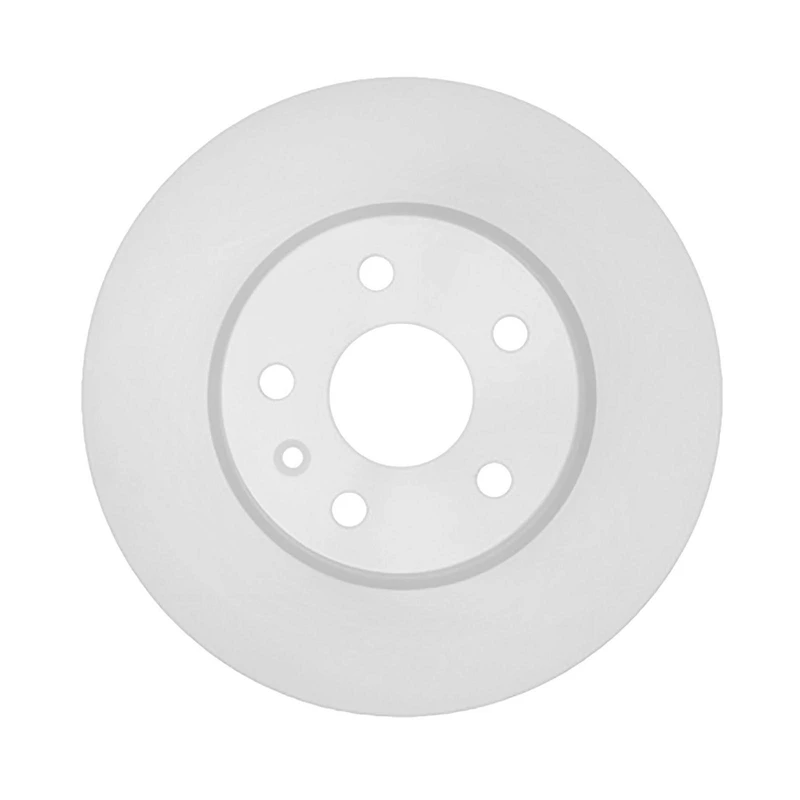

Raybestos 580770FZN Brake Rotor Front Side

Part # 580770FZN
Item # 1000VUV0
$76.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.37
Center Hole Diameter (mm)
60.2
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.906
Discard Thickness (mm)
23
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.535
Inside Diameter (mm)
166
Mounting Bolt Hole Circle Diameter (in)
4.134
Mounting Bolt Hole Circle Diameter (mm)
105
Mounting Bolt Hole Diameter (in)
0.557
Mounting Bolt Hole Diameter (mm)
14.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.024
Nominal Thickness (mm)
26
Outside Diameter (in)
10.866
Outside Diameter (mm)
276
Overall Height (in)
1.791
Overall Height (mm)
45.5
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
580770FZN
120.62130
121.62130
126.62130CSL
126.62130CSR
126.62130SL
126.62130SR
127.62130L
127.62130R
128.62130L
128.62130R
13502045
13502050
13515905
13515907
13597459
13597460
14-55185
227.62130L
227.62130R
23118274
25011461
2900920
320.62130
321.62130
41271
521850RGS
55185
580770
580770R

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Chevrolet
2010 - 2013ChevroletCruze
2012 - 2012ChevroletSonic
2013 - 2013ChevroletSonic
2013 - 2014ChevroletSonic
2013 - 2014ChevroletSonic
2013 - 2014ChevroletSonic
2014 - 2014ChevroletSonic
2014 - 2014ChevroletSonic
2014 - 2014ChevroletSonic
2014 - 2015ChevroletCruze
2014 - 2015ChevroletCruze
2015 - 2020ChevroletSonic
2016 - 2016ChevroletCruze Limited
2016 - 2019ChevroletCruze
2016 - 2019ChevroletVolt
2017 - 2023ChevroletBolt EV
2022 - 2023ChevroletBolt EUV
