Raybestos

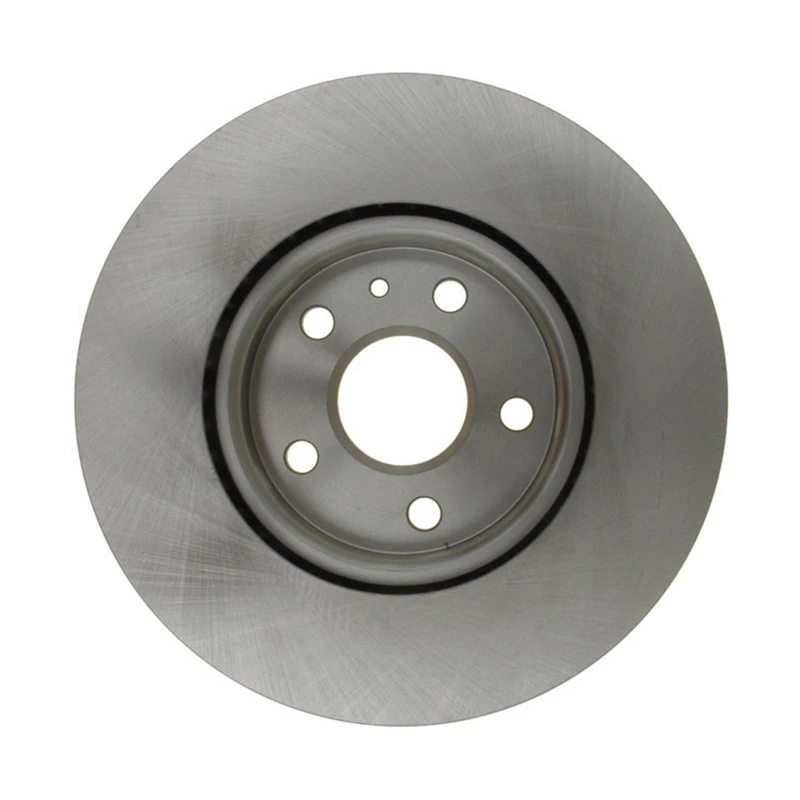

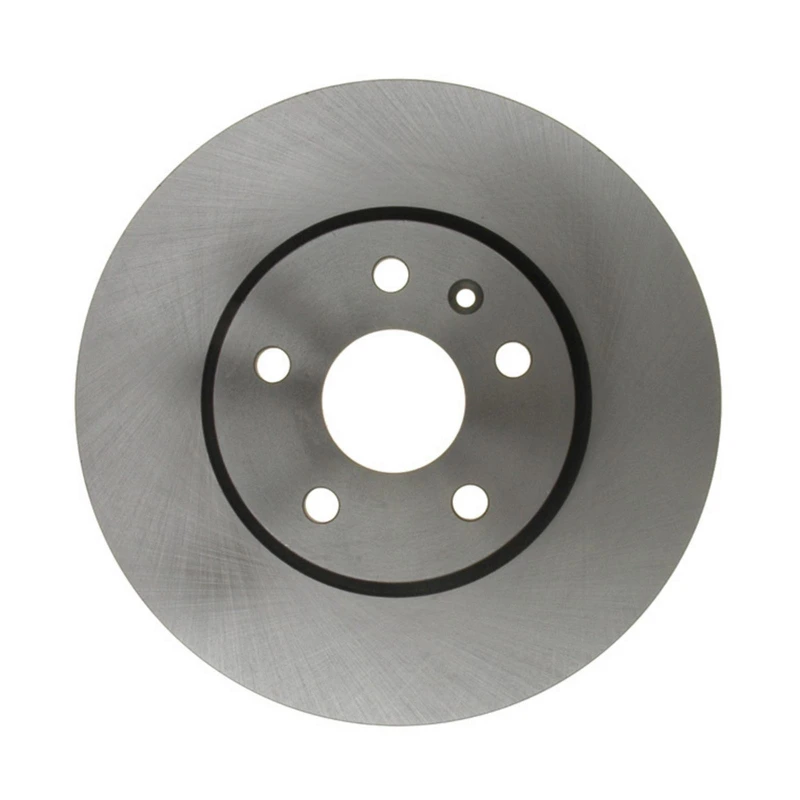

Raybestos 580746R Brake Rotor Front Side

Part # 580746R
Item # 1000UN1T
$78.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
2.65
Center Hole Diameter (mm)
67.3
Construction
Full Cast
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.063
Discard Thickness (mm)
27
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.5
Inside Diameter (mm)
190.5
Misc. Holes
1
Mounting Bolt Hole Circle Diameter (in)
4.72
Mounting Bolt Hole Circle Diameter (mm)
119.9
Mounting Bolt Hole Diameter (in)
0.638
Mounting Bolt Hole Diameter (mm)
16.2
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
12.638
Outside Diameter (mm)
321
Overall Height (in)
2.008
Overall Height (mm)
51
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
580746R
09.A971.11
120.62120
120.62120CRY
121.62120
121.62186
125.62186
126.62120CSL
126.62120CSR
126.62120SL
126.62120SR
127.62120CL
127.62120CR
127.62120L
127.62120R
128.62120CL
128.62120CR
128.62120L
128.62120R
13501297
13501308
13501320
13502214
13579148
14-55174
20-55174
23118055
23118530
25011437
2900748

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (20)vehicles
All
Buick
Chevrolet
GMC
2010 - 2010BuickAllure
2010 - 2011BuickLaCrosse
2011 - 2011BuickRegal
2012 - 2014BuickLaCrosse
2012 - 2015BuickRegal
2015 - 2015BuickLaCrosse
2015 - 2016BuickRegal
2016 - 2016BuickLaCrosse
2016 - 2017BuickRegal
2016 - 2017BuickRegal
2016 - 2017BuickRegal
2017 - 2017BuickRegal
2010 - 2015ChevroletCamaro
2010 - 2017ChevroletEquinox
2013 - 2015ChevroletMalibu
2014 - 2020ChevroletImpala
2016 - 2016ChevroletMalibu Limited
2020 - 2021ChevroletCorvette
2022 - 2023ChevroletCorvette
2010 - 2017GMCTerrain
