Raybestos

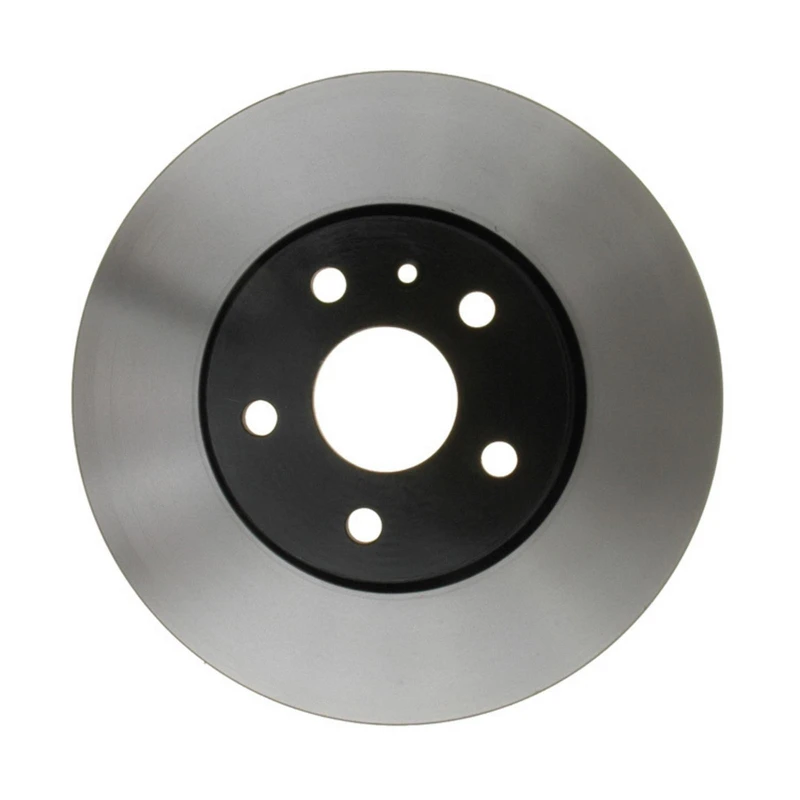

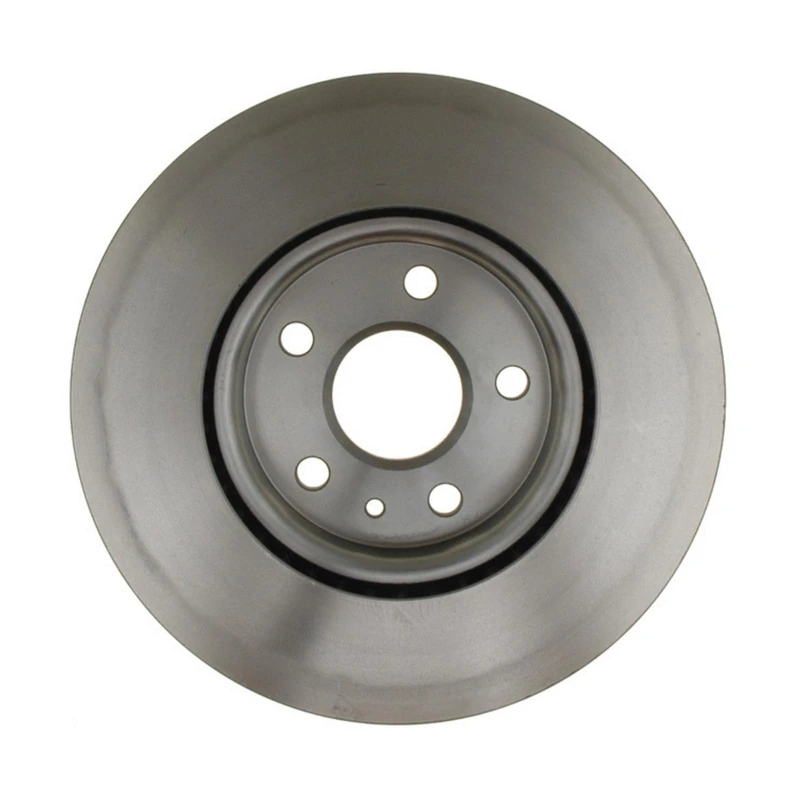

Raybestos 580746 Brake Rotor Front Side

Part # 580746
Item # 1000VWGR
$107.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
2.65
Center Hole Diameter (mm)
67.3
Construction
Full Cast
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.063
Discard Thickness (mm)
27
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.5
Inside Diameter (mm)
190.5
Misc. Holes
1
Mounting Bolt Hole Circle Diameter (in)
4.72
Mounting Bolt Hole Circle Diameter (mm)
119.9
Mounting Bolt Hole Diameter (in)
0.638
Mounting Bolt Hole Diameter (mm)
16.2
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
12.638
Outside Diameter (mm)
321
Overall Height (in)
2.008
Overall Height (mm)
51
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
13501308 - GENERAL MOTORS, OEM PART NUMBER, BUICK, VAUXHALL, GMC, CHEVROLET, OPEL
13502214 - GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, SAAB, GMC, OPEL
13501320 - GENERAL MOTORS, OEM PART NUMBER, BUICK, GMC, CHEVROLET, OPEL
23118055 - GENERAL MOTORS, OEM PART NUMBER, BUICK, GMC, CHEVROLET
13501297 - GENERAL MOTORS, OEM PART NUMBER, BUICK, CHEVROLET
13579148 - GENERAL MOTORS, OEM PART NUMBER, SAAB, GMC
23118530 - GENERAL MOTORS, OEM PART NUMBER, BUICK, CHEVROLET
55174, 5-5174 - DURALAST, NEWTEK AUTOMOTIVE USA, AIMCO
12062120, 120.62120 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BR90074802, BR900748-02 - DURAGO, DURA CORP
AX900748 - AUTO EXTRA, AUTOXTRA
580746R - RAYBESTOS BRAKES, BRAKEBEST
BR55174 - DURAGO, DURA CORP
25011437 - BOSCH, BRAKEBEST
900748 - DURAGO, PARTS MASTER
85114492 - GENERAL MOTORS, OEM PART NUMBER
12662120SR, 126.62120SR - STOPTECH, CENTRIC PARTS
32062120, 320.62120 - STOPTECH, CENTRIC PARTS
12662120SL, 126.62120SL - STOPTECH, CENTRIC PARTS
BD180356 - MONROE BRAKES, WAGNER BRAKE
2900762 - UAP, GEOTECH
41260, 41-260 - CANADIAN TIRE, QUALIS
12162186, 121.62186 - CENTRIC PARTS, CTEK
12662120CSR, 126.62120CSR - STOPTECH, CENTRIC PARTS
R62110 - WAGNER BRAKE, UAP
YH286282 - CARQUEST, ADVANCE AUTO PARTS
2900914 - UAP, GEOTECH
12662120CSL, 126.62120CSL - STOPTECH, CENTRIC PARTS
12862120CR, 128.62120CR - STOPTECH, CENTRIC PARTS
YH286282P - CARQUEST, ADVANCE AUTO PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (20)vehicles
All
Buick
Chevrolet
GMC
2016 - 2016BuickLaCrosse
2013 - 2015ChevroletMalibu
2010 - 2017GMCTerrain
2010 - 2017ChevroletEquinox
2016 - 2017BuickRegal
2017 - 2017BuickRegal
2016 - 2017BuickRegal
2020 - 2021ChevroletCorvette
2015 - 2015BuickLaCrosse
2012 - 2015BuickRegal
2010 - 2011BuickLaCrosse
2014 - 2020ChevroletImpala
2022 - 2023ChevroletCorvette
2010 - 2015ChevroletCamaro
2012 - 2014BuickLaCrosse
2010 - 2010BuickAllure
2015 - 2016BuickRegal
2016 - 2016ChevroletMalibu Limited
2016 - 2017BuickRegal
2011 - 2011BuickRegal
