Raybestos

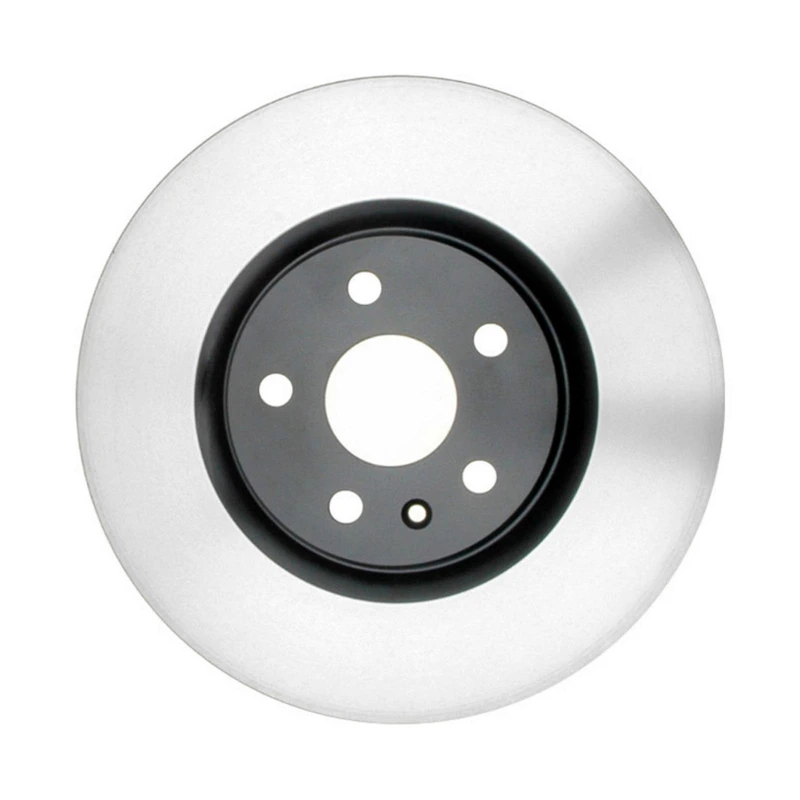

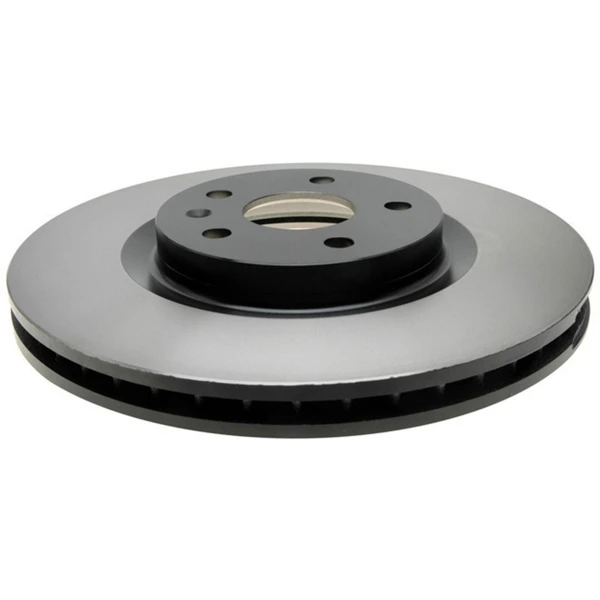

Raybestos 580676 Brake Rotor Front Side

Part # 580676
Item # 1000VW1H
$115.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
4.724
Center Hole Diameter (mm)
120
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.063
Discard Thickness (mm)
27
Harmonize Code
8708.30.5030
Inside Diameter (in)
8.425
Inside Diameter (mm)
214
Mounting Bolt Hole Circle Diameter (in)
2.654
Mounting Bolt Hole Circle Diameter (mm)
67.4
Mounting Bolt Hole Diameter (in)
2.654
Mounting Bolt Hole Diameter (mm)
67.4
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
13.583
Outside Diameter (mm)
345
Overall Height (in)
2.008
Overall Height (mm)
51
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
23118526 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, BUICK
55156, 55-156, 5-5156 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO
92260109 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
25946317 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER
12162108, 121.62108 - CANADIAN TIRE, CENTRIC PARTS, CTEK
13586138 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER
12162140, 121.62140 - AUTOZONE, CENTRIC PARTS, CTEK
41240 - CANADIAN TIRE, AUTOZONE, QUALIS
15267103 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER
12762108CL, 127.62108CL - STOPTECH, CENTRIC PARTS
AX900508 - AUTO EXTRA, AUTOXTRA
12762108CR, 127.62108CR - STOPTECH, CENTRIC PARTS
12662108SR, 126.62108SR - STOPTECH, CENTRIC PARTS
580676 - RAYBESTOS BRAKES, BRAKEBEST
12662108SL, 126.62108SL - STOPTECH, CENTRIC PARTS
580676PER - RAYBESTOS BRAKES, BRAKEBEST
580676FZN - RAYBESTOS BRAKES, BRAKEBEST
84714265 - GENERAL MOTORS, CHEVROLET
12162188, 121.62188 - CENTRIC PARTS, CTEK
580676R - RAYBESTOS BRAKES, BRAKEBEST
YH200473P - CARQUEST, ADVANCE AUTO PARTS
580676P - RAYBESTOS BRAKES, BRAKEBEST
12862108R, 128.62108R - STOPTECH, CENTRIC PARTS
6621041 - WINHERE, PERFECT STOP
12862108L, 128.62108L - STOPTECH, CENTRIC PARTS
12062108CRY, 120.62108CRY - STOPTECH, CENTRIC PARTS
12662140SR, 126.62140SR - STOPTECH, CENTRIC PARTS
41240DL - DURALAST, AUTOZONE
12762108R, 127.62108R - STOPTECH, CENTRIC PARTS
12062108, 120.62108 - CENTRIC PARTS, WAGNER BRAKE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (15)vehicles
All
Buick
Cadillac
Chevrolet
2014 - 2015BuickRegal
2010 - 2013CadillacCTS
2014 - 2014CadillacCTS
2008 - 2008CadillacCTS
2014 - 2014CadillacCTS
2014 - 2014CadillacCTS
2020 - 2021ChevroletCorvette
2014 - 2014CadillacCTS
2014 - 2014CadillacCTS
2009 - 2009CadillacCTS
2022 - 2023ChevroletCorvette
2016 - 2017BuickRegal
2014 - 2014CadillacCTS
2011 - 2017ChevroletCaprice
2013 - 2019CadillacXTS
