Raybestos

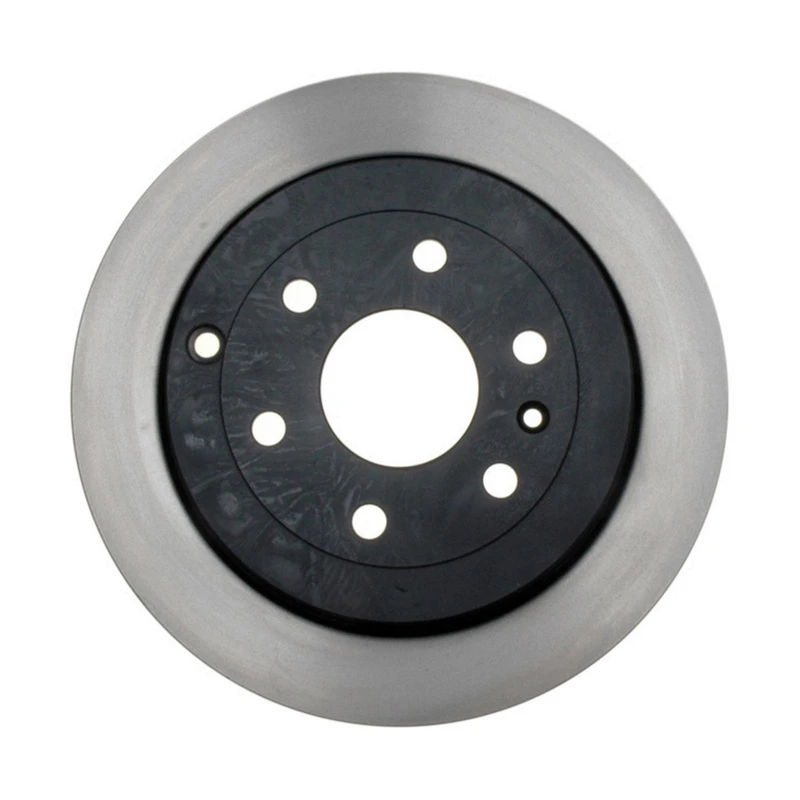

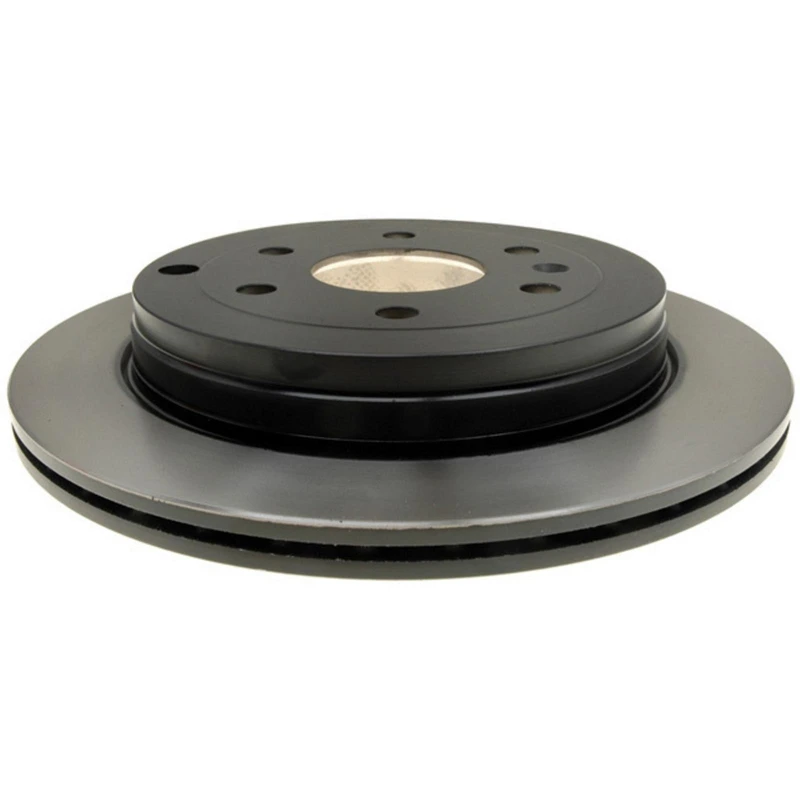

Raybestos 580569 Brake Rotor Rear Side

Part # 580569
Item # 1000VSL1
$95.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.98
Center Hole Diameter (mm)
75.7
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.724
Discard Thickness (mm)
18.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.197
Mounting Bolt Hole Circle Diameter (mm)
132
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
0.787
Nominal Thickness (mm)
20
Outside Diameter (in)
13.031
Outside Diameter (mm)
331
Overall Height (in)
2.1
Overall Height (mm)
53.35
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
22768973 - GENERAL MOTORS, OEM PART NUMBER, SATURN, BUICK, GMC, CHEVROLET
55151, 5-5151 - EUROROTOR, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
25858784 - GENERAL MOTORS, OEM PART NUMBER, SATURN, CHEVROLET
41233, 41-233 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
10391043 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12066070, 120.66070 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BR900378 - DURAGO, DURA CORP
900378 - DURAGO, PARTS MASTER
YH145749 - CARQUEST, ADVANCE AUTO PARTS
BD126503 - MONROE BRAKES, WAGNER BRAKE
12666070CSR, 126.66070CSR - STOPTECH, CENTRIC PARTS
2055151, 20-55151 - PROMAX, GEOTECH
12666070CSL, 126.66070CSL - STOPTECH, CENTRIC PARTS
BR55151 - DURAGO, DURA CORP
6620811 - WINHERE, PERFECT STOP
12766070L, 127.66070L - STOPTECH, CENTRIC PARTS
12166070, 121.66070 - CENTRIC PARTS, CTEK
25010701 - BOSCH, BRAKEBEST
22766070L, 227.66070L - STOPTECH, CENTRIC PARTS
12766070R, 127.66070R - STOPTECH, CENTRIC PARTS
PRT5749 - BENDIX PREMIUM, BENDIX
22766070R, 227.66070R - STOPTECH, CENTRIC PARTS
YH145749P - CARQUEST, ADVANCE AUTO PARTS
12666070SL, 126.66070SL - STOPTECH, CENTRIC PARTS
580569PER - RAYBESTOS BRAKES, BRAKEBEST
580569R - RAYBESTOS BRAKES, BRAKEBEST
580569FZN - RAYBESTOS BRAKES, BRAKEBEST
12666070SR, 126.66070SR - STOPTECH, CENTRIC PARTS
BR90037802, BR900378-02 - DURAGO, DURA CORP
32066070, 320.66070 - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Buick
Chevrolet
GMC
Saturn
2007 - 2010SaturnOutlook
2007 - 2016GMCAcadia
2017 - 2017GMCAcadia Limited
2008 - 2017BuickEnclave
2009 - 2017ChevroletTraverse
