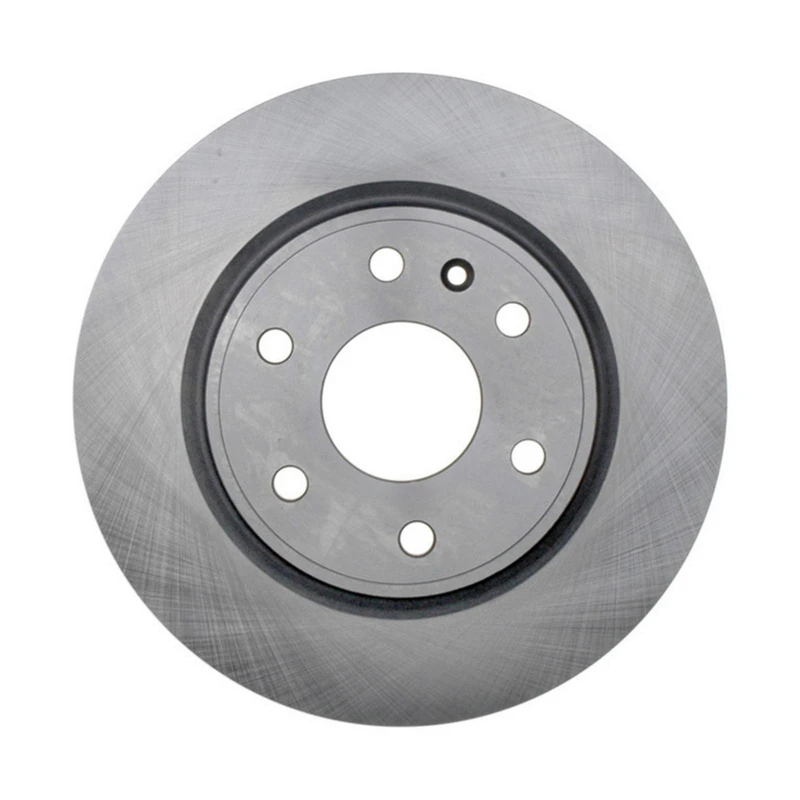

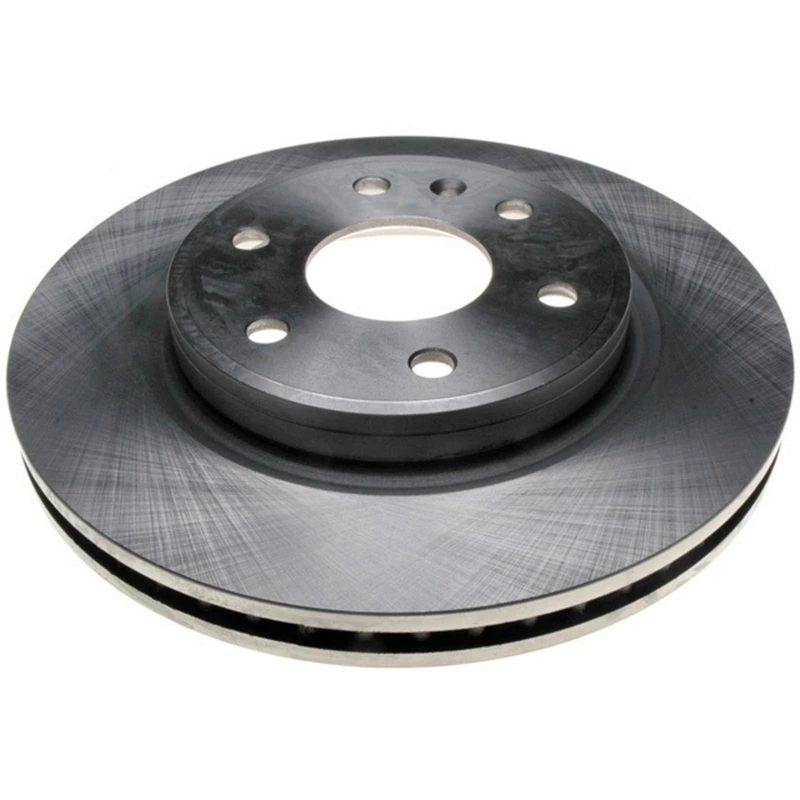

Raybestos 580560R Brake Rotor Front Side
Part # 580560R
Item # 1000XLNP
$78.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.98
- Center Hole Diameter (mm)
- 75.7
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.083
- Discard Thickness (mm)
- 27.5
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 5.197
- Mounting Bolt Hole Circle Diameter (mm)
- 132
- Mounting Bolt Hole Diameter (in)
- 0.61
- Mounting Bolt Hole Diameter (mm)
- 15.5
- Mounting Bolt Hole Quantity
- 6
- Nominal Thickness (in)
- 1.142
- Nominal Thickness (mm)
- 29
- Outside Diameter (in)
- 12.795
- Outside Diameter (mm)
- 325
- Overall Height (in)
- 2.15
- Overall Height (mm)
- 54.6
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 6
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
10390111 - GENERAL MOTORS, OEM PART NUMBER, SATURN, BUICK, GMC, CHEVROLET
25853001 - GENERAL MOTORS, OEM PART NUMBER, SATURN, BUICK, GMC, CHEVROLET
22955495 - GENERAL MOTORS, OEM PART NUMBER, SATURN, BUICK, GMC, CHEVROLET
55150, 5-5150, 55-150 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
41232, 41-232 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
2055150, 20-55150 - UAP, PROMAX, GEOTECH
140775744, 1407-75744 - AI CONVERTER, AUTOPAR, API
12066069, 120.66069 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
580560FZN - RAYBESTOS BRAKES, BRAKEBEST
580560PER - RAYBESTOS BRAKES, BRAKEBEST
YH145748 - CARQUEST, ADVANCE AUTO PARTS
580560R - RAYBESTOS BRAKES, BRAKEBEST
BR90032202, BR900322-02 - DURAGO, DURA CORP
12666069CSR, 126.66069CSR - STOPTECH, CENTRIC PARTS
PRT5748 - BENDIX PREMIUM, BENDIX
BR900322 - DURAGO, DURA CORP
12666069SR, 126.66069SR - STOPTECH, CENTRIC PARTS
12766069CL, 127.66069CL - STOPTECH, CENTRIC PARTS
12666069SL, 126.66069SL - STOPTECH, CENTRIC PARTS
12766069CR, 127.66069CR - STOPTECH, CENTRIC PARTS
22766069R, 227.66069R - STOPTECH, CENTRIC PARTS
22766069L, 227.66069L - STOPTECH, CENTRIC PARTS
580560 - RAYBESTOS BRAKES, BRAKEBEST
12166069, 121.66069 - CENTRIC PARTS, CTEK
YH145748P - CARQUEST, ADVANCE AUTO PARTS
BD126467 - MONROE BRAKES, WAGNER BRAKE
BR55150 - DURAGO, DURA CORP
12866069R, 128.66069R - STOPTECH, CENTRIC PARTS
55387, 5-5387 - EUROROTOR, PAGID RACING
6620713 - WINHERE, PERFECT STOP
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Buick
Chevrolet
GMC
Saturn
| 2007 - 2010 | Saturn | Outlook |
| 2007 - 2016 | GMC | Acadia |
| 2017 - 2017 | GMC | Acadia Limited |
| 2008 - 2017 | Buick | Enclave |
| 2009 - 2017 | Chevrolet | Traverse |
