Raybestos

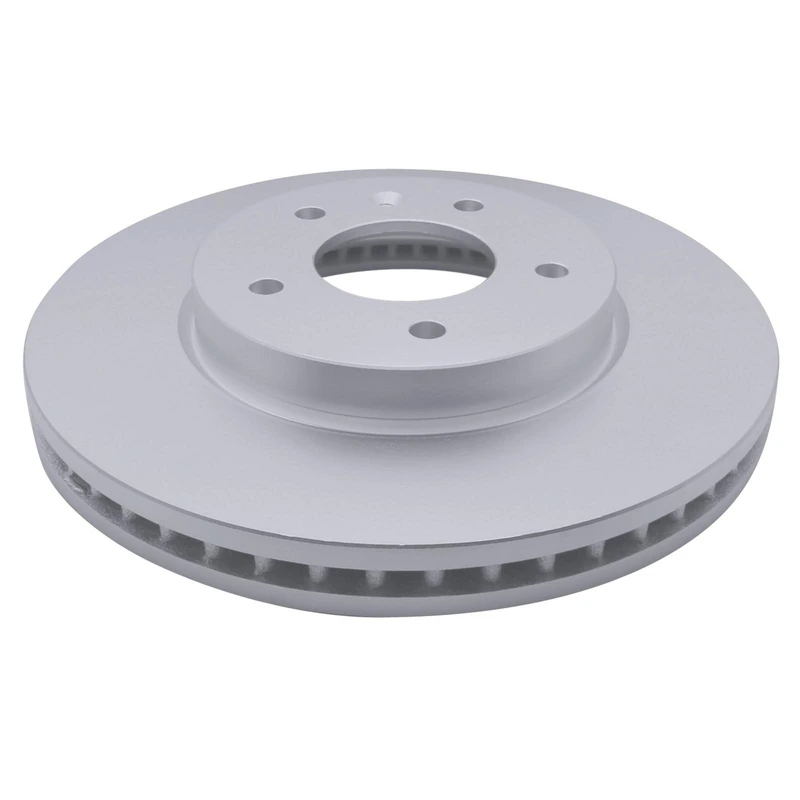

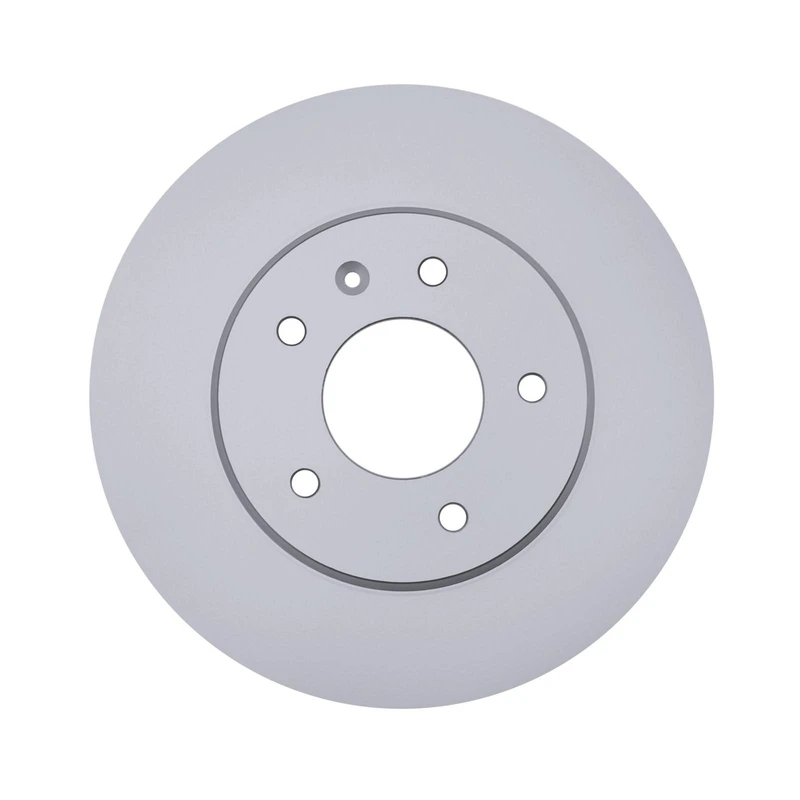

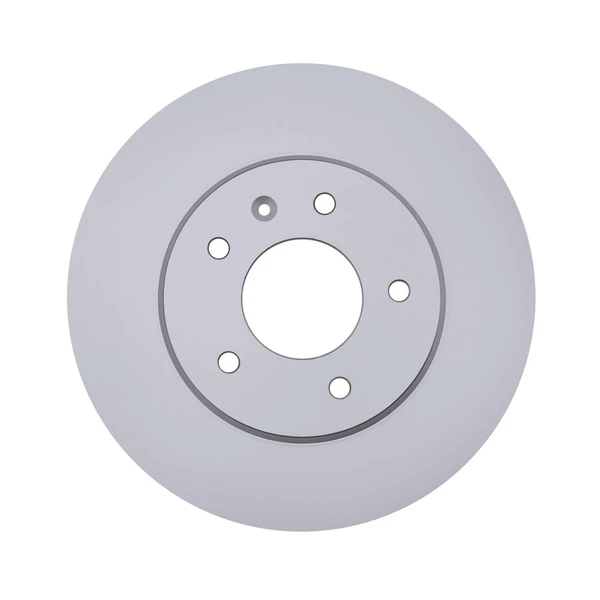

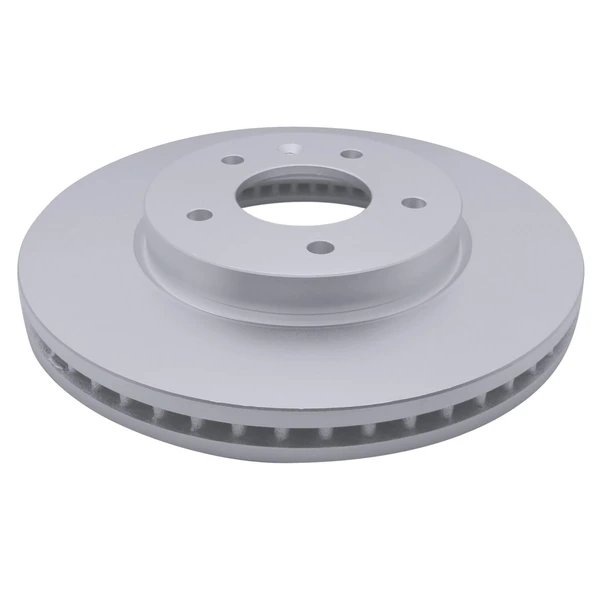

Raybestos 580547FZN Brake Rotor Front Side

Part # 580547FZN
Item # 1000VL78
$84.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.783
Center Hole Diameter (mm)
70.7
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.079
Discard Thickness (mm)
27.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.495
Mounting Bolt Hole Diameter (mm)
12.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.145
Nominal Thickness (mm)
29.1
Outside Diameter (in)
11.651
Outside Diameter (mm)
295.95
Overall Height (in)
2.03
Overall Height (mm)
51.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
580547FZN
083-3428
120.66067
121.66067
126.66067CSL
126.66067CSR
126.66067SL
126.66067SR
127.66067CL
127.66067CR
127.66067L
127.66067R
128.66067L
128.66067R
14-55148
15837488
20-55148
20892949
20955857
25010685
25804049
320.66067
321.66067
326363
41229
41229DG
55148
5521178J00
5521178J01
55301

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Chevrolet
Pontiac
Saturn
Suzuki
2007 - 2009ChevroletEquinox
2008 - 2008ChevroletCaptiva Sport
2011 - 2015ChevroletCaptiva Sport
2007 - 2009PontiacTorrent
2008 - 2010SaturnVue
2007 - 2009SuzukiXL-7
