Raybestos

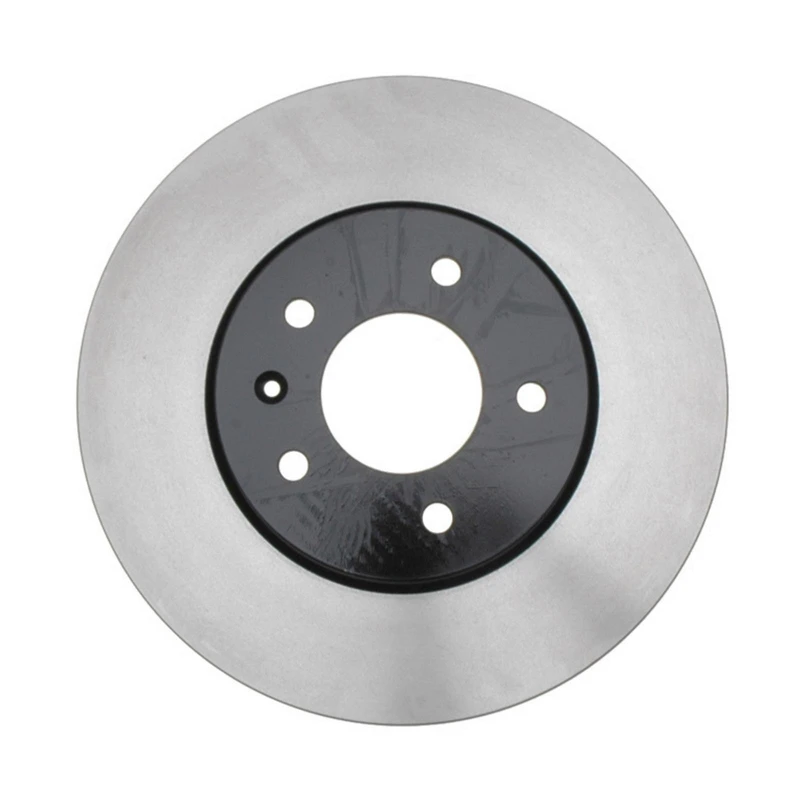

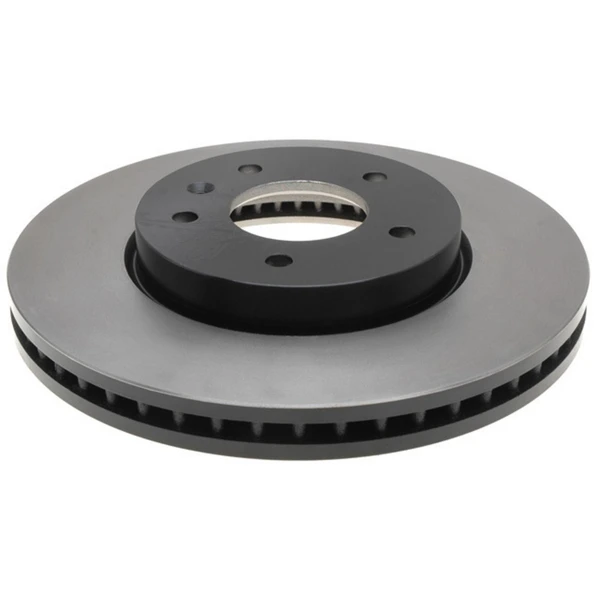

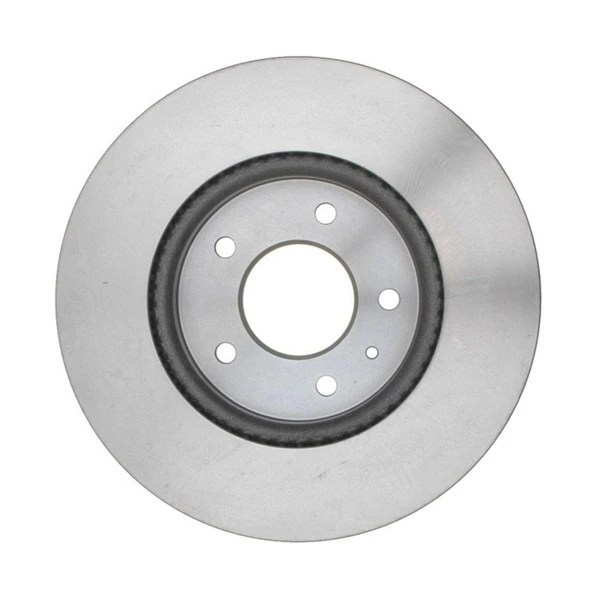

Raybestos 580547 Brake Rotor Front Side

Part # 580547
Item # 1000VKSP
$100.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.783
Center Hole Diameter (mm)
70.7
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.079
Discard Thickness (mm)
27.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.495
Mounting Bolt Hole Diameter (mm)
12.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.145
Nominal Thickness (mm)
29.1
Outside Diameter (in)
11.651
Outside Diameter (mm)
295.95
Overall Height (in)
2.03
Overall Height (mm)
51.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
20955857 - HOLDEN, GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, GMC, CHEVROLET, OPEL
20892949 - GENERAL MOTORS, OEM PART NUMBER, PONTIAC, SATURN, CHEVROLET
25804049 - GENERAL MOTORS, OEM PART NUMBER, SATURN, CHEVROLET
41229, 41-229 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
55148, 5-5148 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
15837488 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12066067, 120.66067 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
5521178J01 - SUZUKI, GENERAL MOTORS, OEM PART NUMBER
5521178J00 - SUZUKI, GENERAL MOTORS, OEM PART NUMBER
YH145693C - CARQUEST, ADVANCE AUTO PARTS
12866067L, 128.66067L - STOPTECH, CENTRIC PARTS
PRT5693 - BENDIX PREMIUM, BENDIX
BR90032002, BR900320-02 - DURAGO, DURA CORP
12866067R, 128.66067R - STOPTECH, CENTRIC PARTS
BR900320 - DURAGO, DURA CORP
12766067CL, 127.66067CL - STOPTECH, CENTRIC PARTS
12666067SR, 126.66067SR - STOPTECH, CENTRIC PARTS
12766067CR, 127.66067CR - STOPTECH, CENTRIC PARTS
12666067SL, 126.66067SL - STOPTECH, CENTRIC PARTS
BD126479 - MONROE BRAKES, WAGNER BRAKE
580547R - RAYBESTOS BRAKES, BRAKEBEST
12766067L, 127.66067L - STOPTECH, CENTRIC PARTS
2055148, 2055-148, 20-55148 - PROMAX, GEOTECH
12766067R, 127.66067R - STOPTECH, CENTRIC PARTS
AX900320 - AUTO EXTRA, AUTOXTRA
12166067, 121.66067 - CENTRIC PARTS, CTEK
BR55148 - DURAGO, DURA CORP
580547FZN - RAYBESTOS BRAKES, BRAKEBEST
25010685 - BOSCH, BRAKEBEST
6620717 - WINHERE, PERFECT STOP

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Chevrolet
Pontiac
Saturn
Suzuki
2007 - 2009ChevroletEquinox
2007 - 2009SuzukiXL-7
2011 - 2015ChevroletCaptiva Sport
2008 - 2010SaturnVue
2008 - 2008ChevroletCaptiva Sport
2007 - 2009PontiacTorrent
