Raybestos

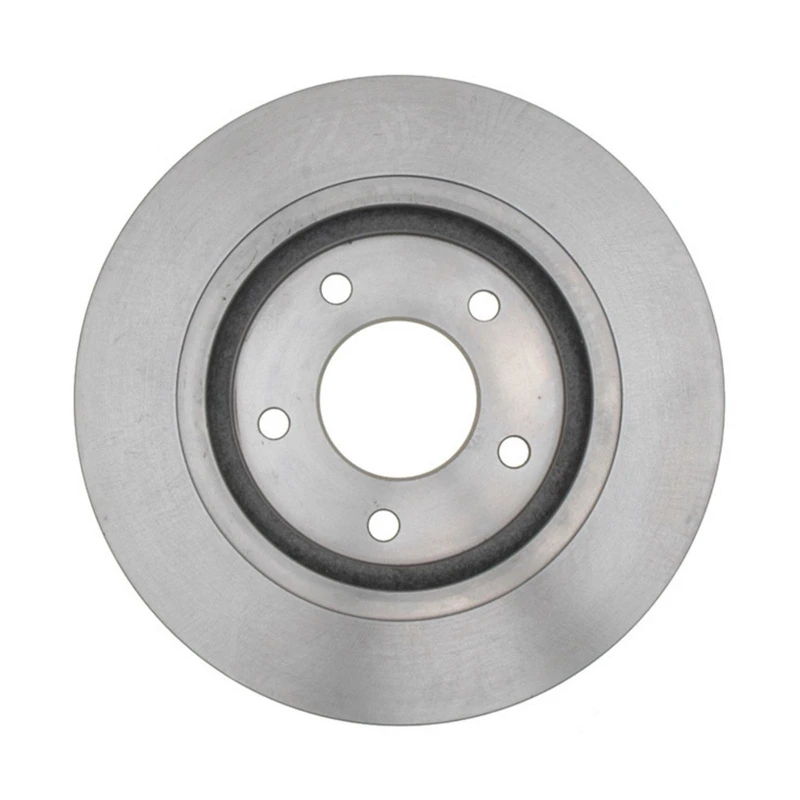

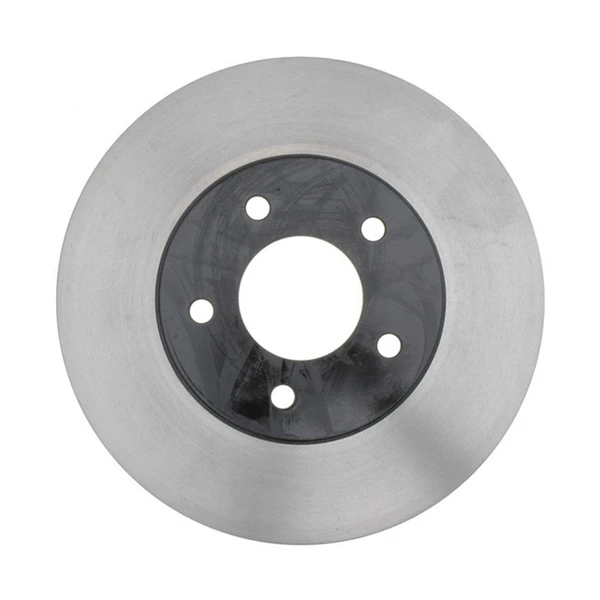

Raybestos 580450 Brake Rotor Front Side

Part # 580450
Item # 1000VNL4
$79.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.783
Center Hole Diameter (mm)
70.7
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.972
Discard Thickness (mm)
24.7
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.518
Mounting Bolt Hole Diameter (mm)
13.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.035
Nominal Thickness (mm)
26.3
Outside Diameter (in)
11.235
Outside Diameter (mm)
285.35
Overall Height (in)
1.484
Overall Height (mm)
37.7
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
18021772 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
18021389 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
19245461 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
55013, 5-5013 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, QUALIS
55141, 55-141, 5-5141 - NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM
12062054, 120.62054 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12762054L, 127.62054L - STOPTECH, CENTRIC PARTS
32062054, 320.62054 - STOPTECH, CENTRIC PARTS
12762054R, 127.62054R - STOPTECH, CENTRIC PARTS
12662054CSR, 126.62054CSR - STOPTECH, CENTRIC PARTS
12662054SR, 126.62054SR - STOPTECH, CENTRIC PARTS
YH145064 - CARQUEST, ADVANCE AUTO PARTS
22762054R, 227.62054R - STOPTECH, CENTRIC PARTS
25010545 - BOSCH, BRAKEBEST
22762054L, 227.62054L - STOPTECH, CENTRIC PARTS
12662054SL, 126.62054SL - STOPTECH, CENTRIC PARTS
12162054, 121.62054 - CENTRIC PARTS, CTEK
580450 - RAYBESTOS BRAKES, BRAKEBEST
12862054CR, 128.62054CR - STOPTECH, CENTRIC PARTS
580450R - RAYBESTOS BRAKES, BRAKEBEST
12862054CL, 128.62054CL - STOPTECH, CENTRIC PARTS
BR55013 - DURAGO, DURA CORP
12662054CSL, 126.62054CSL - STOPTECH, CENTRIC PARTS
BD125470 - MONROE BRAKES, WAGNER BRAKE
52125470, 52-125470 - GUARDIAN, WAGNER BRAKE
177764, 177-764 - DELCOREMY, ACDELCO
12862054R, 128.62054R - STOPTECH, CENTRIC PARTS
12862054L, 128.62054L - STOPTECH, CENTRIC PARTS
32062054F, 320.62054F - CENTRIC PARTS
12562054, 125.62054 - CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Buick
Chevrolet
Oldsmobile
Pontiac
1995 - 1996PontiacGrand Prix
1995 - 1997OldsmobileCutlass Supreme
2001 - 2001ChevroletLumina
1995 - 1999ChevroletMonte Carlo
1995 - 1996BuickRegal
1995 - 2000ChevroletLumina
