Raybestos

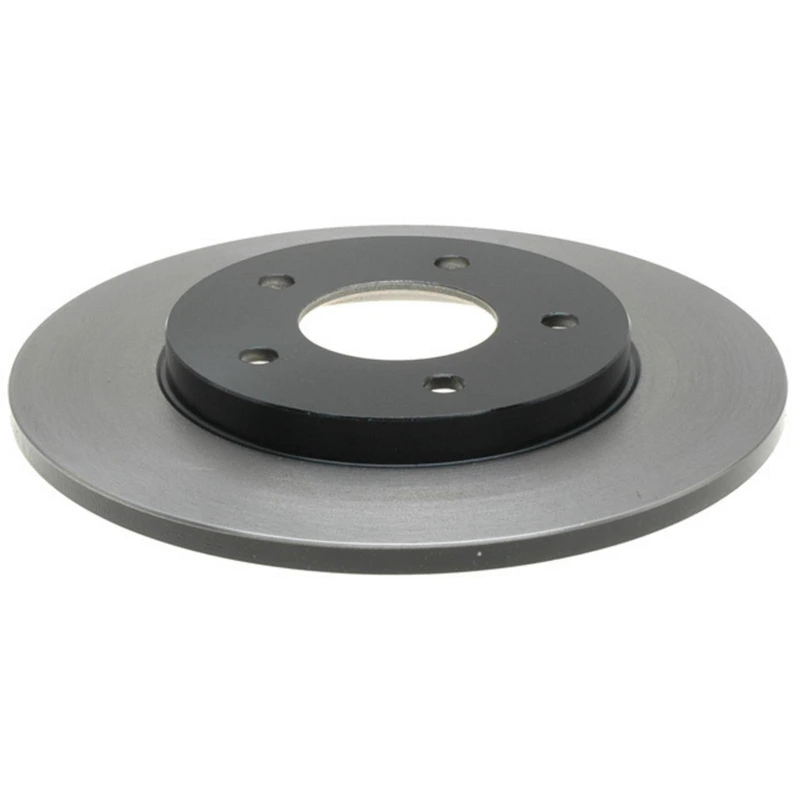

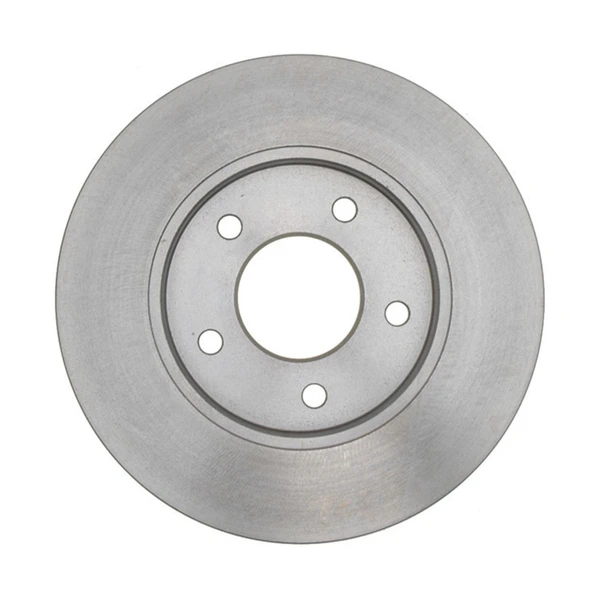

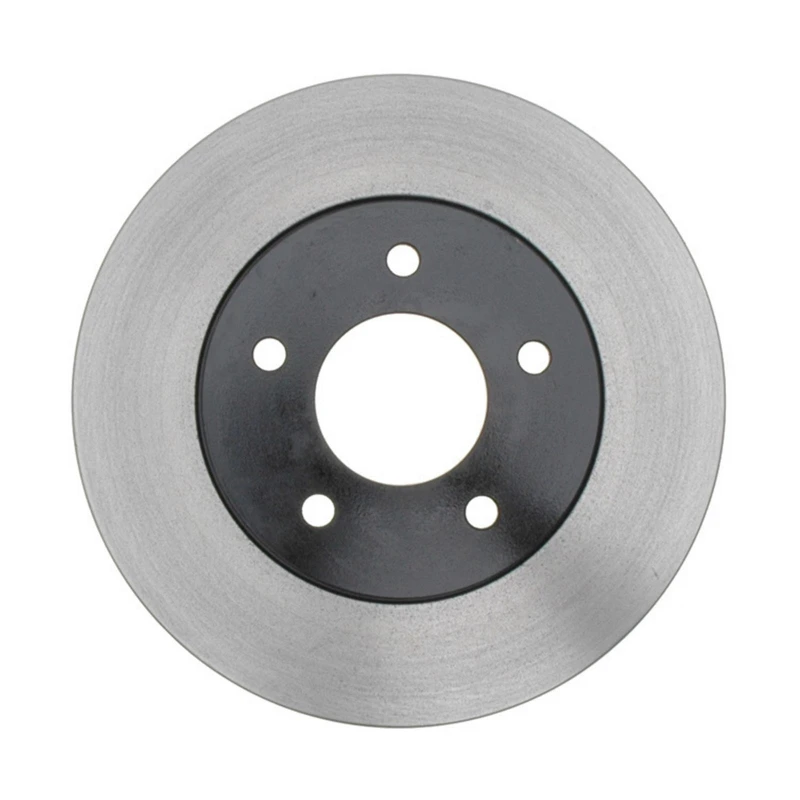

Raybestos 580449 Brake Rotor Rear Side

Part # 580449
Item # 1000VLPD
$58.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.787
Center Hole Diameter (mm)
70.8
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.37
Discard Thickness (mm)
9.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.516
Mounting Bolt Hole Diameter (mm)
13.1
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.435
Nominal Thickness (mm)
11.05
Outside Diameter (in)
10.945
Outside Diameter (mm)
278
Overall Height (in)
1.086
Overall Height (mm)
27.6
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
18060228 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, CHEVROLET
55140, 55-140, 5-5140 - EUROROTOR, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, ULTRA BRAKE
55018, 5-5018 - AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, QUALIS
12062051, 120.62051 - STOPTECH, CANADIAN TIRE, CENTRIC PARTS, WAGNER BRAKE
18020464 - GENERAL MOTORS, OEM PART NUMBER, CASTING NUMBERS
AX55018 - AUTO EXTRA, AUTOXTRA
580449R - RAYBESTOS BRAKES, BRAKEBEST
52125400, 52-125400 - GUARDIAN, WAGNER BRAKE
12662051SR, 126.62051SR - STOPTECH, CENTRIC PARTS
12662051SL, 126.62051SL - STOPTECH, CENTRIC PARTS
12162051, 121.62051 - CENTRIC PARTS, CTEK
12662051CSR, 126.62051CSR - STOPTECH, CENTRIC PARTS
BR55018 - DURAGO, DURA CORP
BD125400 - MONROE BRAKES, WAGNER BRAKE
12662051CSL, 126.62051CSL - STOPTECH, CENTRIC PARTS
125470 - PARTS MASTER, AUTOXTRA
18021042 - GENERAL MOTORS, OEM PART NUMBER
580449 - RAYBESTOS BRAKES, BRAKEBEST
22762051R, 227.62051R - STOPTECH, CENTRIC PARTS
12762051L, 127.62051L - STOPTECH, CENTRIC PARTS
YH141908 - CARQUEST, ADVANCE AUTO PARTS
22762051L, 227.62051L - STOPTECH, CENTRIC PARTS
12762051R, 127.62051R - STOPTECH, CENTRIC PARTS
12562051, 125.62051 - CENTRIC PARTS
493240 - AUTOPAR
Q4047C - QUALITY BRAND
BD125400E - WAGNER BRAKE
580449RGS - BRAKEBEST
DL55140 - AUTOZONE
55018C - QUALITY BRAND

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Buick
Chevrolet
Oldsmobile
Pontiac
1994 - 1996PontiacGrand Prix
1995 - 1999ChevroletMonte Carlo
1994 - 1996BuickRegal
1997 - 1997OldsmobileCutlass
1994 - 1997OldsmobileCutlass Supreme
1995 - 1999ChevroletLumina
