Raybestos

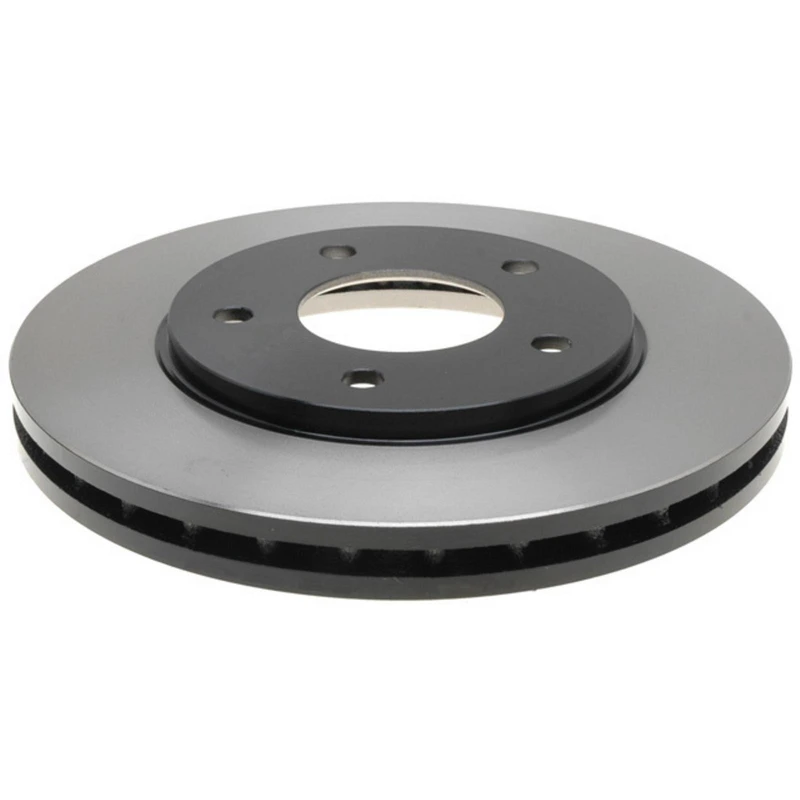

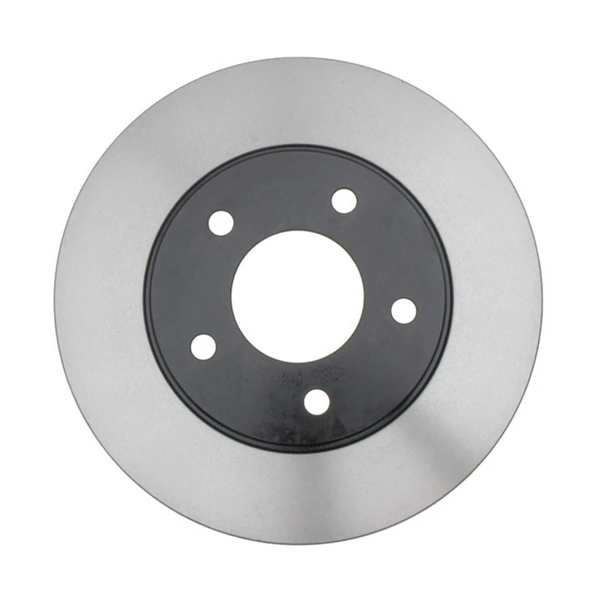

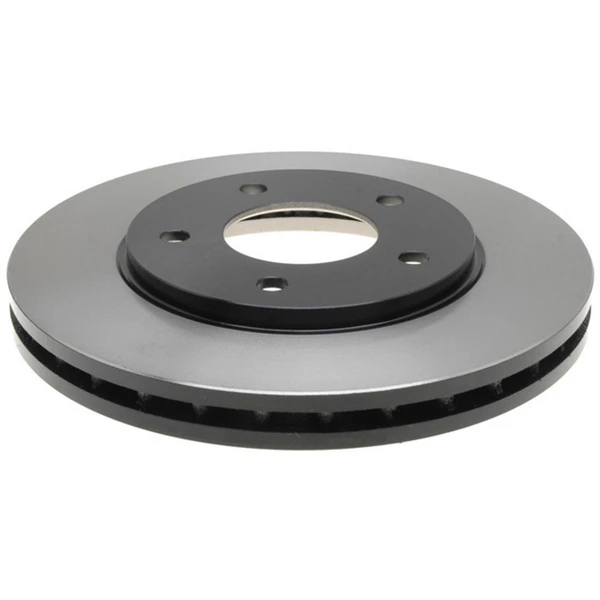

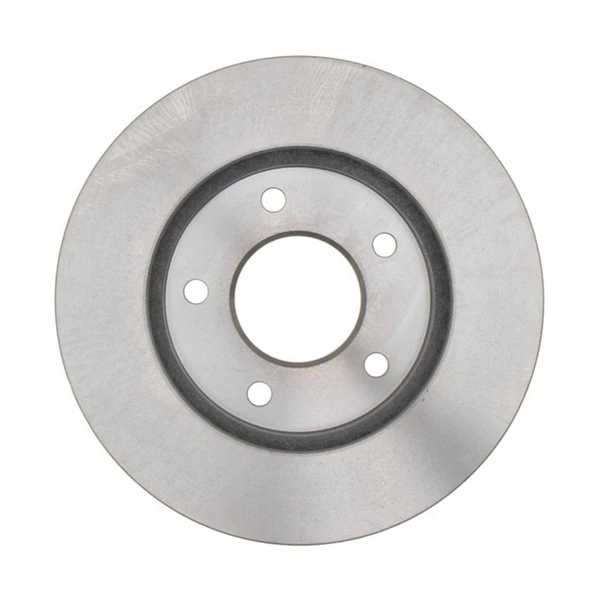

Raybestos 580437 Brake Rotor Front Side

Part # 580437
Item # 1000VLWW
$64.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.787
Center Hole Diameter (mm)
70.8
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.972
Discard Thickness (mm)
24.7
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.507
Mounting Bolt Hole Diameter (mm)
12.9
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.035
Nominal Thickness (mm)
26.3
Outside Diameter (in)
10.5
Outside Diameter (mm)
266.7
Overall Height (in)
1.425
Overall Height (mm)
36.2
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
14094932 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, CHEVROLET
18020470 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, CHEVROLET
5566, 5-566 - AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, QUALIS
12062028, 120.62028 - STOPTECH, CANADIAN TIRE, CENTRIC PARTS, WAGNER BRAKE
55134, 5-5134 - EUROROTOR, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM
22762028R, 227.62028R - STOPTECH, CENTRIC PARTS
22762028L, 227.62028L - STOPTECH, CENTRIC PARTS
12762028R, 127.62028R - STOPTECH, CENTRIC PARTS
61841 - PARTS MASTER, AUTOXTRA
BR5566 - DURAGO, DURA CORP
AX5566 - AUTO EXTRA, AUTOXTRA
12662028SR, 126.62028SR - STOPTECH, CENTRIC PARTS
YH141400 - CARQUEST, ADVANCE AUTO PARTS
12762028L, 127.62028L - STOPTECH, CENTRIC PARTS
580437R - RAYBESTOS BRAKES, BRAKEBEST
5261841, 52-61841 - GUARDIAN, WAGNER BRAKE
12662028CSR, 126.62028CSR - STOPTECH, CENTRIC PARTS
580437 - RAYBESTOS BRAKES, BRAKEBEST
12662028CSL, 126.62028CSL - STOPTECH, CENTRIC PARTS
BD61841 - MONROE BRAKES, WAGNER BRAKE
BR55134 - DURAGO, DURA CORP
12662028SL, 126.62028SL - STOPTECH, CENTRIC PARTS
12162028, 121.62028 - CENTRIC PARTS, CTEK
177737, 177-737 - ACDELCO
12562028, 125.62028 - CENTRIC PARTS
805961 - AUTOXTRA
5566C - QUALITY BRAND
580437RGS - BRAKEBEST
DL55134 - AUTOZONE
32062028F, 320.62028F - CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Buick
Chevrolet
Oldsmobile
Pontiac
1988 - 1995PontiacGrand Prix
1988 - 1994BuickRegal
1990 - 1995ChevroletLumina
1995 - 1995ChevroletMonte Carlo
1995 - 1995OldsmobileCutlass Supreme
1988 - 1994OldsmobileCutlass Supreme
1995 - 1995BuickRegal
